Product Description

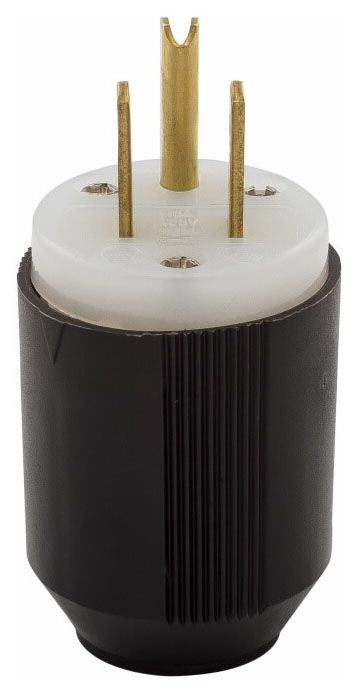

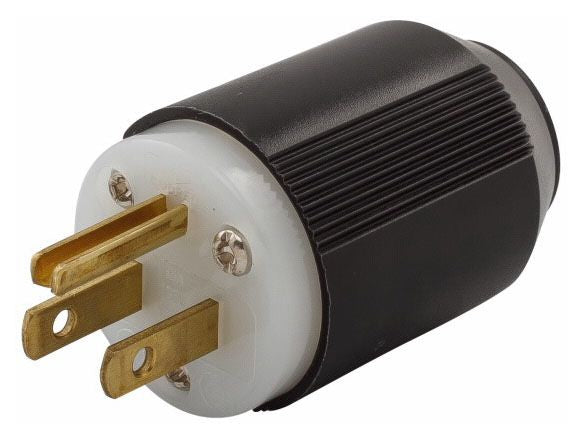

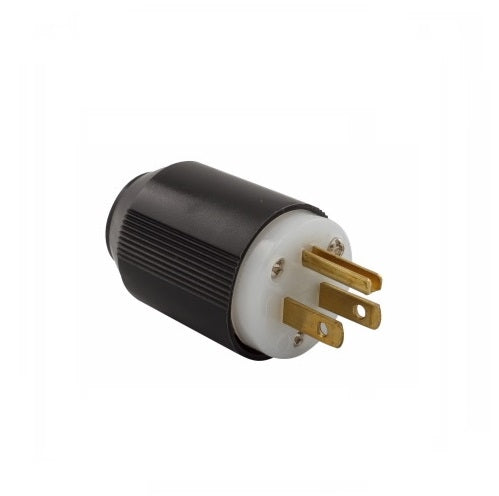

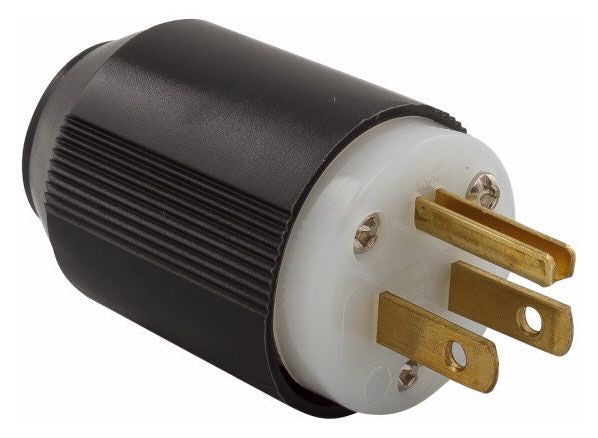

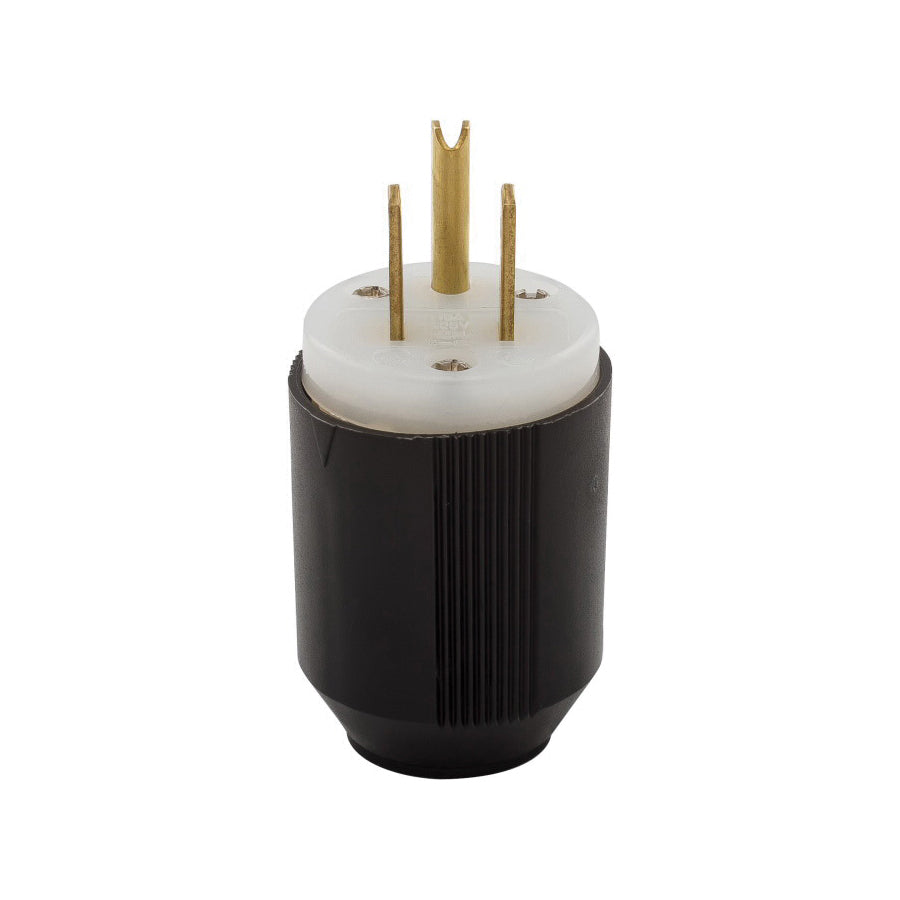

The EATON 5266N is a straight blade plug with a NEMA 5-15P configuration. This industrial grade plug is chemical resistant and suitable for demanding environments. It supports a voltage rating of 125 Volt AC and a current rating of 15 Amp. The plug accommodates wire sizes from 18 to 12 AWG and cord sizes from 0.33 to 0.66 inches.
- Straight Blade Plug
- Chemical Resistant
- NEMA 5-15P Configuration
- UL (Canada and US) Approval
- RoHS Compliant
Product Highlights
Industrial grade straight blade plug with chemical resistance, suitable for 125V/15A applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 5266N
-
Country of Origin: MEX
Technical Specifications
-
Constructional Feature: Chemical Resistant
-
Configuration: NEMA 5-15P
-
Voltage Rating: 125 Volt AC
-
Current Rating: 15 Amp
-
Number of Poles: 2
-
Number of Wires: 3
-
Ground Type: Grounding
-
Cord Size: 0.33 to 0.66 Inch
-
Material: Nylon
-
Grade: Industrial
-
Approval: UL (Canada and US)
-
RoHS Compliant: True
-
Connection Type: Screw
-
Wire Size: 18 to 12 AWG
-
Amperage Rating: 15 A
-
NEMA Rating: NEMA 5-15P
-
Standards/Approvals: UL Listed|cULus Listed|FULs Listed|NOM Certified|Federal Specification 6221 02
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Back Wire/Threaded
-
Product Length/Depth: 1.91 in
-
Product Height: 4.13 in
-
Product Width: 1.78 in
-
Certifications: UL NOM Federal Specification Classification 6221 02
-
Product Type: Auto grip
-
Device type: Plug
-
Special features: AutoGrip
-
Wiring method: Back wire
-
Style type: Straight body
-
Allowable wire size: #18-12 AWG
-
Torque rating: 14 lbf-inch
-
Design type: Straight blade
-
Face/body material: Nylon
-
Receptacle type: Two-pole, three-wire, grounding
-
Brand: Eaton
-
MPN: 5266N
-
Voltage: 125V
-
Device Type: Straight Blade Plug
-
Phase: 1 Phase
-
Poles: 2
-
Wires: 3
-
Installation Area: Indoor
-
Maximum Amperage: 15 Amp
-
Maximum Voltage: 125V
