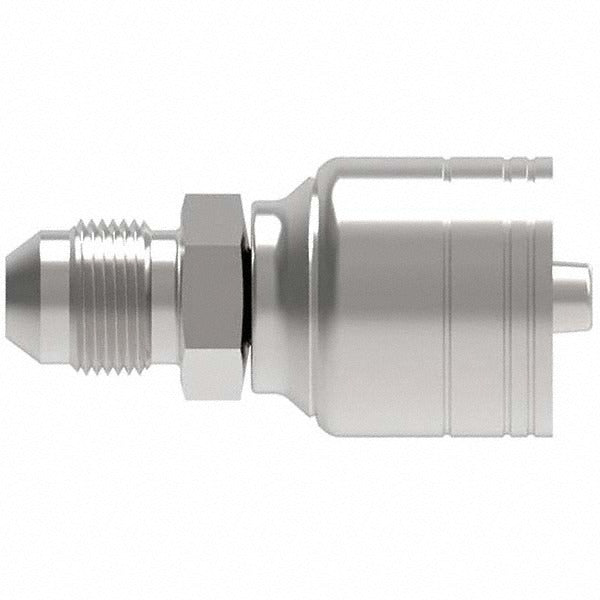

Eaton 4SA24FJ24-BG Female Jic 37 Swivel Fitting 24mm

Product Description

The EATON 4SA24FJ24-BG is a female JIC 37-degree swivel fitting designed for hydraulic hose assemblies. It connects a 24 mm hose to a 1-7/8-12 inch threaded port using a JIC 37-degree flare seat for a reliable, leak-resistant seal. Constructed from steel, this fitting delivers the mechanical strength required for high-pressure hydraulic circuits. The swivel design allows rotational movement during assembly, reducing stress on the hose and making routing easier in tight installations. This fitting is used by hydraulic system technicians, fluid power mechanics, and industrial maintenance professionals working on mobile or stationary hydraulic equipment.

This fitting is suited for hydraulic systems that require a female JIC 37-degree swivel connection at a 1-7/8-12 threaded port with a 24 mm hose end. Common applications include mobile equipment hydraulics, industrial machinery, and high-pressure fluid power circuits where swivel fittings are preferred to allow hose orientation adjustment during assembly. The 2-1/4 inch hex size accommodates standard open-end or combination wrenches used in the field.

Key Features

• Female JIC 37-degree swivel design allows rotational adjustment during assembly to reduce hose twist and stress
• 1-7/8-12 inch thread size for connection to standard JIC-ported components
• Steel construction provides durability for high-pressure hydraulic service
• 24 mm hose size compatibility for proper fit at the hose end
• 2-1/4 inch hex size for use with standard wrenches

Compatibility

Designed as an OEM-style replacement swivel fitting for hydraulic hose assemblies requiring a 24 mm hose size with a 1-7/8-12 inch female JIC 37-degree threaded connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the JIC flare seat and mating port for damage or contamination before assembly. Tighten to the fitting manufacturer and system design specifications using the hex flats — never use the hose or body as a grip point.
