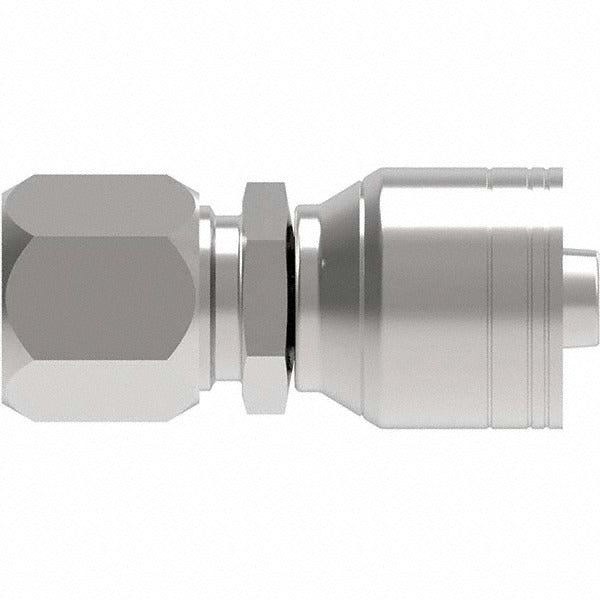

Eaton 4SA12FJ16-BG Female Jic 37 Swivel Hose Fitting

Product Description

The EATON 4SA12FJ16-BG is a female JIC 37-degree swivel hose fitting designed for hydraulic plumbing applications. Constructed from steel, this fitting connects a 16 mm hose end to a 1-1/16-12 JIC-threaded port. The swivel design allows the fitting to rotate during assembly, reducing hose twist and making routing easier in tight installations. At 3.1 inches in length and weighing 1 pound, it is a solid, durable component suited for high-pressure hydraulic lines. Licensed hydraulic technicians and fluid power specialists are the primary installers of this type of fitting in mobile and industrial equipment.

This fitting is used in hydraulic systems where a hose assembly must terminate at a JIC 37-degree female swivel connection. It is appropriate for mobile equipment, agricultural machinery, construction equipment, and industrial fluid power circuits. The 1-1/16-12 thread size is a common SAE straight thread designation found across a wide range of hydraulic valves, cylinders, and manifold ports. Sold individually, this fitting suits replacement and maintenance work as well as new plumbing builds.

Key Features

• Female JIC 37-degree swivel end for leak-resistant flare-seat connections
• 1-1/16-12 thread size compatible with standard SAE JIC ports
• 16 mm hose size for proper hose-end fitment
• Steel construction for strength in high-pressure hydraulic service
• Swivel body reduces hose twist during installation and torquing

Compatibility

Designed as an OEM-style replacement fitting for hydraulic hose assemblies requiring a female JIC 37-degree swivel connection at a 1-1/16-12 threaded port with 16 mm hose size.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or installing any fittings. Hand-thread the fitting to confirm proper thread engagement before applying final torque with an appropriate open-end or crowfoot wrench. Inspect mating flare seats for damage before assembly to ensure a leak-free connection.
