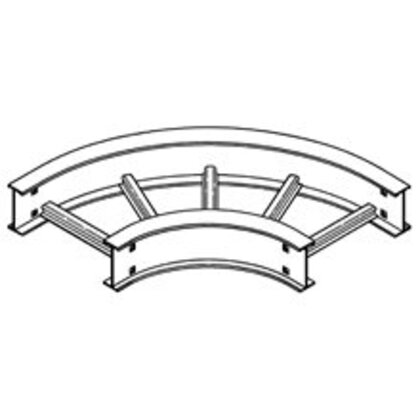

Eaton 4A-12-90HB12 B-Line Series Horizontal Bend 90 deg

Product Description

The Eaton 4A-12-90HB12 is a B-Line series horizontal bend. Constructed from aluminum, this fitting is designed for cable ladder tray systems. It measures 4 inches in height and has a 90-degree bend angle with a 12-inch radius. It is suitable for commercial, datacomm, and industrial applications.

• Horizontal bend
• Aluminum construction
• 90-degree bend angle

Product Highlights

This Eaton B-Line series horizontal bend is ideal for cable ladder tray systems requiring a 90-degree turn.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 4A-12-90HB12
• Country of Origin: US - United States

Technical Specifications

• Catalog Number: 4A-12-90HB12
• UPC: 781011154073
• Product Length/Depth: 21.0625 in
• Product Height: 4 in
• Product Width: 12 in
• Certifications: CE, UL Classified, CSA
• Product Type: Horizontal bend
• Material: Aluminum
• Type: Series 2-5 horizontal bend
• Angle: 90 Degree
• Radius: 12 in
• Siderail Height - nominal: 4 in.
• Rung Spacing: 9.00 in
• Overall Height: 4.000 in
• Brand: Cooper Industries, LLC
• Used With: Series 2, 3, 4 and 5 Metallic Cable Tray Fittings
• Height: 4 Inch
• Length: 21-1/16 Inch
• ECCN: EAR99
• UNSPSC: 39131705
• Application: Commercial, Datacomm, Industrial
• Use With: 2, 3, 4, 5 Series 12 inches Width Cable Tray
• Bend Radius: 12 in
• Fitting Type: 90 Degree Horizontal Bend
• Depth: 4 in
