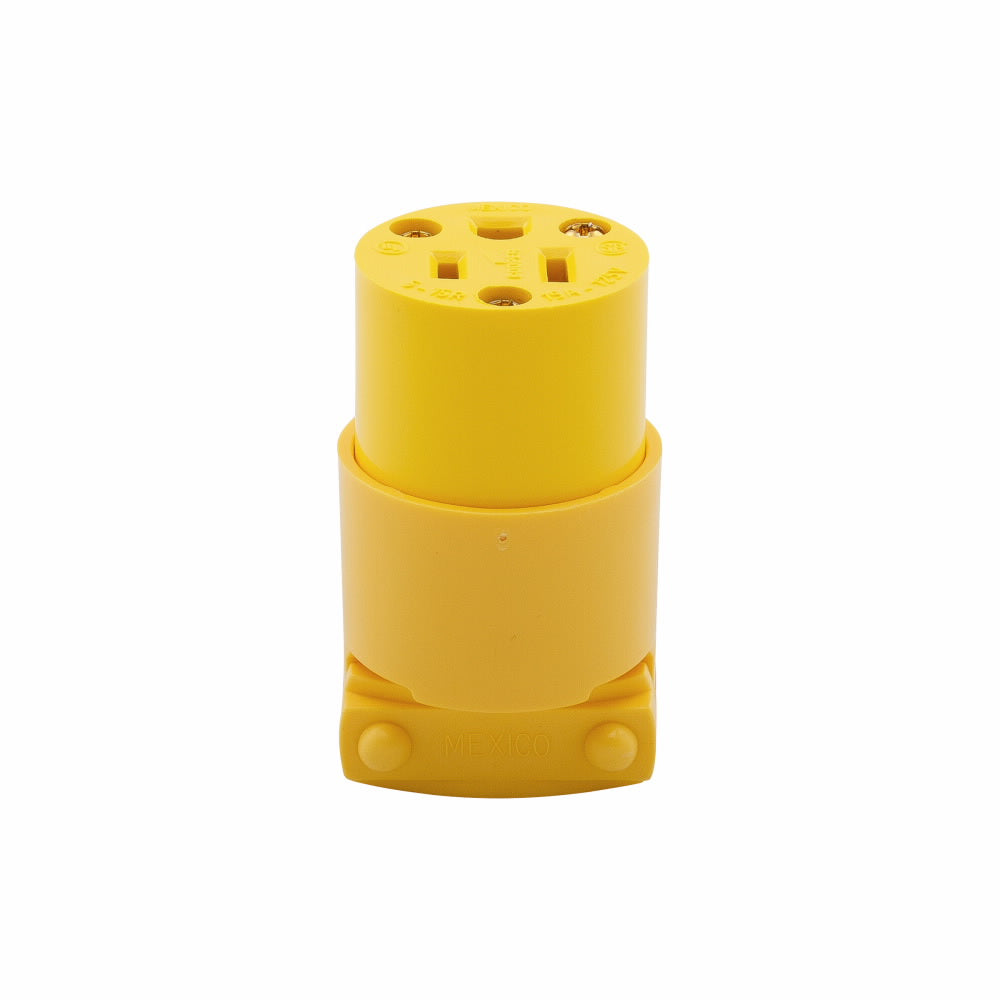

Eaton 4887-BOX CWD Female 15A Straight Blade Connector

Product Description

Eaton 4887-BOX CWD Female 15A is a straight blade connector designed for commercial and specification applications. This connector operates at 125 VAC and is rated for 15 A with two poles and three wires. The NEMA 5-15R rating ensures compatibility with standard outlets. The cord diameter can range from 0.25 inches to 0.66 inches, making it versatile for various cord types.

• Solid brass plug blades are embedded in the body for durability.
• Vinyl construction provides resistance to chemicals and low temperature brittleness.
• Designed for easy wiring with terminal screws that are prepped and ready.

Product Highlights

Ideal for a range of electrical applications, the Eaton 4887-BOX connector features a vinyl exterior that withstands harsh conditions and a reliable back wire/plug terminal for secure connections.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Type: Straight Blade Connector

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -4 to 120 degrees F
• Cord Diameter: 0.25 to 0.66 inches
• Dimensions: 2.61 inches L x 1.54 inches W x 1.5 inches H
