Eaton 458BD-BOX Switch Canopy Sp Pullchain 3/1A 125/250V

Product Description

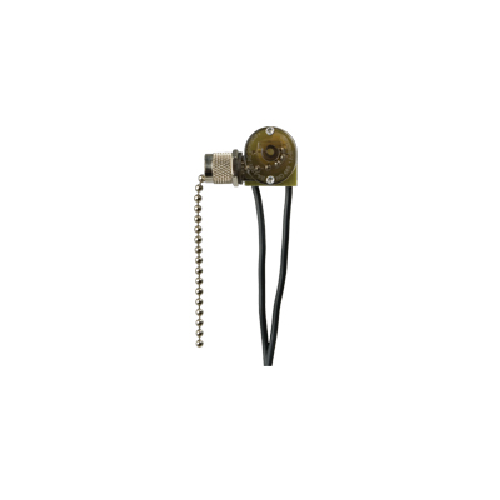

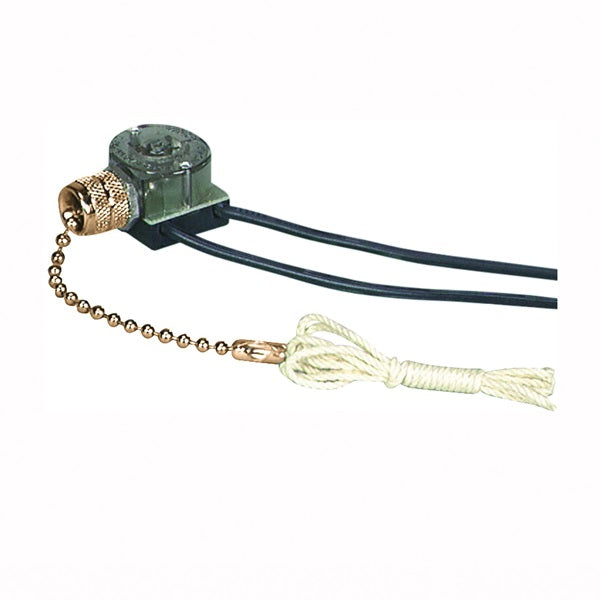

The EATON 458BD-BOX is a single-pole canopy switch designed for various electrical applications. This pull chain switch operates at 125/250 VAC with an amperage rating of 1/3 A. It features a 15/32-32 threaded shank for secure mounting and comes with wire lead connections, making it suitable for fixtures, appliances, and equipment. The switch is UL Listed and CSA Certified, ensuring compliance with safety standards.

• Features a 1/3 A amperage rating at 125/250 VAC.
• Equipped with 18 AWG 6-inch wire leads for connection.
• Designed with a 15/32-32 threaded shank for installation.

Product Highlights

This EATON 458BD-BOX canopy switch offers a single-pole, pull chain ON/OFF sequence, ideal for fixtures, appliances, and equipment.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 458BD-BOX

Technical Specifications

• MPN: 458BD-BOX
• Brand: EATON
• Contact Configuration: SP
• Amperage Rating: 1/3 A
• Connection Type: Wire Lead
• Operating Temperature: -40 to 65 deg F
• Color: Nickel
• Voltage Rating: 125/250 VAC
• Number of Poles: 1
• Certifications: CSA C22.2, NOM Certified, RoHS Complaint, UL Listed
• Switch Type: Canopy
• Material: Polycarbonate
• Actuator Type: Pull Chain
• Circuit Type: Single-pole
• Wire Gauge: 18 AWG
• Functions: ON/OFF
• Shank Thread Size: 15/32-32 x 15/32 in
• Application: For fixtures, appliances and doorways use
