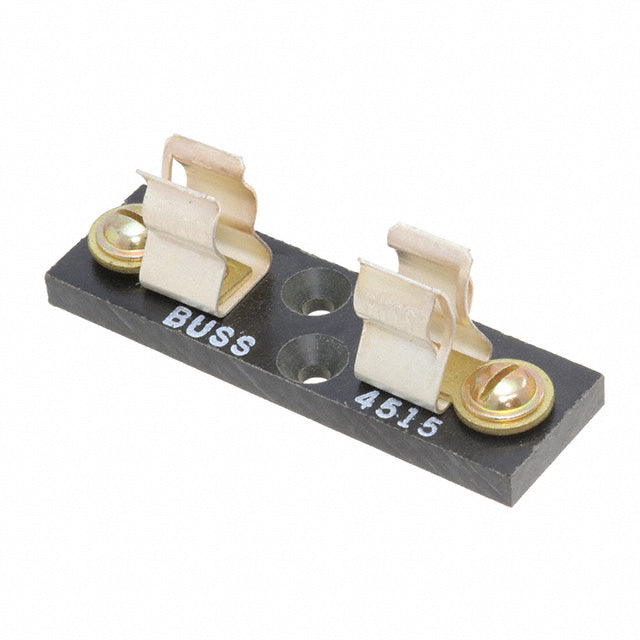

Eaton 4515 Fuse block 30 A 250 V (1 circuit)

Product Description

Eaton 4515 is a single-circuit cartridge fuse block rated 30 A at 250 V for chassis-mount applications. It accepts 5AG (13/32 in x 1-1/2 in; 10 mm x 38 mm) cartridge/midget fuses and provides screw terminal termination on a phenolic body. The device is suitable for panel and equipment fuse holder installations where a compact single-pole fuse block with RoHS3 compliance is required.

• Rated 30 A at 250 V for one circuit; accepts 5AG (10 mm x 38 mm) cartridge fuses
• Chassis-mount phenolic fuse block with screw terminal termination
• RoHS3 compliant; catalog/part number 4515

Product Highlights

Chassis-mount single-circuit cartridge fuse block, 30 A at 250 V, accepts 5AG (13/32 x 1-1/2 in) fuses; screw terminal connections; RoHS3 compliant.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 4515

Technical Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: 4515
• Description: Fuse block 30 A 250 V 1 circuit cartridge chassis mount
• Category: Circuit Protection
• Subcategory: Fuseholders
• Number of Circuits: 1
• Number of Poles: 1
• Mounting Type: Chassis mount
• Fuse Type: Cartridge (5AG / midget)
• Fuse Size: 5AG (13/32 in x 1-1/2 in / 10 mm x 38 mm)
• Current Rating: 30 A
• Voltage Rating: 250 V
• Termination Style: Screw terminal
• Material: Phenolic
• Dimensions: 2.5 in L x 0.897 in H x 0.6 in W (estimated)
• Certifications: RoHS3 compliant; CE (reported)
• REACH Status: REACH Unaffected
