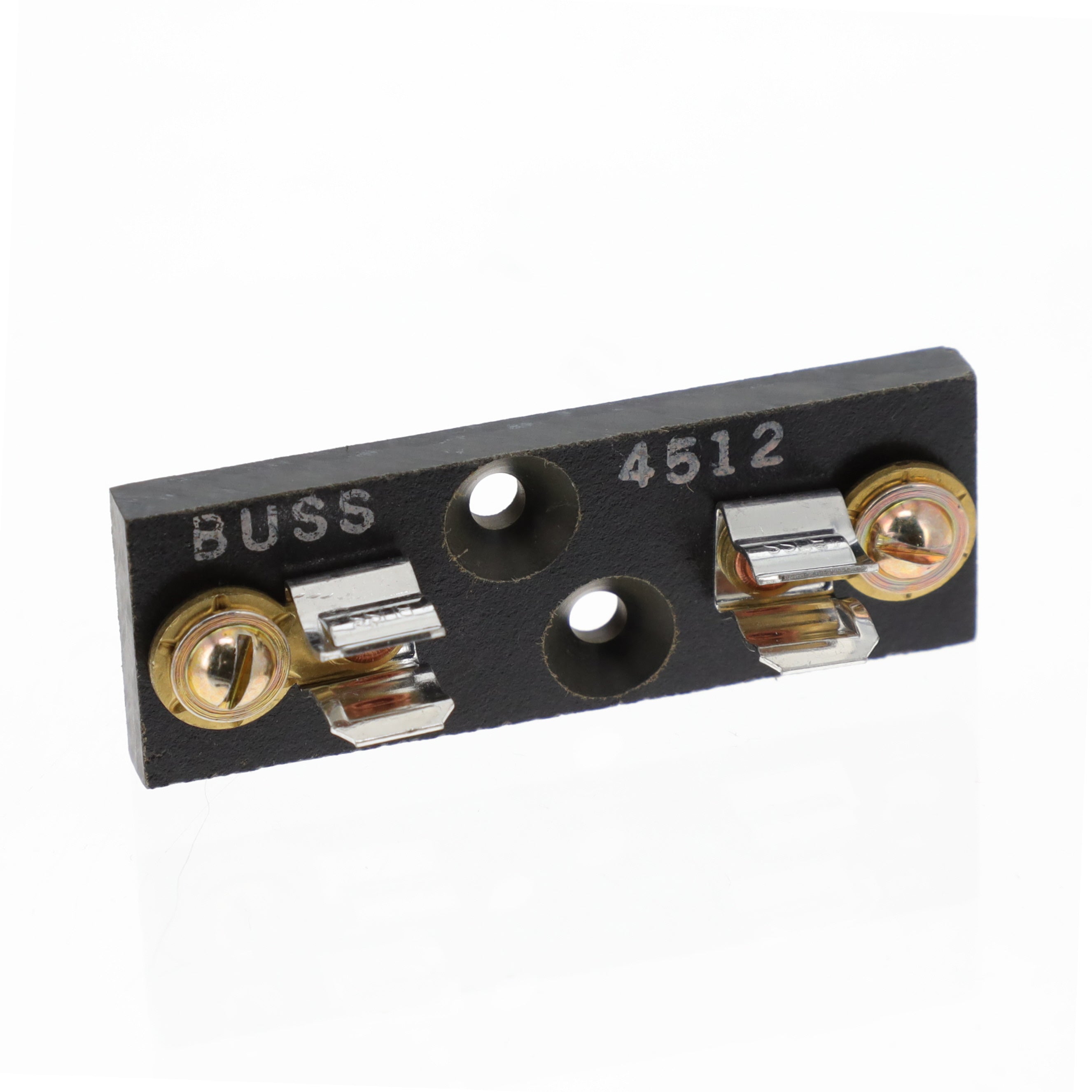

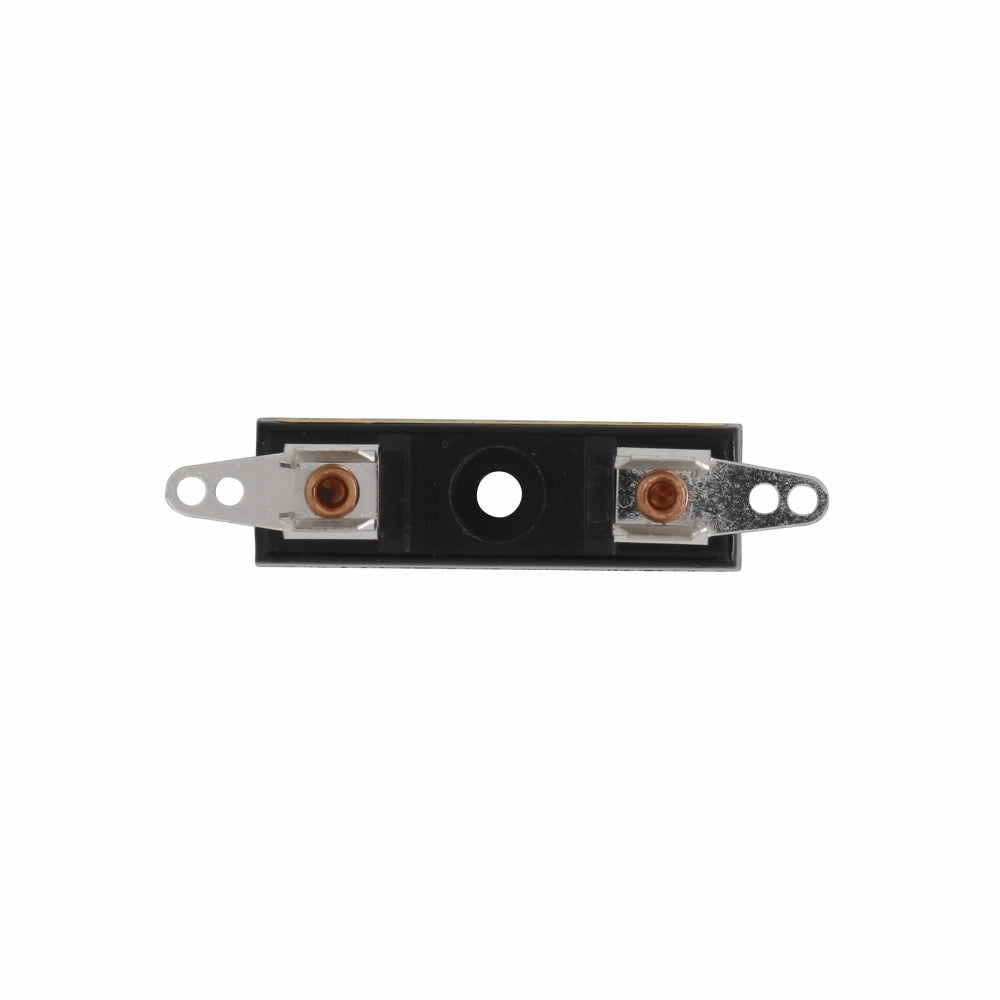

Eaton 4512 Bussmann fuse block 1 pole 1-1/4 in (4512BS1)

Product Description

Eaton 4512 is a single-pole Bussmann-style fuse block designed for chassis mounting with screw connection termination. It accepts cartridge fuses with a 1-1/4 inch length and 1/4 inch diameter and supports horizontal or vertical orientation. Termination uses a screw terminal with a pressure plate and the holder is RoHS compliant, suitable for circuit protection in control panels and electronic equipment.

• Single-pole chassis-mount cartridge fuse holder accepting 1-1/4 in length and 1/4 in diameter fuses
• Screw terminal termination with pressure plate; supports horizontal and vertical mounting
• RoHS compliant; alternate manufacturer part number 4512BS1; cartridge fuse type

Product Highlights

Single-circuit chassis-mounted cartridge fuse holder with screw terminal and pressure plate; accepts 1-1/4 in x 1/4 in fuses; RoHS compliant.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 4512

Technical Specifications

• Manufacturer Part Number: 4512
• Brand: Eaton
• Number of Poles: 1
• Connection Type: Screw
• Termination Style: Screw terminal, pressure plate
• Fuse Length: 1-1/4 in
• Fuse Diameter: 1/4 in
• Fuse Type: Cartridge
• Mounting Type: Chassis mount
• Orientation: Horizontal and vertical
• RoHS Status: RoHS Compliant
• Alternate Manufacturer Part Number: 4512BS1
• Part Aliases: 4512BS1, 4512EB
• DigiKey Part Number: 4512EB-ND
• Category: Circuit Protection
• Subcategory: Fuseholders
• Weight: 0.04 lbs
