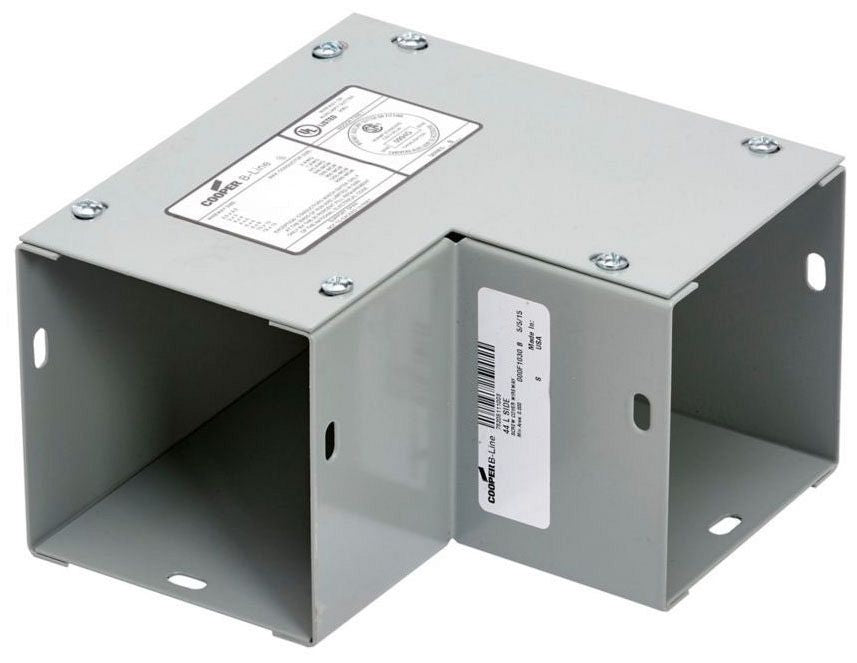

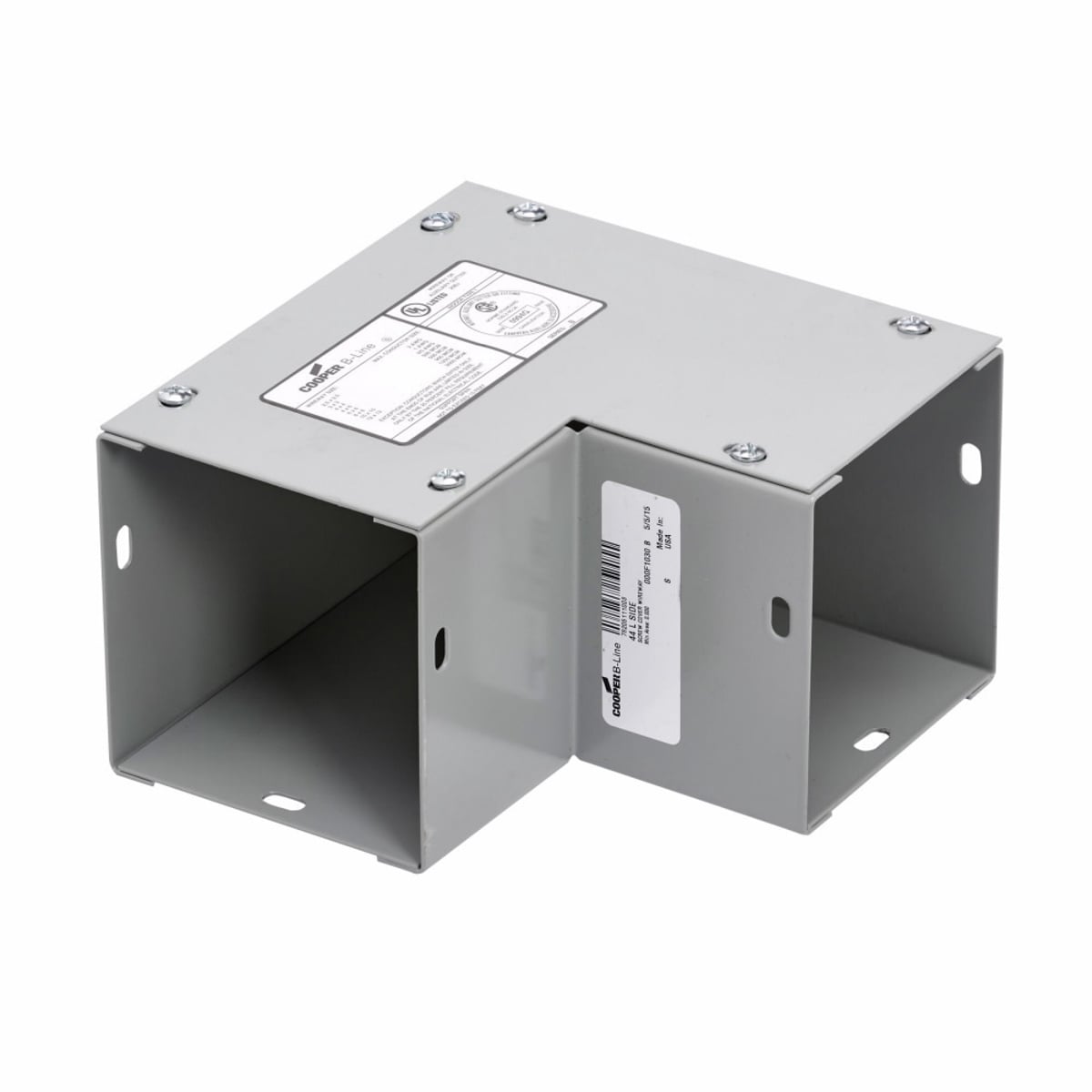

Eaton 44LSIDE Wireway elbow fitting 90-degree (4 in x 4 in)

Product Description

The Eaton 44LSIDE is a lay-in wireway elbow fitting that provides a 90-degree turn with a side opening for routing conductors in wireway installations. It is constructed of galvanized steel and is NEMA 1 rated for general indoor use. The fitting is sized for a 4 in x 4 in wireway cross section and is intended to house control and power cable runs, junctions, distribution, and terminations.

• Lay-in wireway elbow with side opening for easy conductor access
• 90-degree bend designed for 4 in x 4 in wireway runs; constructed of galvanized steel
• NEMA 1 rated enclosure for general indoor control and power cable routing; suitable for junctions, distribution, and termination

Product Highlights

Lay-in 90-degree wireway elbow, side opening, galvanized steel, NEMA 1, 4 in x 4 in

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 44LSIDE
• Country of Origin: USA

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: 44LSIDE
• Product Type: Wireway elbow fitting
• Wiring Method: Lay-in
• Bend Angle: 90 degree
• Opening: Side opening
• Size (Cross Section): 4 in x 4 in
• Width: 4 in
• Height: 4 in
• Length/Depth: 7.09 in
• Material: Galvanized steel
• Finish: Galvanized steel
• Enclosure Rating: NEMA 1
• Cover Type: Screw
• Series: B-Line (AK1)
• Applications: Houses runs of control and power cable; cable and wire junctions; distribution and termination
• Certifications/Approvals: UL 870; CSA C22.2
• Applicable Standards: IEC 529
• Country of Origin: USA
• Weight: 2.916 lb
