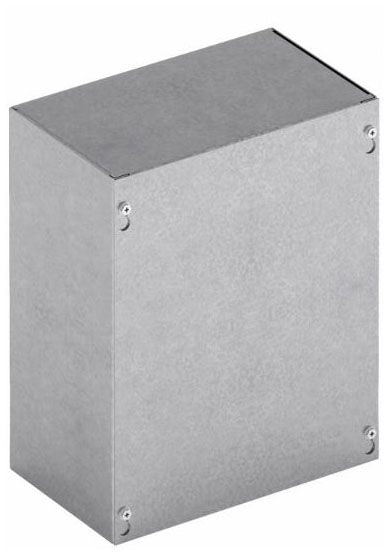

Eaton 444SCGVNK B-Line Series Indoor Junction Box 4x4x4 Inch

Product Description

The EATON 444SCGVNK is an indoor junction box from the B-Line Series, designed for electrical wiring and pull box applications. This unflanged steel enclosure measures 4 inches in height, width, and depth. It features a galvanized, acrylic electrocoated finish and provides NEMA 1 and IP20 protection, suitable for indoor environments. The unit is wall-mountable and includes a screw-on cover for secure access. It holds UL 50, CSA C22.2, and IEC 529 approvals.

• Constructed from 16 gauge steel with a galvanized, acrylic electrocoated finish.
• Provides NEMA 1 and IP20 enclosure protection for indoor service.
• Designed for wall mounting with a secure screw-on cover.

Product Highlights

Durable 16 gauge galvanized steel indoor junction box with NEMA 1/IP20 protection and screw-on cover for wiring and pull box applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 444SCGVNK
• Country of Origin: USA

Technical Specifications

• Junction Box Type: Type 1 junction box
• Material: Steel
• Material Gauge: 16 Gauge
• Finish: Galvanized, Acrylic Electrocoated Over Phosphatized Surface
• Enclosure Rating: NEMA 1, IP20
• Mounting Type: Wall Mount
• Cover Type: Screw-On
• Service Type: Indoor
• Approvals: UL 50, CSA C22.2, IEC 529
• Application: Wiring Boxes, Junction and Pull Boxes
• Number of Doors: 1
• Window/Clear Cover: No
• Panel Included: No
• Knockout: No
• Series: B-Line
• Enclosure Model: SCGV NK
• Holes: Thru holes
