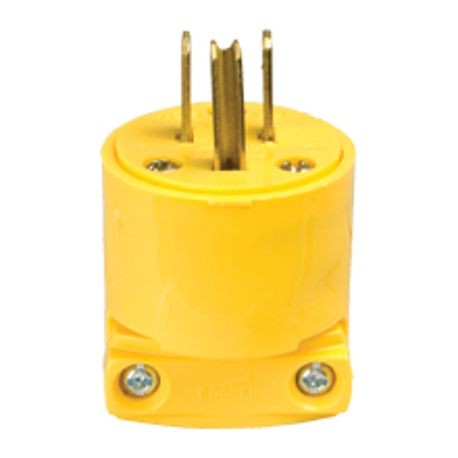

EATON 4409-BOX Grounding Straight Blade Plug 250 VAC 20 A

Product Description

The EATON 4409-BOX is a grounding straight blade plug designed for use in commercial applications. This device operates at 250 VAC and supports 20 A with two poles and three wires. Its robust construction includes solid brass blades firmly embedded in a thermoplastic vinyl body.

• Grounding straight blade plug with solid brass blades
• Rated for 250 VAC and 20 A
• Terminal screws backed out and ready for wiring

Product Highlights

The EATON 4409-BOX offers a reliable solution for electrical connections where durability and safety are essential. Each terminal is insulated to prevent short circuits, and the design promotes ease of installation.

Product Information

Standard Information

• Brand: EATON
• MPN: 4409-BOX

Technical Specifications

• Material: Vinyl
• Color: Yellow
• Dimensions: 1.54 inches Diameter
• Terminal Type: Screw
• GTIN: 00032664336409
• NEMA Rating: NEMA 5-20P
• Amperage Rating: 20 A
• Number of Wires: 3
• Grade: Commercial
• Cord Diameter: 0.25 - 0.66 inches
• Temperature Rating: -20 to 60 degrees Celsius
• Voltage Rating: 250 VAC
• Number of Poles: 2
• UPC: 032664336409
• Minimum Order Quantity: 1
• UNSPSC: 39121402
• Standard & Approvals: CSA Certified, NOM Certified (426), RoHS Compliant, UL listed
