Eaton 3TA402K Molded Case Circuit Breaker Line and Load Terminal 400 A (500-750 kcmil)

EATON
Brand: EATON
SKU: 3TA402K
Availability: In Stock

Ships same day if ordered by 12 pm
$195.30
$195.30
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

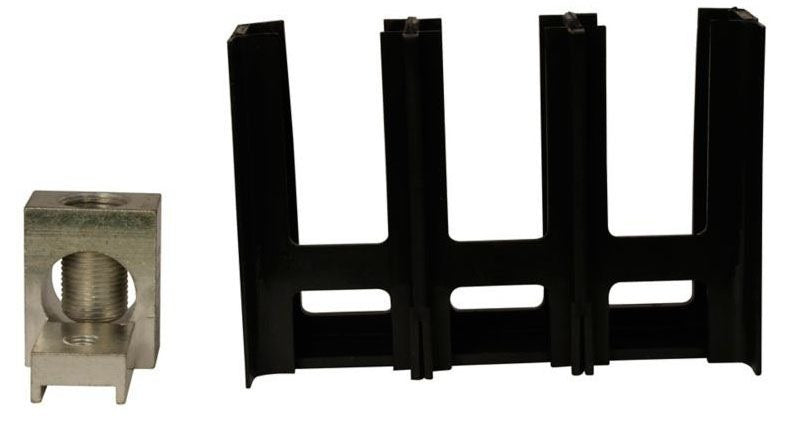

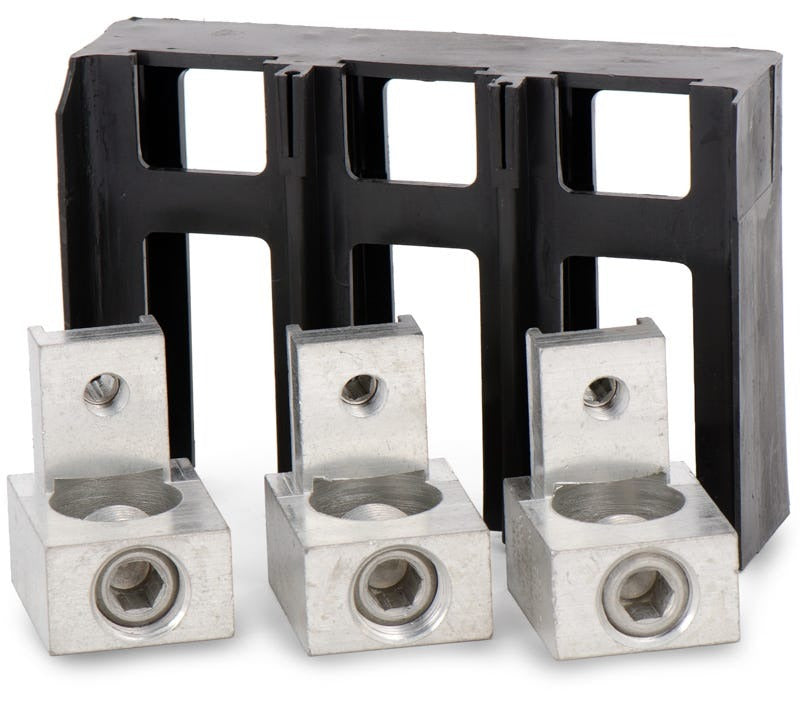

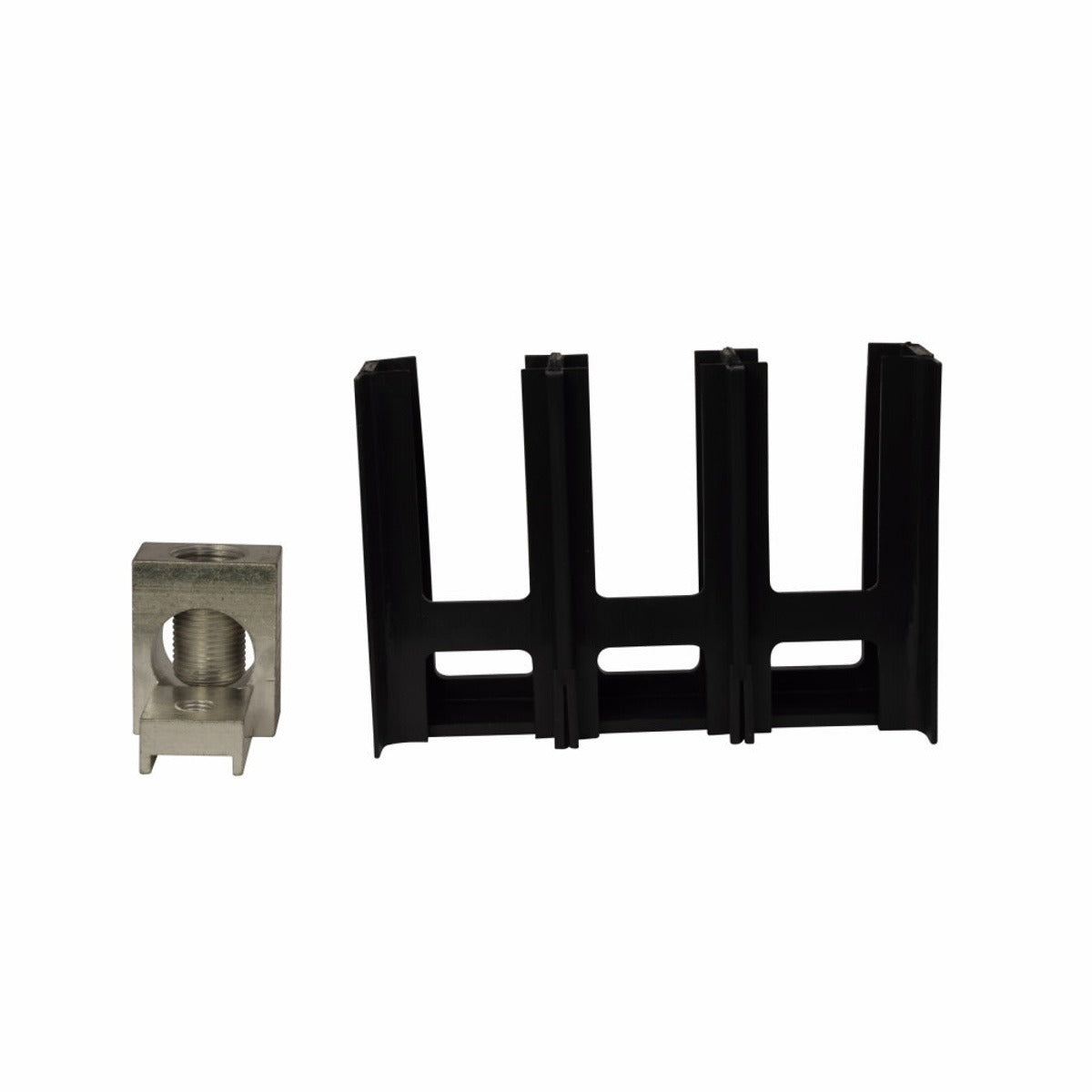

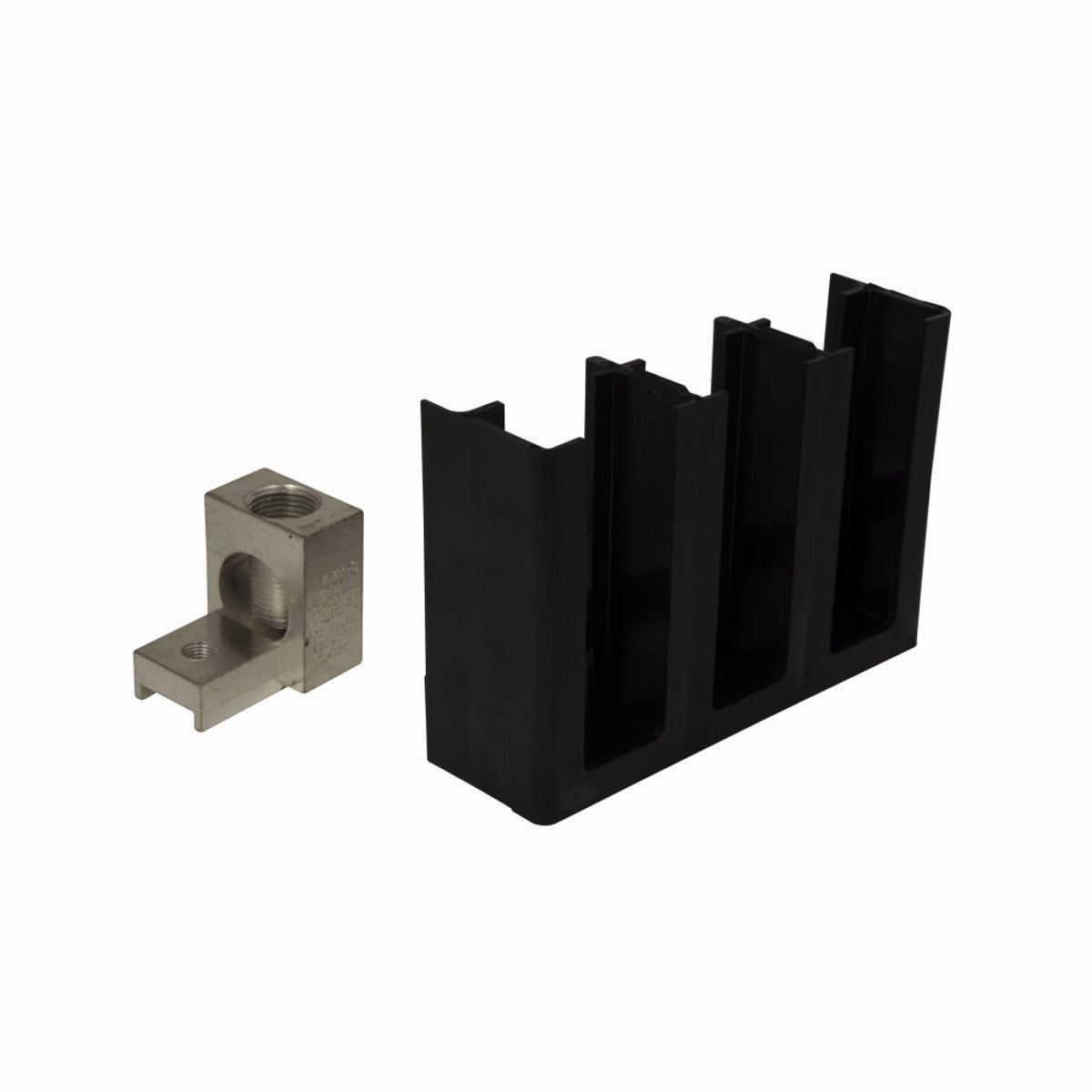

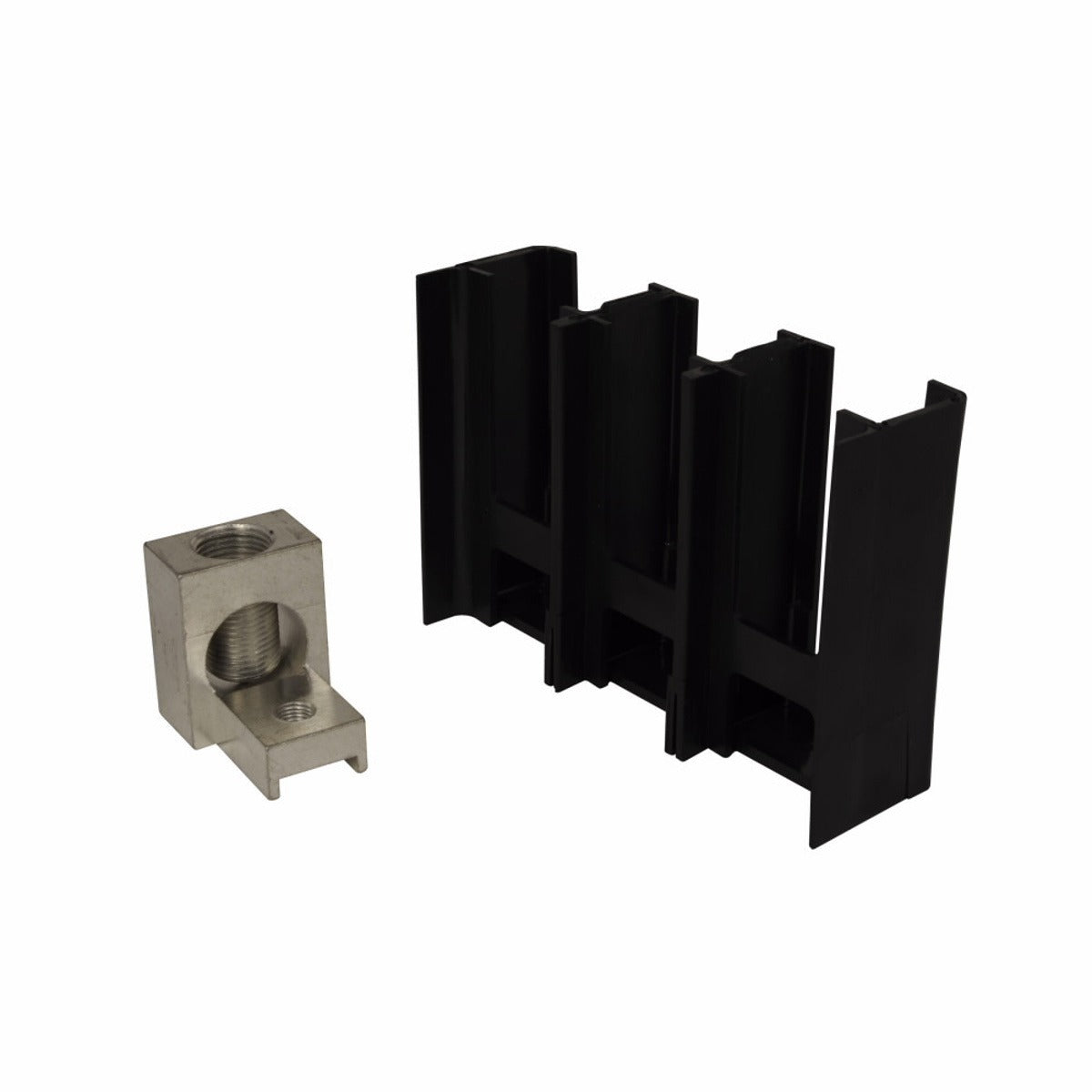

The Eaton 3TA402K is a pressure-type line and load terminal accessory for molded case circuit breakers intended for C Series frame J-K three-pole 400 A applications. It accepts a single 500 to 750 kcmil copper or aluminum conductor and provides line and load lug connections. Constructed of aluminum with dimensions of 6.2 x 3.8 x 4.6 inches and weighing 1.1 lb, it is UL listed for electrical distribution equipment.

  • Pressure-type line and load terminals rated 400 A for three-pole applications
  • Accepts 500–750 kcmil copper or aluminum conductors for single-conductor lugs
  • Designed for Frame J-K, Series C molded case circuit breakers; aluminum construction; dimensions 6.2 x 3.8 x 4.6 in

Product Highlights

Pressure line/load terminal for C Series 3-pole 400 A breakers; accepts 500–750 kcmil Cu/Al; UL listed

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 3TA402K
  • Country of Origin: United States
Technical Specifications
Brand
Eaton
MPN
3TA402K
Product Type
Molded case circuit breaker accessory (line/load terminal)
Terminal Type
Pressure type (line and load)
Rated Current
400 A
Number of Poles
3
Conductor Range
500-750 kcmil (Cu/Al)
Frame
J-K
Series
C
Material
Aluminum
Dimensions (L x W x H)
6.2 in x 3.8 in x 4.6 in
Weight
1.1 lb
Suitable For Use With
C Series 3-Pole 400 A molded case circuit breaker
Certifications
UL Listed, CSA
UPC
786679106792
GTIN
00786679106792
Manufacturer
Eaton / Cutler-Hammer
Country of Origin
United States
Applications
Panelboard, switchboard, motor control center, busway, commercial/institutional structures
