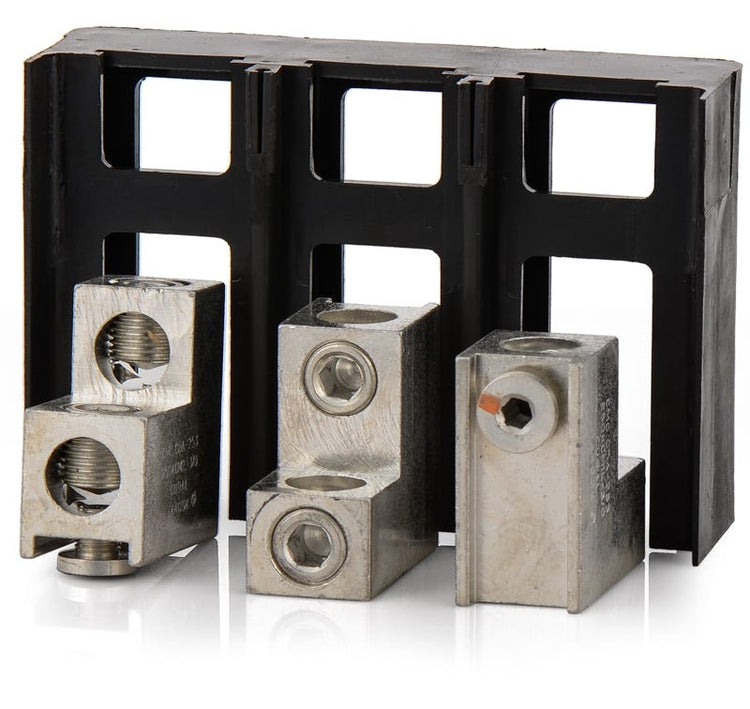

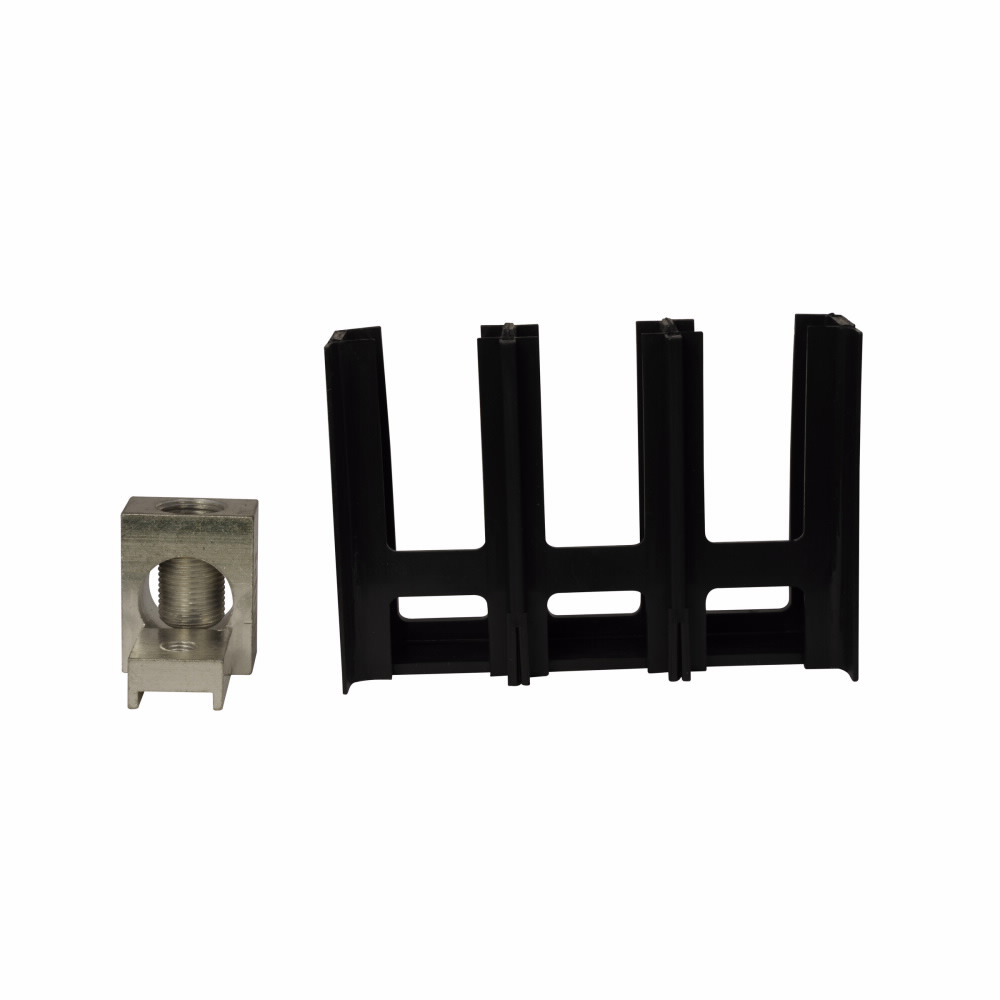

Eaton 3TA400K terminal 400 amp

Product Description

The Eaton 3TA400K is a molded case circuit breaker accessory terminal. Rated at 400A, it is a three-pole terminal with pressure type line and load. It is designed for use with C Series 3-Pole 400 A molded case circuit breakers in panelboards, switchboards, motor control centers and busway applications.

• 400 Amp
• Three-pole
• Pressure type line and load

Product Highlights

The Eaton 3TA400K terminal provides dependable branch circuit protection and is UL Listed.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3TA400K

Technical Specifications

• GTIN: 00786679149416
• Type: Pressure, Standard
• Brand: Eaton
• Frame: Frame J-K
• Width: 4 in
• Height: 4.7 Inch
• Length: 6.4 Inch
• Current: 400 Amp
• Amperage: 400 Amp
• Material: Aluminum
• Used With: C Series 3-Pole 400 A Molded Case Circuit Breaker
• Wire Size: 250 kcmil
• Product UPC: 78667914941
• 12-Digit UPC: 786679149416
• Applications: Used in Panelboard, Switchboard, Motor Control Center and Busway Applications for Dependable Branch Circuit Protection
• Terminal Type: Pressure Type Line And Load
• Conductor Size: 3/0 AWG-250 kcmil
• Conductor Type: Aluminum/Copper
• Product Series: C
• Number of Holes: 3 Hole
• Number of Poles: 3 Pole
• Product Name: Eaton molded case circuit breaker accessory terminal
• Catalog Number: 3TA400K
• Product Length/Depth: 6.4 in
• Product Height: 4.7 in
• Product Width: 4 in
• Product Weight: 1.1 lb
• Global Catalog: 3TA400K
• Product Type: Molded case circuit breaker accessory
• Amperage Rating: 400 A
• Frame size: Frame J-K
• Series: Series C
• Terminals: Pressure type line and load
• Wire size: (2) #3/0 AWG-250 kcmil Cu/Al
• Voltage: 600VAC
• Poles: 3
• Approval: UL
• Length (in): 6.4
• Width (in): 4
• Height (in): 4.7
• Wire Gauge: 2x AWG 3/0 to 250KCmil, Cu/Al
• For Use With: KG, HKDDC, KD, CKD, HKD, CHKD, KDC, KES Frame Molded Case Circuit Breakers
• Mpn: 3TA400K
• Upc: 786679149416
• Number of Ports: 3
• Maximum Amperage: 400 A
• Number in Pack: 1
• Model: 3TA400K
• Conductor Range: 3/0 AWG to 250 kcmil
• Catalog ID: C-H3TA400K
• Manufacturer: Eaton
• Component: Handle Mechanism
