Eaton 3TA225FD Pressure Standard Line and Load Terminal, 4 to 4/0 AWG, For Use With C Series 225 A HFDDC-Frame Molded Case Circuit Breaker

Product Description

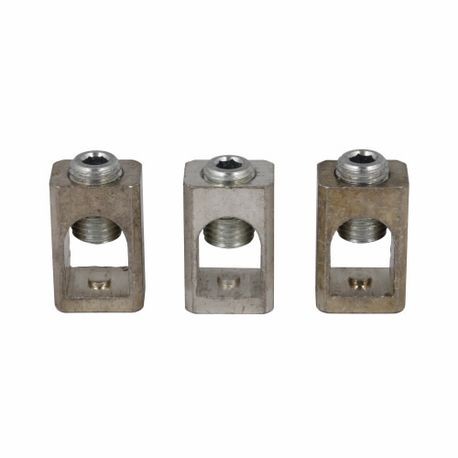

The Eaton 3TA225FD is a pressure standard line and load terminal designed to work with Cutler-Hammer C Series molded case circuit breakers. This terminal accepts conductors from four to four-aught AWG and provides dependable connections in commercial and institutional applications.

• Suitable for C Series 225 A HFDDC-frame molded case circuit breakers.
• UL listed for safety and reliability.
• Dimensions are two point two inches by one point two inches by one half inch.

Product Highlights

This product is essential for creating secure electrical connections in large-scale electrical systems.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer

Technical Specifications

• Current Rating: 225 A
• Conductor Range: 4 to 4/0 AWG
• Material: Aluminum
• Dimensions: 2.2 inches x 1.2 inches x 0.5 inches
• Standard & Approvals: UL Listed
• Vendor SKU: 3TA225FD
• UNSPSC: 39121616
• Application: Circuit Protection Applications
