Eaton 3TA225FD molded case circuit breaker accessory line and load terminal 225 A (4-4/0 AWG)

EATON
Brand: EATON
SKU: 3TA225FD
Availability: In Stock

Ships same day if ordered by 12 pm
$164.52
$164.52
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

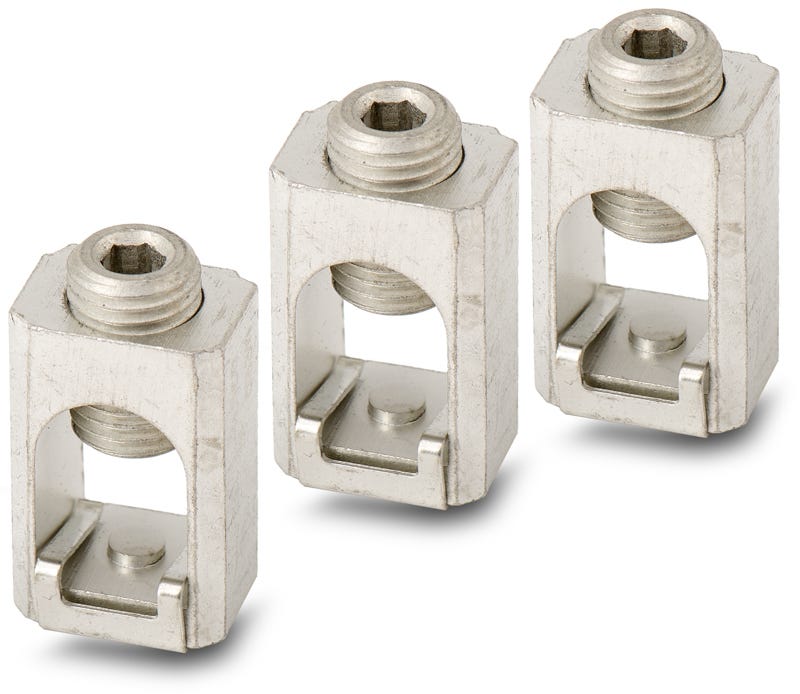

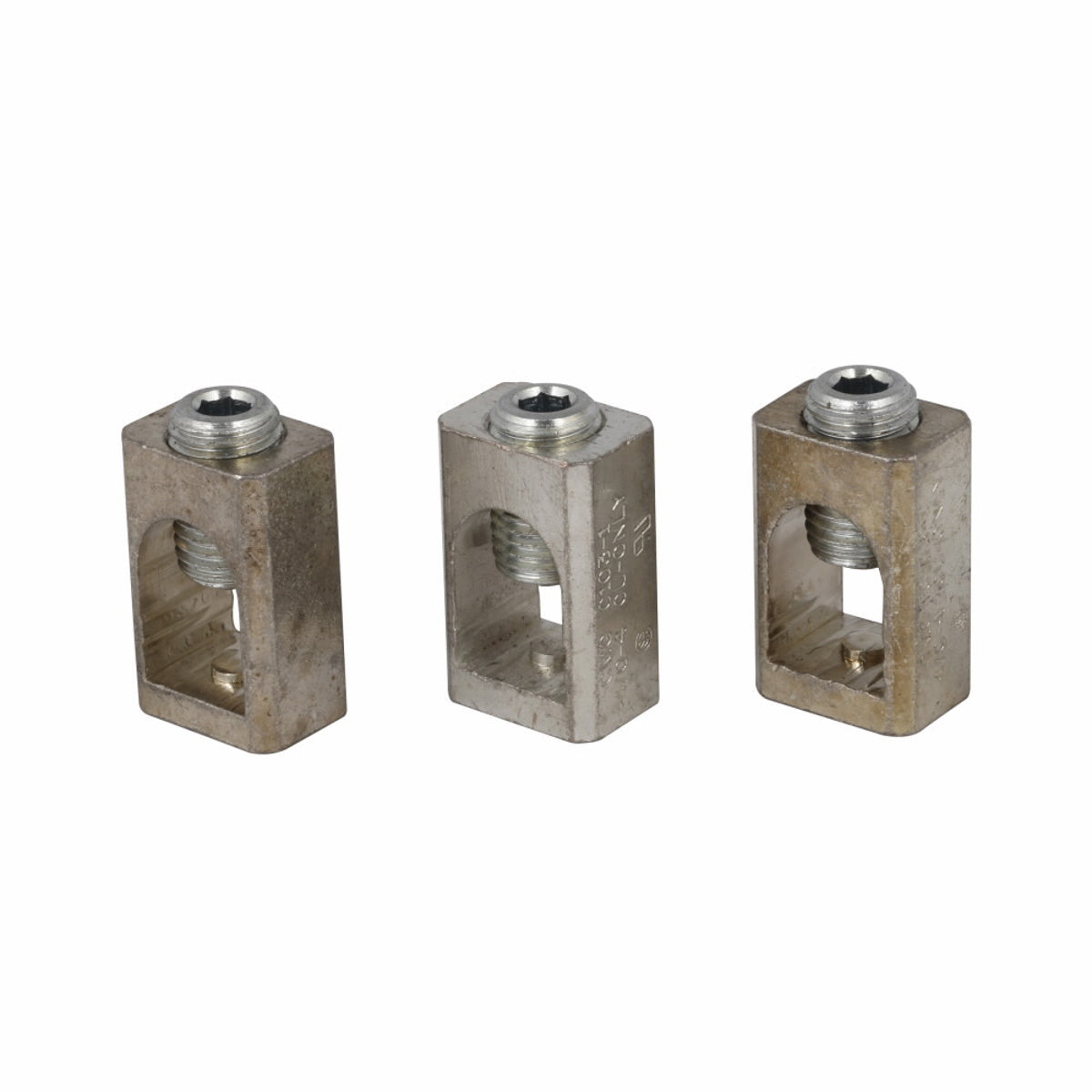

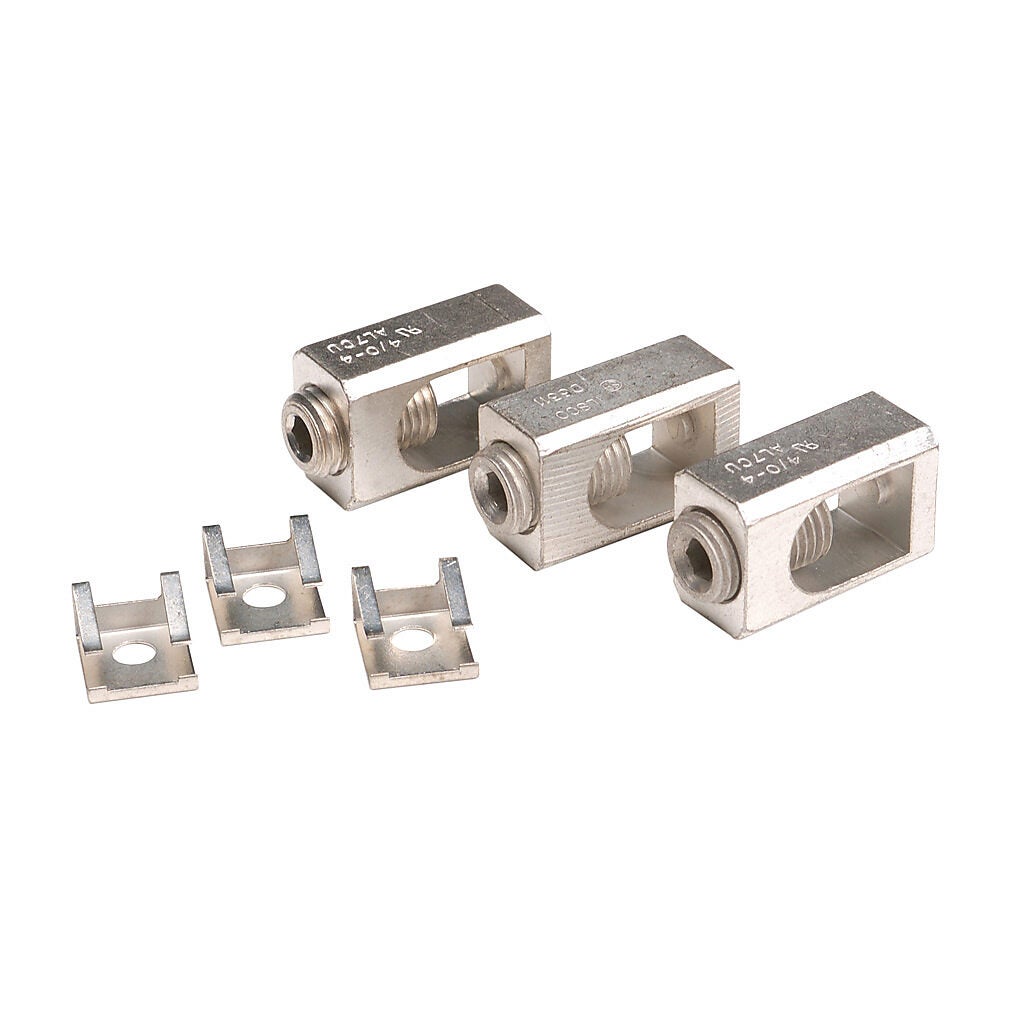

The Eaton 3TA225FD is a pressure-type line and load terminal accessory for Series C molded case circuit breakers rated 225 A. Constructed of aluminum, it accepts #4 to 4/0 AWG copper or aluminum conductors and provides three lugs (one conductor per lug) for line and load connections. The terminal is UL listed, has compact dimensions (2.2 in x 1.2 in x 0.5 in), and is suitable for systems up to 600 VAC or 250 VDC.

  • Pressure-type line and load terminals made of aluminum; UL listed
  • Accepts #4�4/0 AWG copper or aluminum conductors; three lugs, one conductor per lug
  • Compact dimensions 2.2 in L x 1.2 in W x 0.5 in H; rated 225 A; suitable up to 600 VAC / 250 VDC

Product Highlights

Aluminum pressure-type lug kit for 225 A Series C breakers; supports #4�4/0 AWG Cu/Al; UL listed; compact 2.2 x 1.2 x 0.5 in form factor.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 3TA225FD
  • Country of Origin: United States

Technical Specifications

  • Brand: Eaton
  • Manufacturer Part Number: 3TA225FD
  • Product Type: Molded case circuit breaker accessory (line & load terminal)
  • Material: Aluminum
  • Terminals: Pressure type (line and load)
  • Current Rating: 225 A
  • Wire Range: #4�4/0 AWG (Cu/Al)
  • Number of Lugs: 3
  • Conductors per Lug: 1
  • Suitable For Use With: C Series 225 A HFDDC-frame molded case circuit breakers; compatible with FB, FD, HFD, FDC, FG, HFDDC, E2F, E2FM frames (per manufacturer)
  • Voltage Rating: 600 VAC; 250 VDC
  • Dimensions: 2.2 in (L) x 1.2 in (W) x 0.5 in (H)
  • Weight (manufacturer): 0.09 lb
  • Certifications: UL Listed
  • Country of Origin: United States
  • UPC: 786679222409
  • GTIN: 00786679222409
  • Application: Commercial / institutional buildings and related structures
  • Contact Material: Aluminum (accepts Cu/Al conductors) - kept with medium confidence
  • Insulation: Non-insulated
  • Stud Size: 1/4 in or 1/2 in diameter (as stated by source) - kept with low confidence
