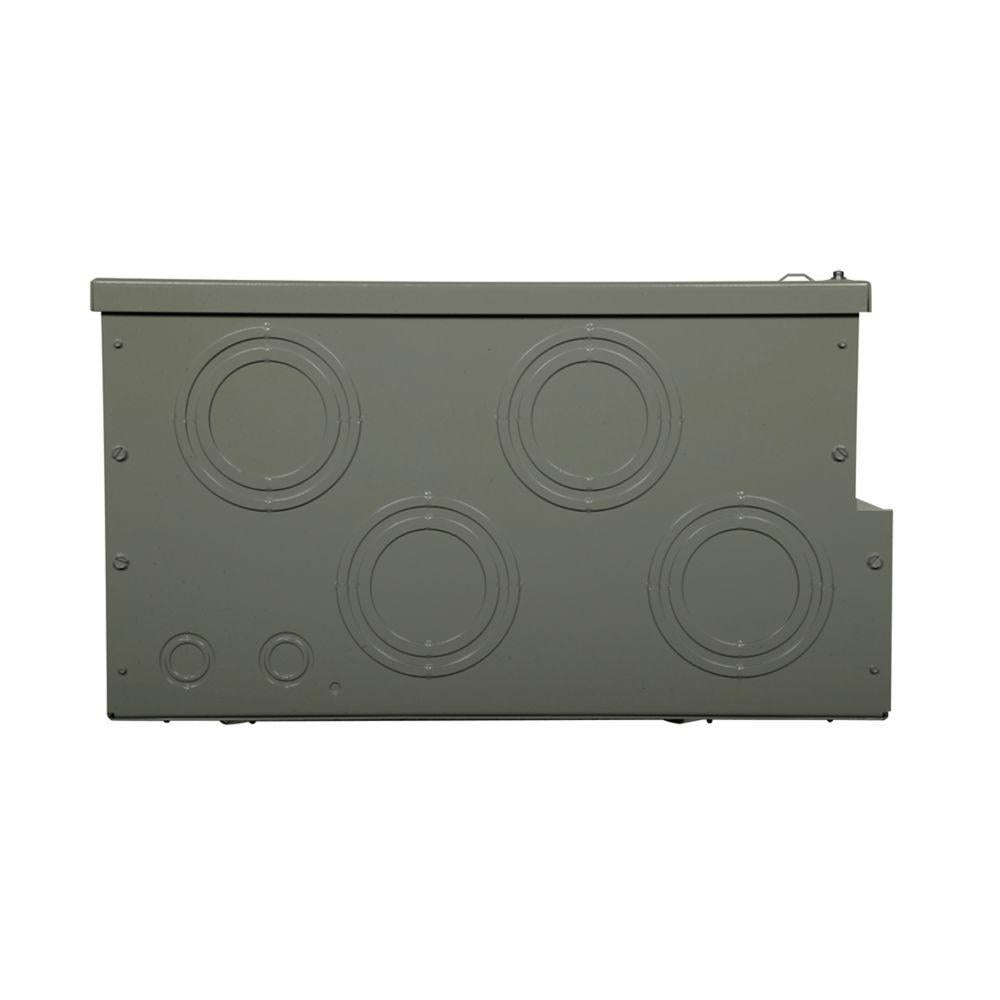

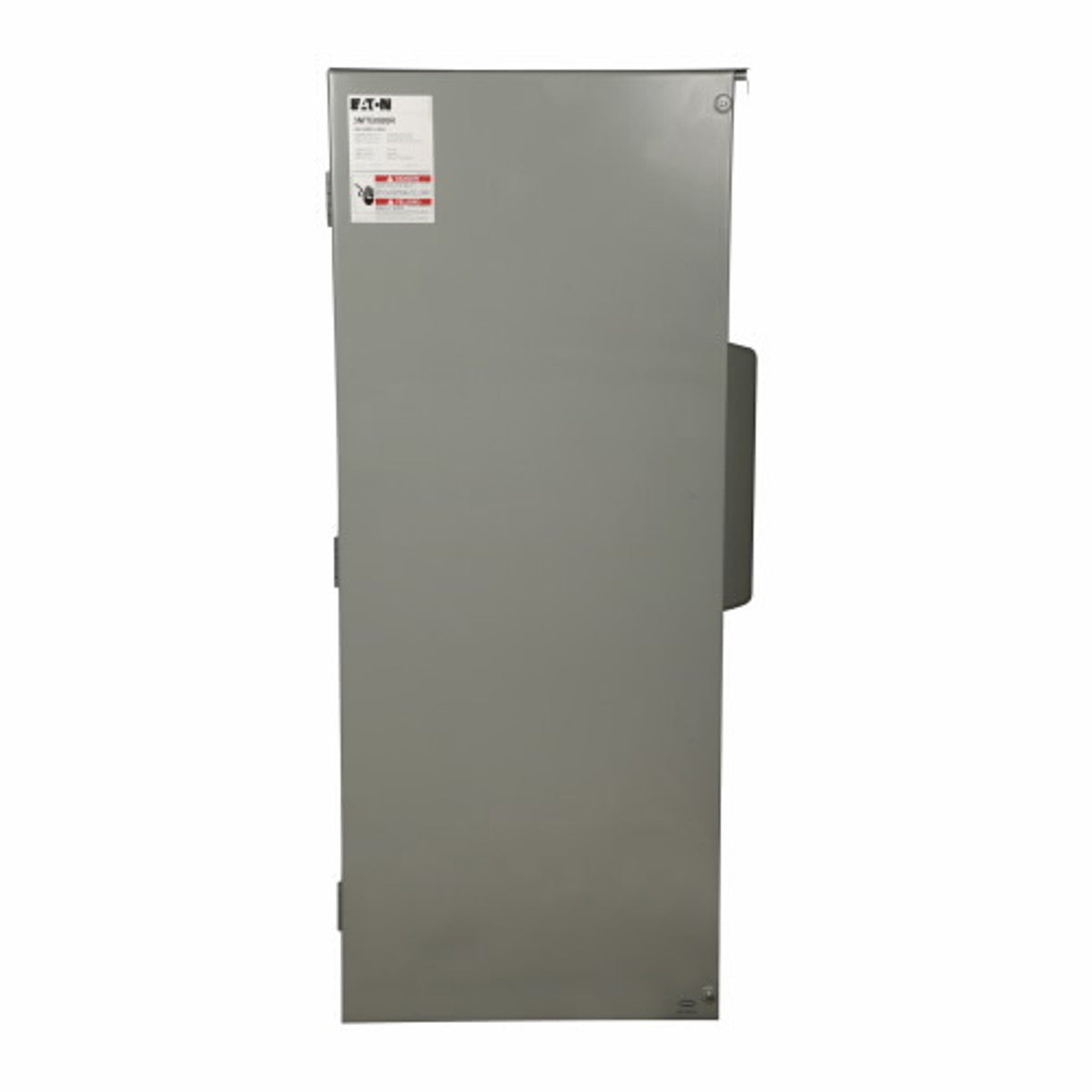

Eaton 3MTB800R 3 Phase Main Terminal Box 800 Amp NEMA 3R

Product Description

The Eaton 3MTB800R is a main terminal box with a capacity of 800 amps and a three-phase design. This terminal box is constructed to handle voltage ratings of 120/208 volts. It is suitable for both overhead and underground installations. The unit can accommodate wire sizes from 250 to 500 kcmil, making it versatile for various electrical applications.

• Rated for 800 amps, ideal for heavy electrical loads.
• Compatible with 250 to 500 kcmil wire sizes for flexibility.
• Designed for weather protection with NEMA 3R enclosure.

Product Highlights

This terminal box is part of Eaton's gangable metering system, which allows the creation of custom metering lineups for installations such as condominiums and strip malls.

Product Information

Standard Information

• BRAND: Eaton
• MPN: 3MTB800R

Technical Specifications

• Voltage Rating: 120/208 V
• Amperage Rating: 800 A
• Enclosure Type: NEMA 3R
• Feed Type: Bottom, Overhead, Top, Underground
• Wire Size: 250-500 kcmil
• Dimensions: 22.54 in L x 11.19 in W x 15.5 in H
• Weight: 85 lb
• Application: Electrical assemblies, panels, and OEMs
