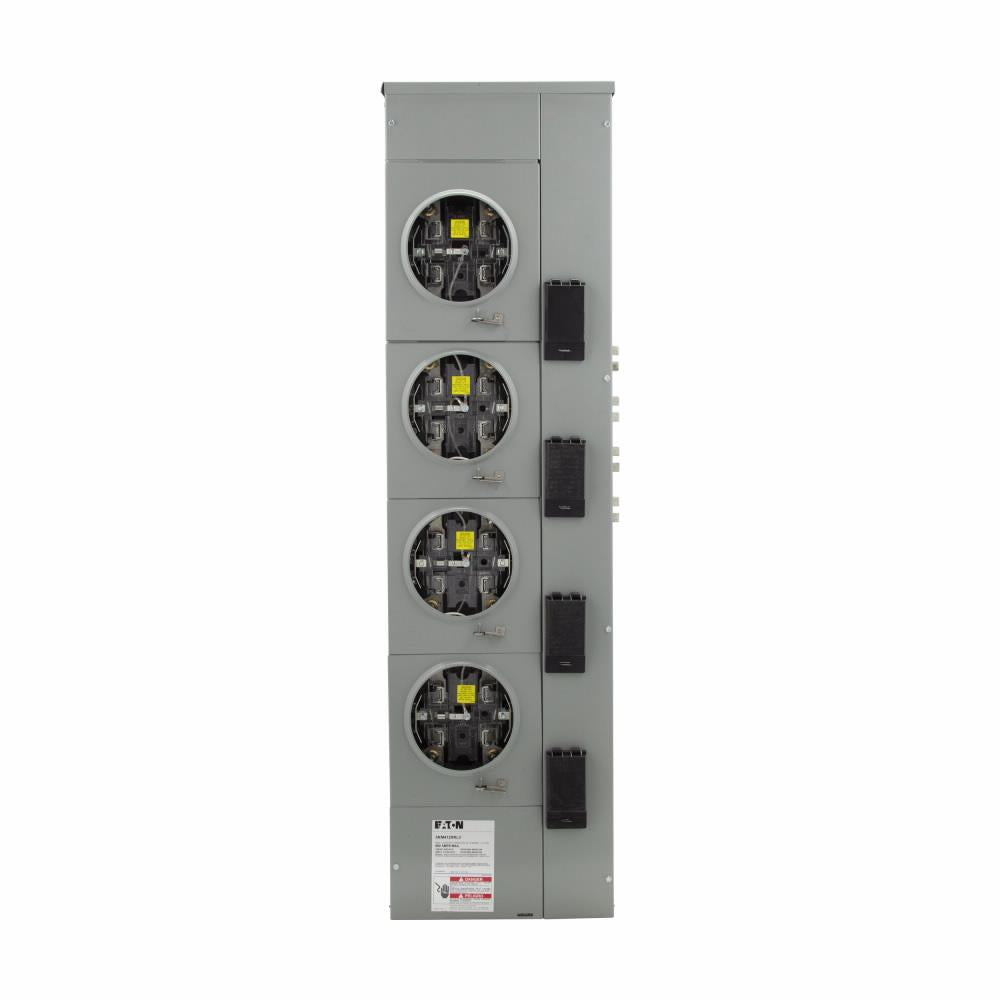

Eaton 3MM412R12RLV meter stack module 5-jaw 4-socket multiple 120/208 VAC 125 A 4 wires

Product Description

EATON 3MM412R12RLV is a residential meter stack module designed for safe and easy installation and maintenance in multi-tenant residential applications. This 5-jaw 4-socket multiple unit is constructed from durable galvanized steel, preventing rust and ensuring long-term reliability. Operating at 120/208 VAC and 125 A, it features a bus bar connection and a 100,000 A short circuit rating, ideal for apartment complexes, duplexes, and triplexes.

• Stacks with 3-phase horizontal bus are rated 208Y/120 V, 3-phase, 4-wire, but can be used on 240/120 V, 3-phase, 4-wire delta systems
• All 3-ph horizontal bus modules have 4-wire cross bus, connected A-B phase to vertical bus, readily reconnectable for phase balance on installation
• Short circuit ratings up to 100 kA rms symmetrical depending upon AIC rating of installed main tenant circuit breakers and main device

Product Highlights

Durable galvanized steel construction, 5-jaw 4-socket multiple configuration, 120/208 VAC, 125 A, 100,000 A short circuit rating, UL Listed.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3MM412R12RLV

Technical Specifications

• Connection Type: Bus Bar
• Material: Galvanized Steel
• Series: 3MM
• Short Circuit Current Rating: 100000 A
• Type: 5-Jaw 4-Socket Multiple
• Voltage Rating: 120/208 VAC
• Amperage Rating: 125 A
• Phase: 1/3
• Number of Wires: 4
• Certifications: UL Listed
• Metering Type: Group Metering
• Enclosure: Outdoor
• Compatible Breakers: BR2_, BRH2_, BRHH2_BRHX2_, BRX2_
• Bus Rating: 1200 A
• Bus Material: Aluminum
• Phase Balance: A-B
• Application: Residential and Outdoor Applications
• Includes: Ringless Style Covers with Lever Bypass
• Product Category: Residential lever bypass meter stack
• Phase Configuration: Three-phase in, single-phase out
