Eaton 3MM412C2BC Residential Meter Stack 125 Amp

Product Description

The Eaton 3MM412C2BC residential meter stack is designed for multiple metering applications. Rated at 125A, it features copper bus rated to 800A and is intended for indoor use. It accommodates four sockets and supports three-phase input with single-phase output, suitable for 120/208 Vac systems. It is designed for use with BR2_, BRH2_, BRHH2_, and BRX2 breakers.

• Meter socket and tenant main breaker/wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft.
• A convenient termination for neutral conductors is in the wireway of each module.

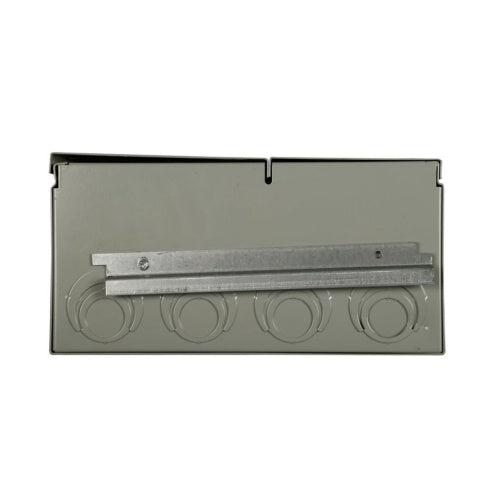

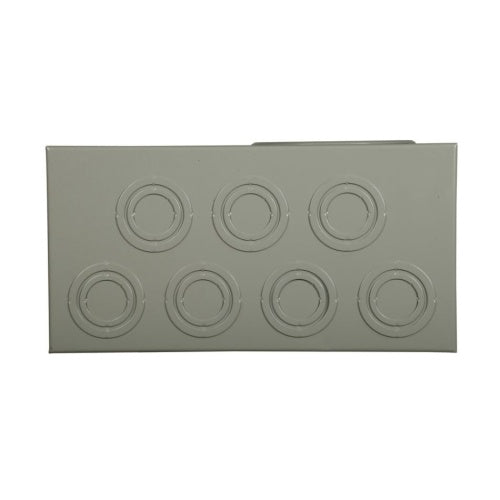

• Enclosures are made of galvanized steel construction and include rust-inhibiting phosphate primer and gray baked enamel for long-term durability.

Product Highlights

Ideal for apartment complexes and strip malls, this meter stack allows utilities to measure power consumption for each tenant.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3MM412C2BC

Technical Specifications

• Catalog Number: 3MM412C2BC
• UPC: 782114631928
• Product Length/Depth: 12.26 in
• Product Height: 48.5 in
• Product Width: 7.01 in
• Certifications: UL Listed
• Product Type: Residential meter stack
• Type: Multiple metering
• UNSPSC Code: 39120000
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 3MM412C2BC
• Component: Meter Stack
• Amperage: 125 Amp
• Maximum Voltage: 208 VAC
• Socket Type: Residential Meter Stack Module
• Service: 3Phase
• Voltage: 120/208V
• Bus Amps: 800A
• Socket Amps: 125
• Number of Sockets: 4
• Socket Cover Style: Ring
• Socket Jaws: 5
• Breaker Series: BR, BRH, BRHH
• Enclosure Type: Indoor, NEMA 3R
