Eaton 3MM212R 3 Phase Ring M.M., 2 So

Product Description

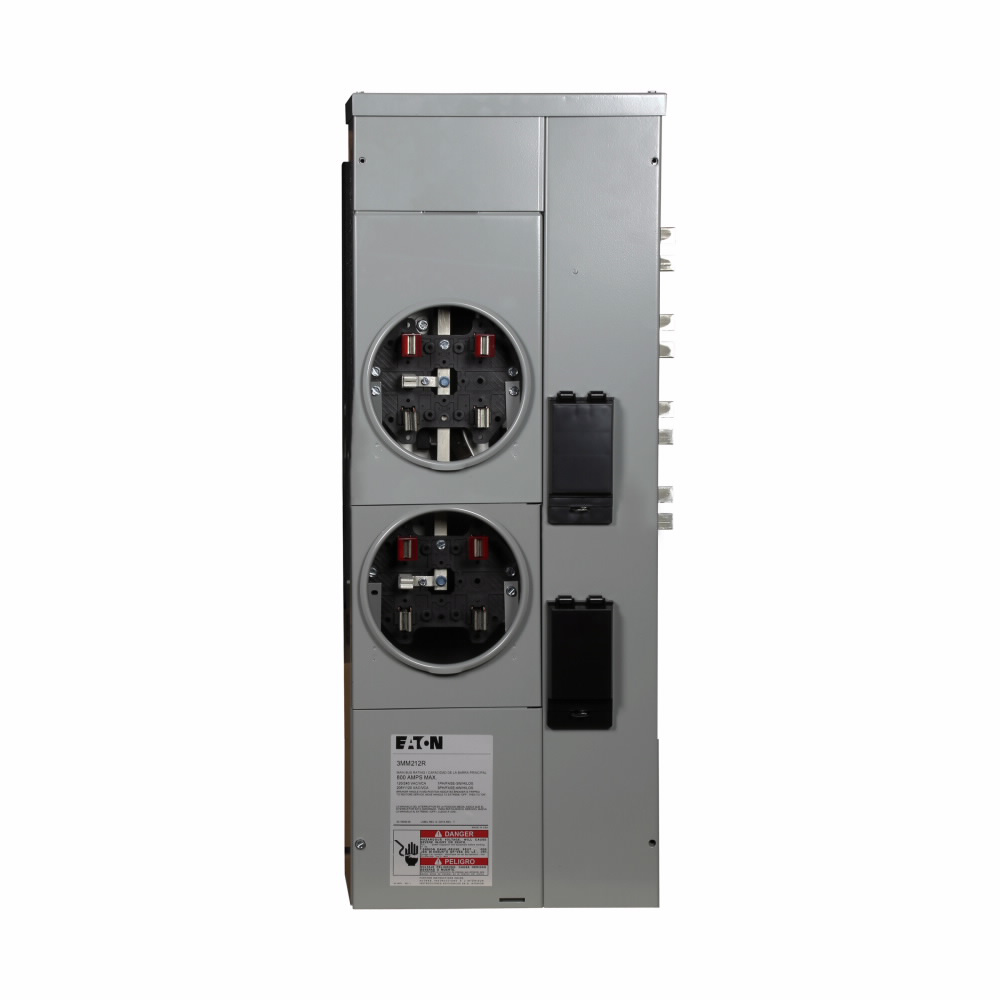

Eaton's 3MM212R is a three-phase residential meter stack module. It features a group metering type designed for high current applications. This model has a current rating of one hundred twenty-five amperes and operates at one hundred twenty to two hundred eight volts. The enclosure is suitable for both indoor and outdoor use, ensuring versatility in installation. The module includes two sockets and a five-jaw configuration, providing efficient metering in residential settings.

• Group metering type for efficient electricity distribution
• Five jaws for improved connections and reliability
• Constructed with aluminum bus material for durability

Product Highlights

This Eaton meter stack module is ideal for large residential applications such as apartment complexes and duplexes, allowing flexible configurations based on specific needs.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: 3MM212R

Technical Specifications

• Amperage Rating: 125 Amp
• Voltage Rating: 120/208 Volt
• Enclosure Type: NEMA 3R
• Dimensions: 40 inches Long x 15 inches Wide x 8 inches High
• Weight: 52 lb
• Bus Material: Aluminum
• Number of Jaws: 5
• Connection Type: Bus Bar
• Standards: UL Listed
