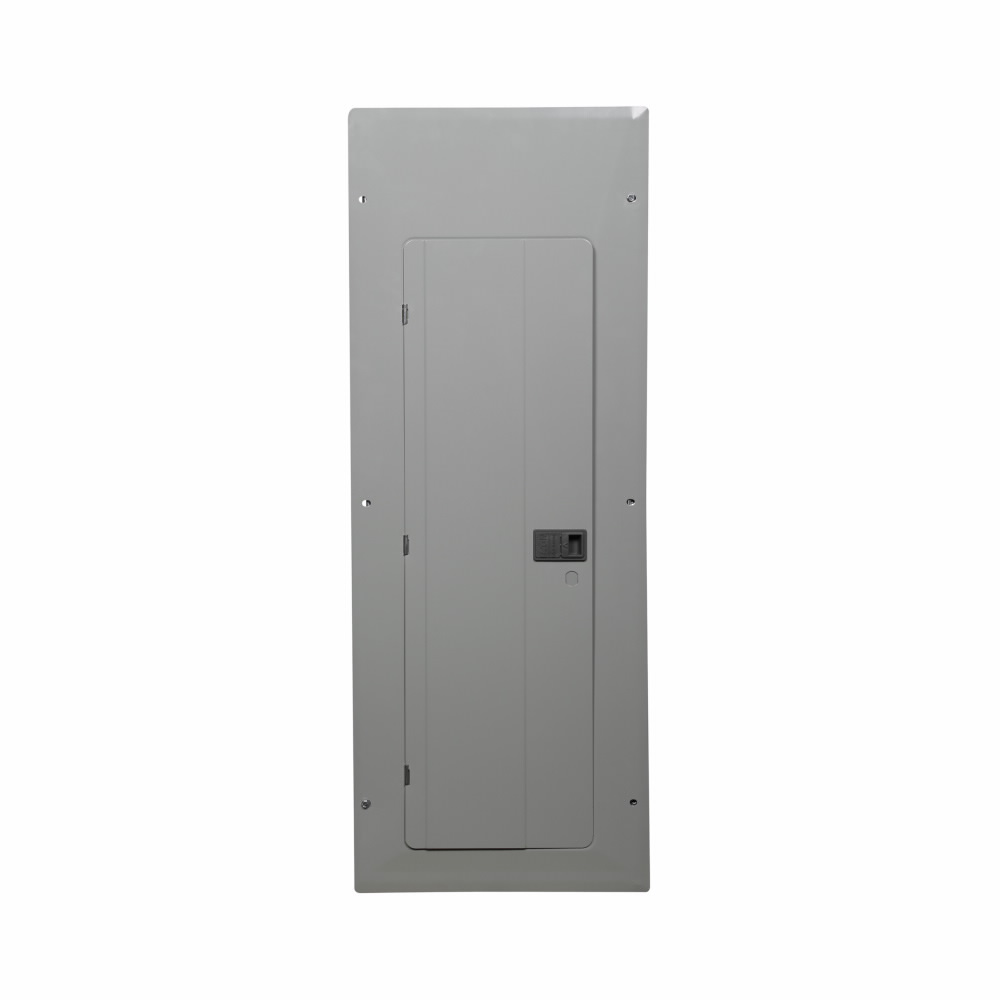

EATON 3BR4242LC200 Type BR Three-Phase Main Lug Load Center with Copper Bus, 42 Space/42 Circuit, 208Y/120, 240V, 200 Amp, NEMA 1

Product Description

The EATON 3BR4242LC200 is a three-phase main lug load center designed for reliable electrical distribution. Rated at two hundred amps, it accommodates up to forty-two circuits. This unit works with voltages of 208Y/120 and 240. It features a copper bus for optimal conductivity and is mounted in a NEMA one enclosure.

• Designed for three-phase electrical systems
• Accommodates up to forty-two circuits
• Includes cover for protection

Product Highlights

This load center includes a combination mounting configuration and a four-wire design for effective power distribution. It supports wire sizes from one zero AWG to three hundred kcmil. The main breaker protects the entire panel and serves as a service disconnect.

Product Information

Standard Information

• Manufacturer: EATON
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 208Y/120, 240 V
• Interrupt Rating: 25 kA
• Type: BR/BWH
• Mounting Type: Combination
• Number of Spaces: 42
• Enclosure Type: NEMA 1
• Dimensions: 3.88 in L x 14.31 in W x 39 in H
