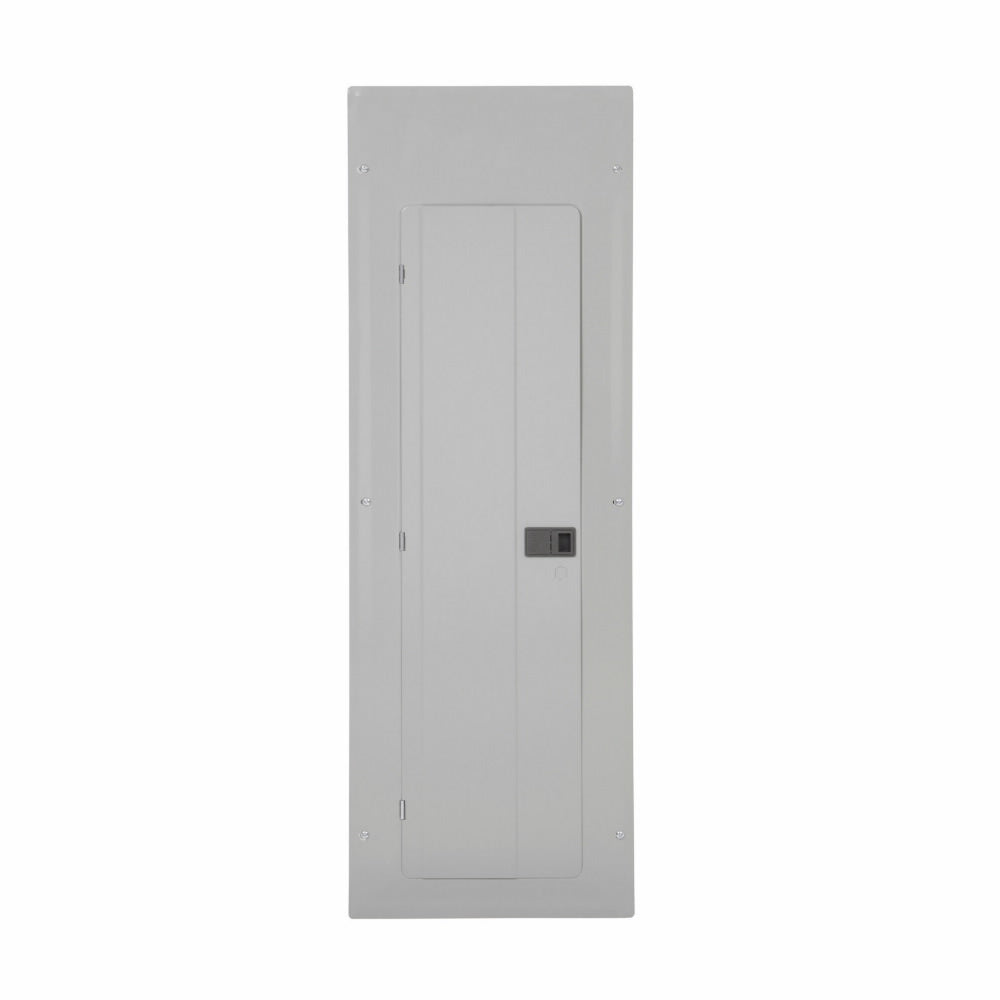

EATON 3BR4242BC200 3-Phase Main Circuit Breaker Load Center, 200 Amp, 42 Circuits

Product Description

The Eaton 3BR4242BC200 is a three-phase main circuit breaker load center. This load center operates at 200 amps and is designed for use with 208Y/120 and 240 voltage levels. It has a total of 42 spaces and can accommodate 42 circuits, making it suitable for various residential and commercial applications.

• Three-phase operation for reliable performance
• High capacity with 200 amp rating
• Compliant with NEMA 1 standards for indoor use

Product Highlights

This load center is designed for easy installation and features a copper bus system. It serves as the main breaker for service entrances and can be used as a main lug when adding circuits. The main breaker protects the entire panel and serves as a crucial service disconnect.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: 3BR4242BC200

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 208Y/120/240 VAC
• Dimensions: 3.88 in L x 14.31 in W x 34.13 in H
• Wire Size: 1/0 AWG to 250 kcmil
• Breaker Type: BR/BWH
• Number of Circuits: 42
• Enclosure Type: NEMA 1
• Interrupt Rating: 10 kA
