Eaton 3BR3L100S 3-Phase Metallic Main Lug Loadcenter 120/208Y/240 VAC 100 A 3 Poles 10 kA Interrupt

Product Description

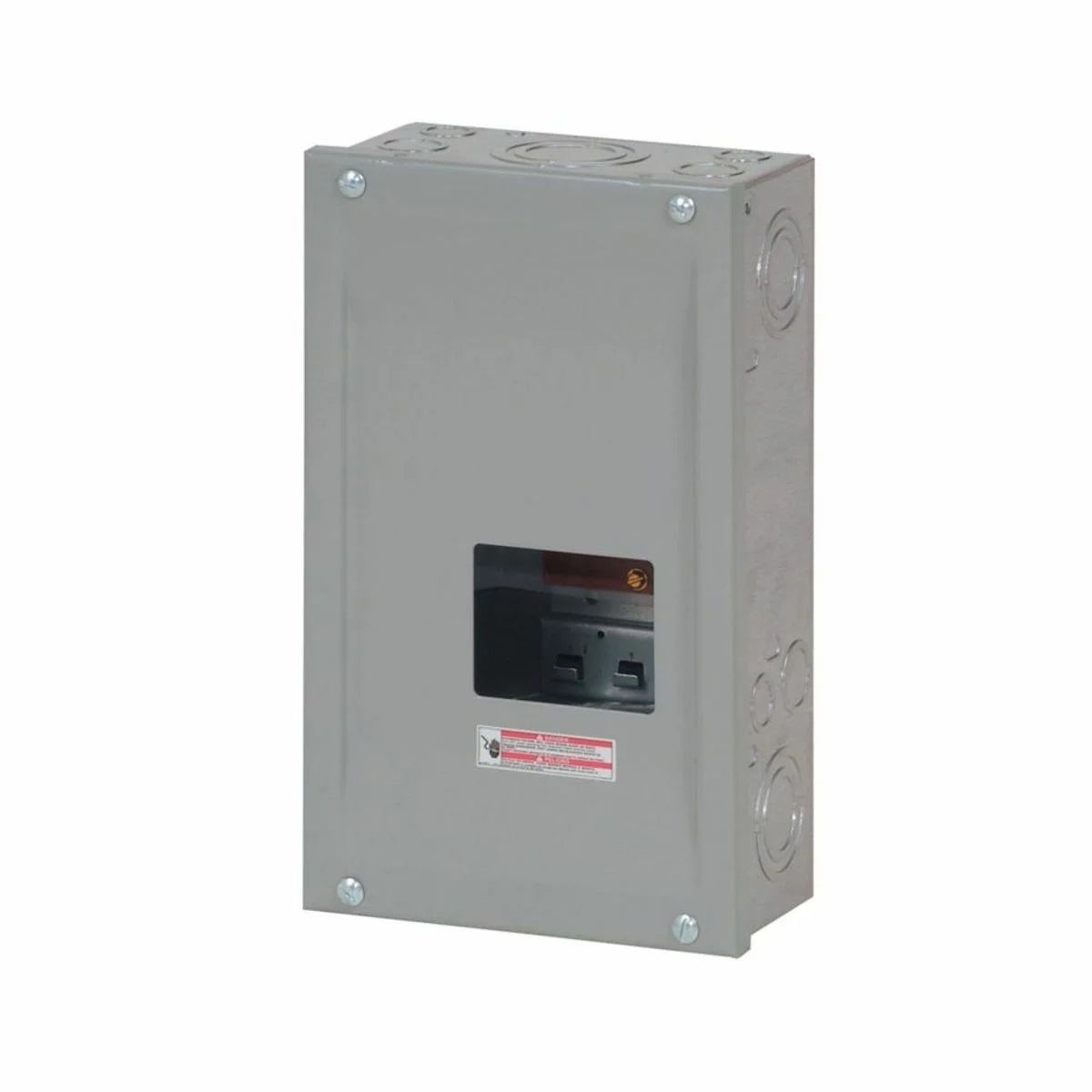

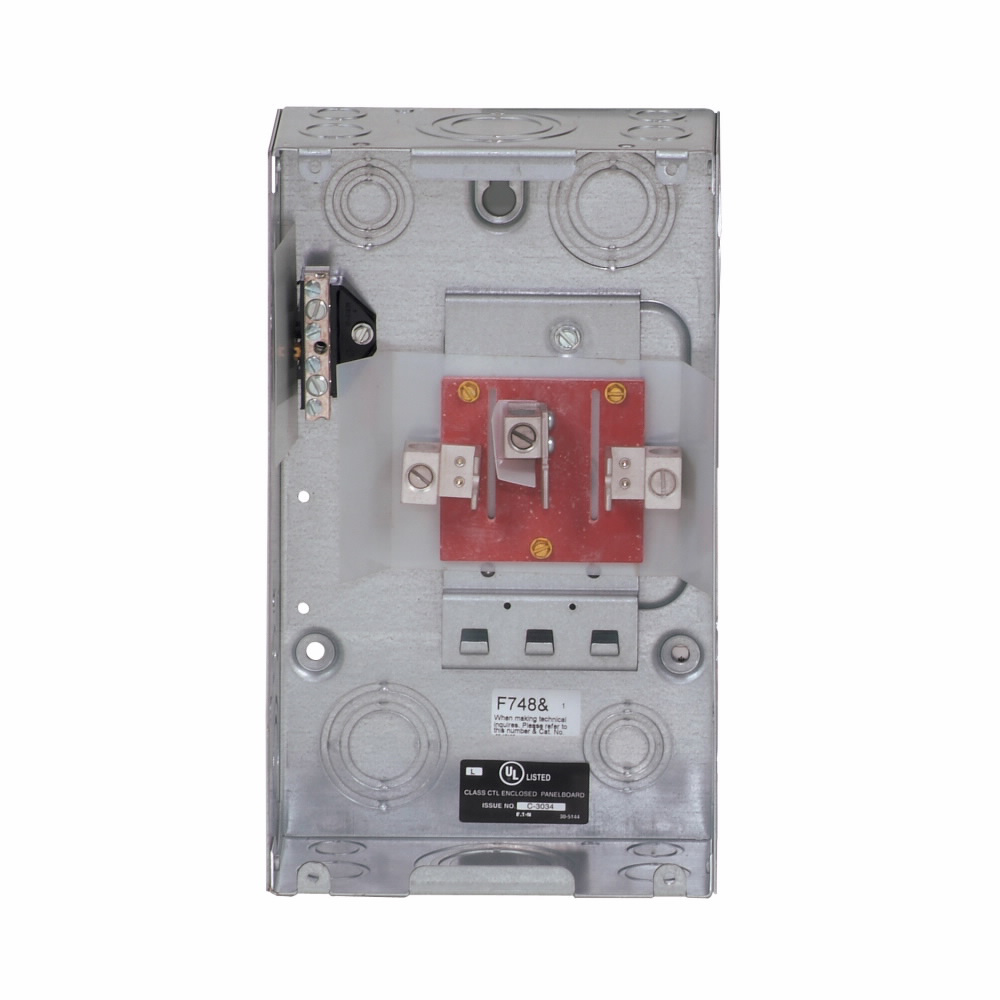

Eaton presents the model 3BR3L100S, a three-phase main lug load center designed to effectively distribute electrical power. This load center is compatible with 208Y and 240 volts and holds a maximum amperage rating of one hundred. It is configured for three circuits and features a metallic enclosure.

• Type BR 1-inch breakers supported
• Interrupt rating of 10 kAIC
• NEMA 1 enclosure rating for indoor use

Product Highlights

This load center serves as either a main breaker or a main lug and is crucial for service entrances or expanding existing circuits. The breakers safeguard individual electrical loads.

Product Information

Standard Information

• Manufacturer: Eaton
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 100 A
• Dimensions: 3.8 inches L x 7.3 inches W x 12.6 inches H
• Wire Size: 14 to 1/0 AWG
• Number of Circuits: 3
• Number of Poles: 3
• Voltage Rating: 120/208Y/240 VAC
• Enclosure Type: NEMA 1
• Cover: Included
