Product Description

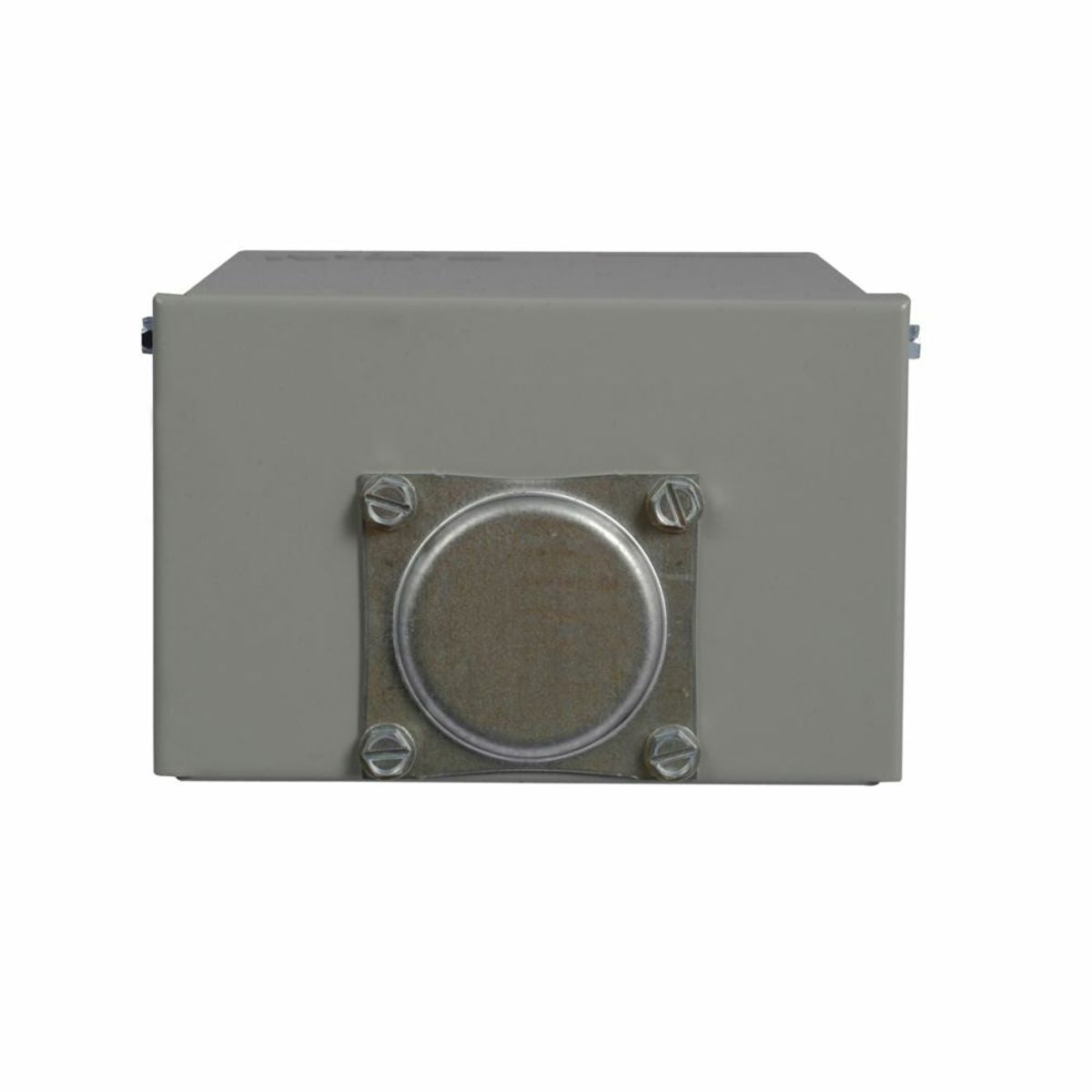

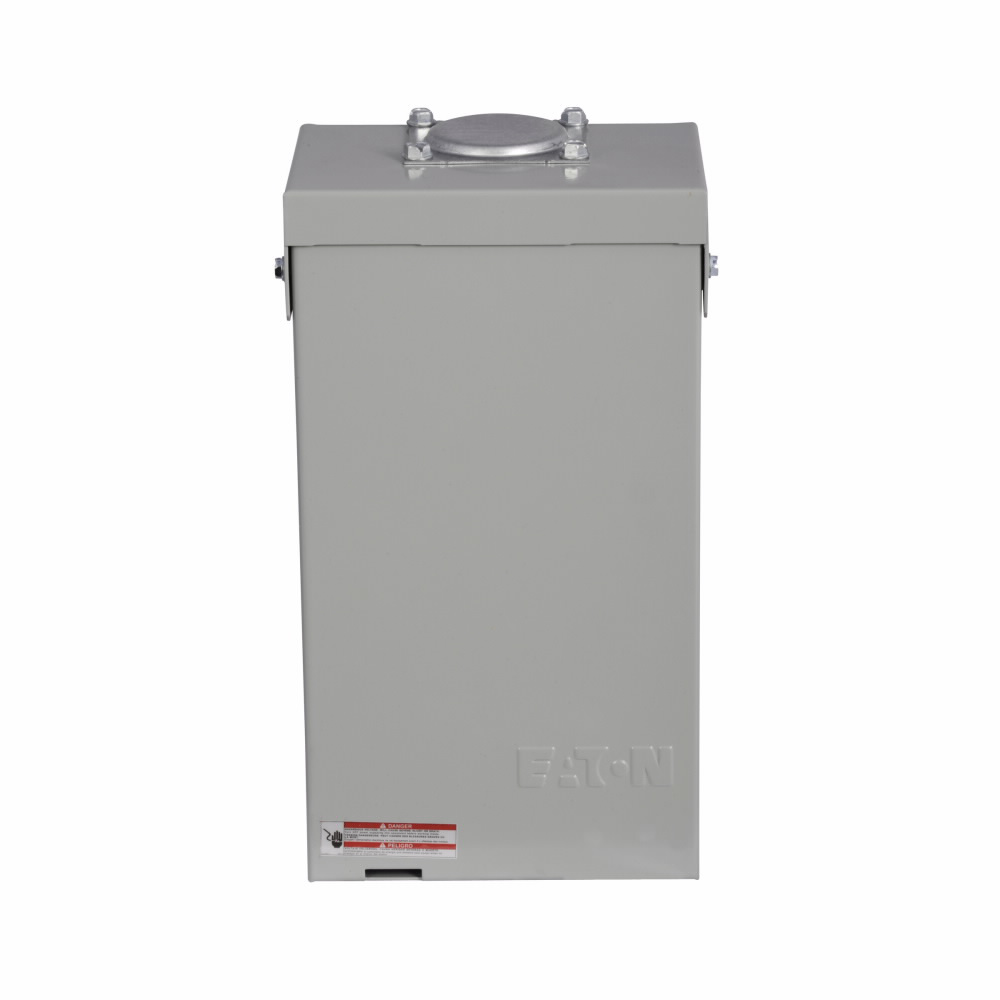

Eaton offers the 3BR3L100R main lug load center for safe and effective power distribution. This unit is designed for use in residential and commercial applications requiring 100 amperes with a three-phase configuration. The NEMA 3R enclosure is made from aluminum, ensuring durability in various environments.
- Effective for residential and light commercial use.
- Compatible with Type BR one-inch breakers.
- Includes a cover for environmental protection.
Product Highlights
This Eaton load center is built to house branch circuit breakers, enabling efficient power management for individual circuits. It acts as a main breaker for service entrances and allows for additional circuits to be integrated into existing electrical systems.
Product Information
Standard Information
-
Brand: Eaton
-
Catalog Number: 3BR3L100R
Technical Specifications
-
Amperage Rating: 100 A
-
Voltage Rating: 120/208Y/240 VAC
-
Number of Circuits: 3
-
Number of Poles: 3
-
Number of Spaces: 3
-
Enclosure Type: NEMA 3R
-
Dimensions: 3.88 in L x 14.31 in W x 39 in H
-
Interrupt Rating: 10 kAIC
