Eaton 3BR3042LC200R 3Ph/BR LC 200A ML

Product Description

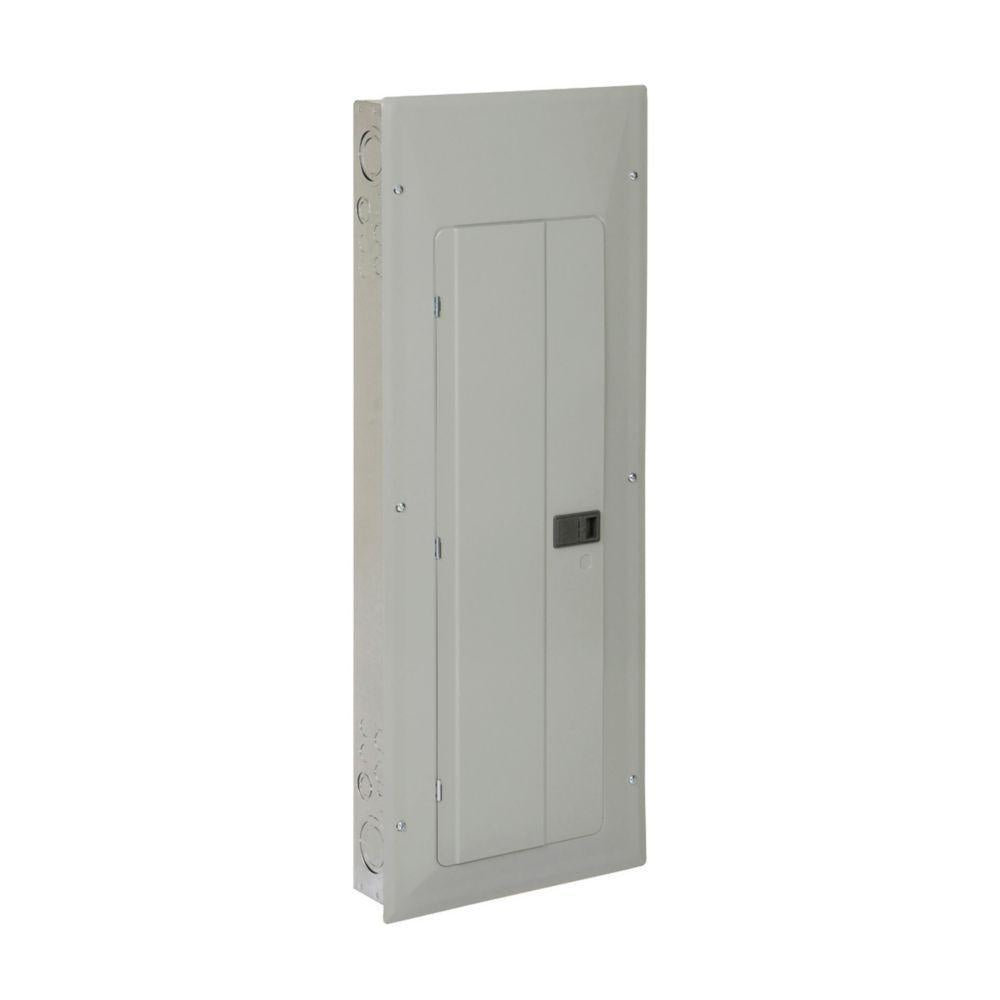

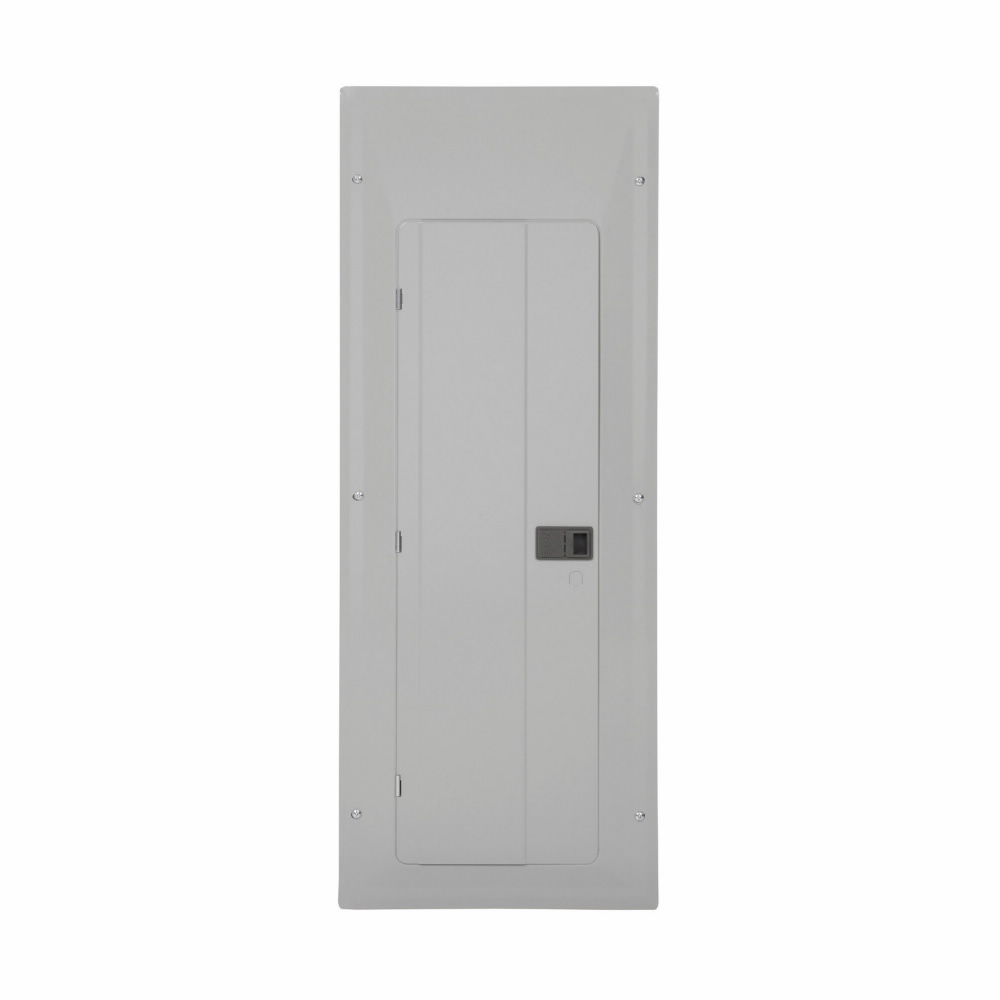

The Eaton 3BR3042LC200R BR main lug loadcenter is a main lug loadcenter with 200 A, G1R, and NEMA 3R enclosure. It features 42 circuits, 30 spaces, and is designed for four-wire, three-phase systems, accommodating #4 AWG-300 kcmil wire sizes. This loadcenter distributes power to individual circuits, housing branch circuit breakers and wiring.

• Main lug loadcenter
• 200 A
• NEMA 3R

Product Highlights

Eaton 3BR3042LC200R main lug loadcenter with 200A, NEMA 3R enclosure, 42 circuits and 30 spaces, designed for three-phase systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3BR3042LC200R

Technical Specifications

• Size: G1R
• Type: Main Lug Loadcenter
• Brand: Eaton
• Height: 5.19 Inch
• Length: 34.13 Inch
• Amperage: 200 Amp
• Enclosure: NEMA 3R
• NEMA Size: 3R
• Wire Size: 4 AWG to 300 kcmil
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Bus Material: Copper
• Conductor Size: 300 kcmil
• Number of Wires: 4 Wire
• Number of Phases: 3 Phase
• Number of Spaces: 30
• Number of Circuits: 42
• Breaker Type: BR
• Dimensions: 34.13 in L x 14.31 in W x 5.19 in H
• Enclosure Box Size: G1R
• Housing Material: Galvanized Steel
• Wiring Configuration: 3/4-Wire
• Voltage Rating: 120/208Y/240 VAC
• Amperage Rating: 200 A
• MPN: 3BR3042LC200R
• Product Type: Main lug loadcenter
• Nema Rating: NEMA 3R
• Application: Outdoor, Residential and Light Commercial Applications
• Includes: Cover
• Warranty: 10 year
• Certifications: UL Listed
