Product Description

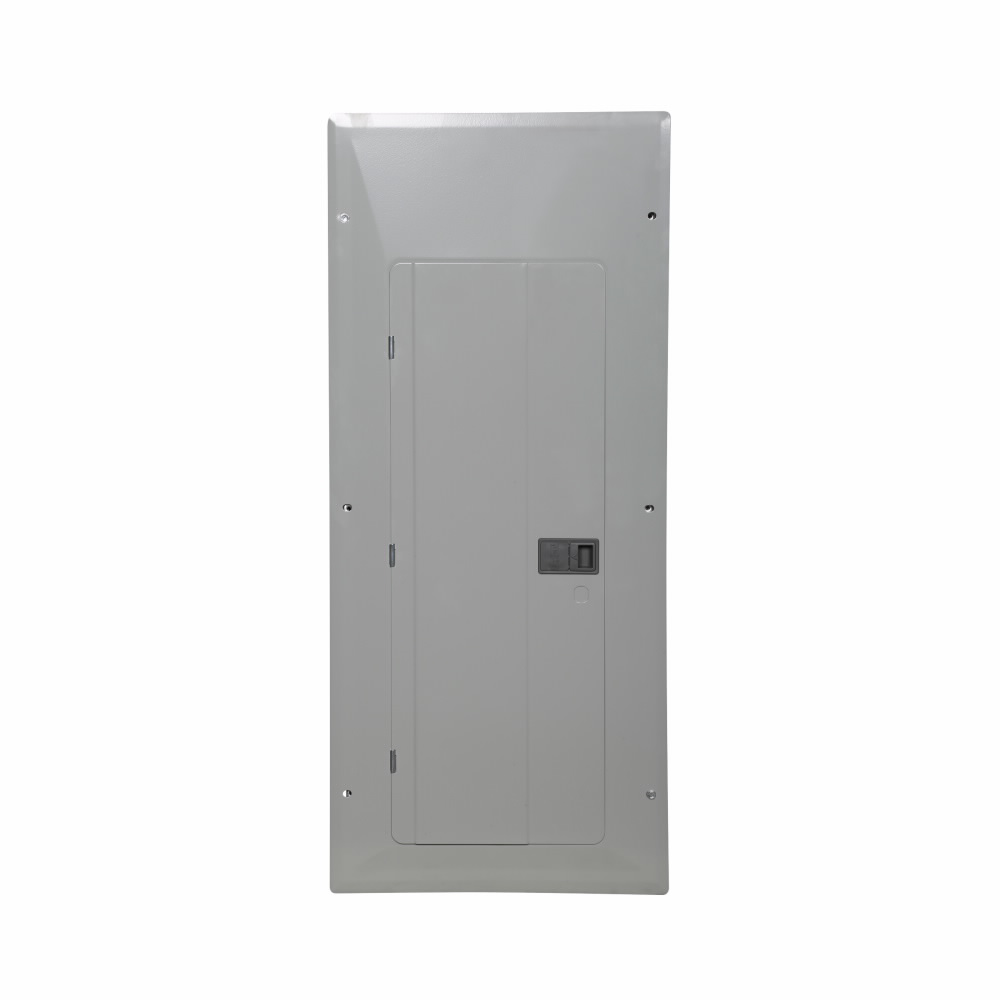

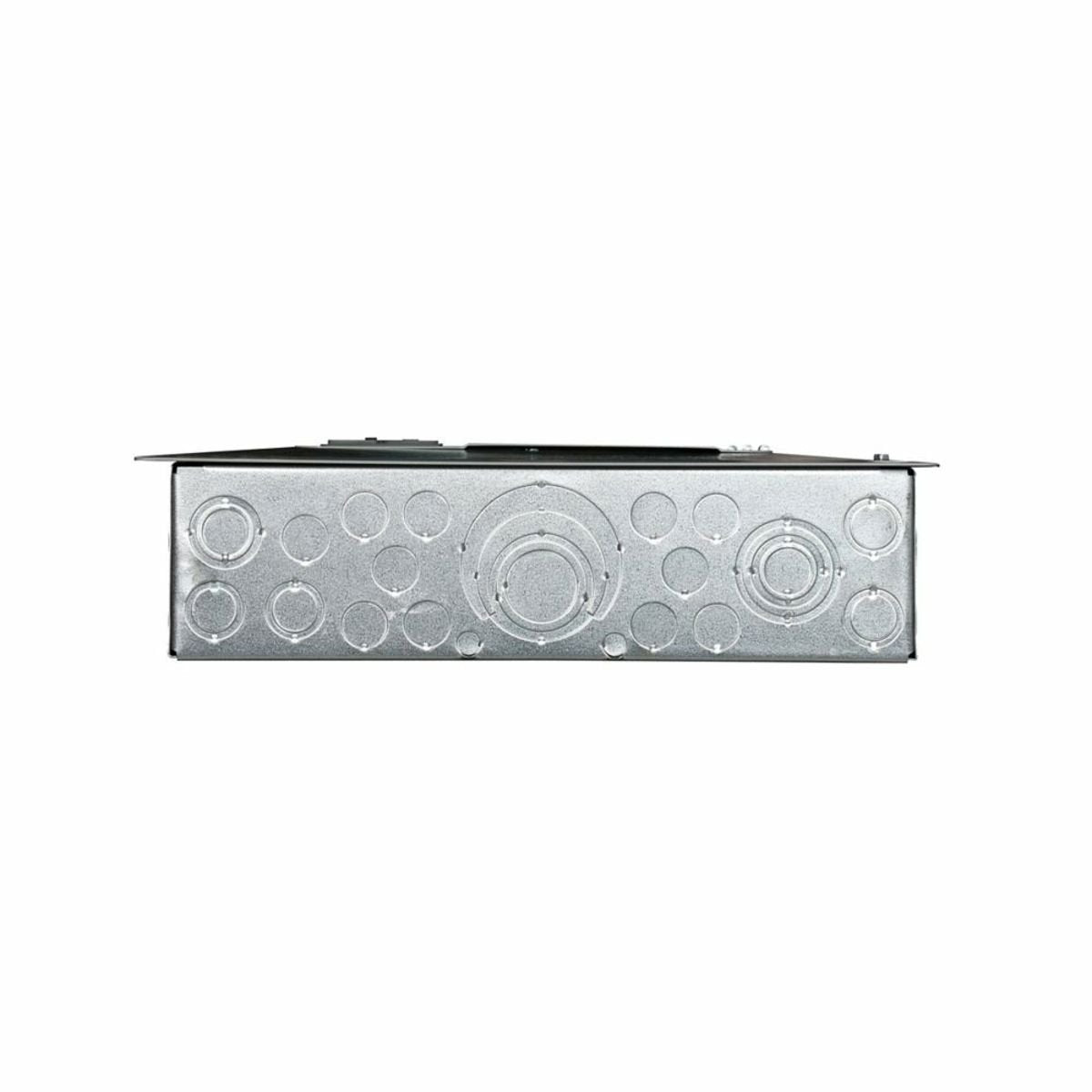

The Eaton 3BR3042L200 is a three-phase, main lug load center designed for reliable power distribution. This load center operates at a voltage of 120/208Y or 240 VAC and provides a 200 Amp rating. It is suitable for indoor applications and accommodates up to 42 circuits with 30 spaces. The load center includes an aluminum cover and is compliant with various standards including UL 50 and UL 67.
- Three-phase configuration
- 200 Amp capacity
- Accommodates up to 42 circuits
Product Highlights
Ideal for service entrance applications, this load center features a combination mounting type and can accommodate wire sizes from one AWG to three hundred kcmil. The interrupt rating is 25 kAIC, ensuring effective overload protection.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer / Eaton
Technical Specifications
-
MPN: 3BR3042L200
-
Amperage: 200 A
-
Voltage Rating: 120/208Y/240 VAC
-
Number of Circuits: 42
-
Number of Poles: 42
-
Enclosure Type: NEMA 1
-
Wire Size: 1 AWG to 300 kcmil
-
Dimensions: 35.75 in L x 15.8 in W x 4.5 in H
