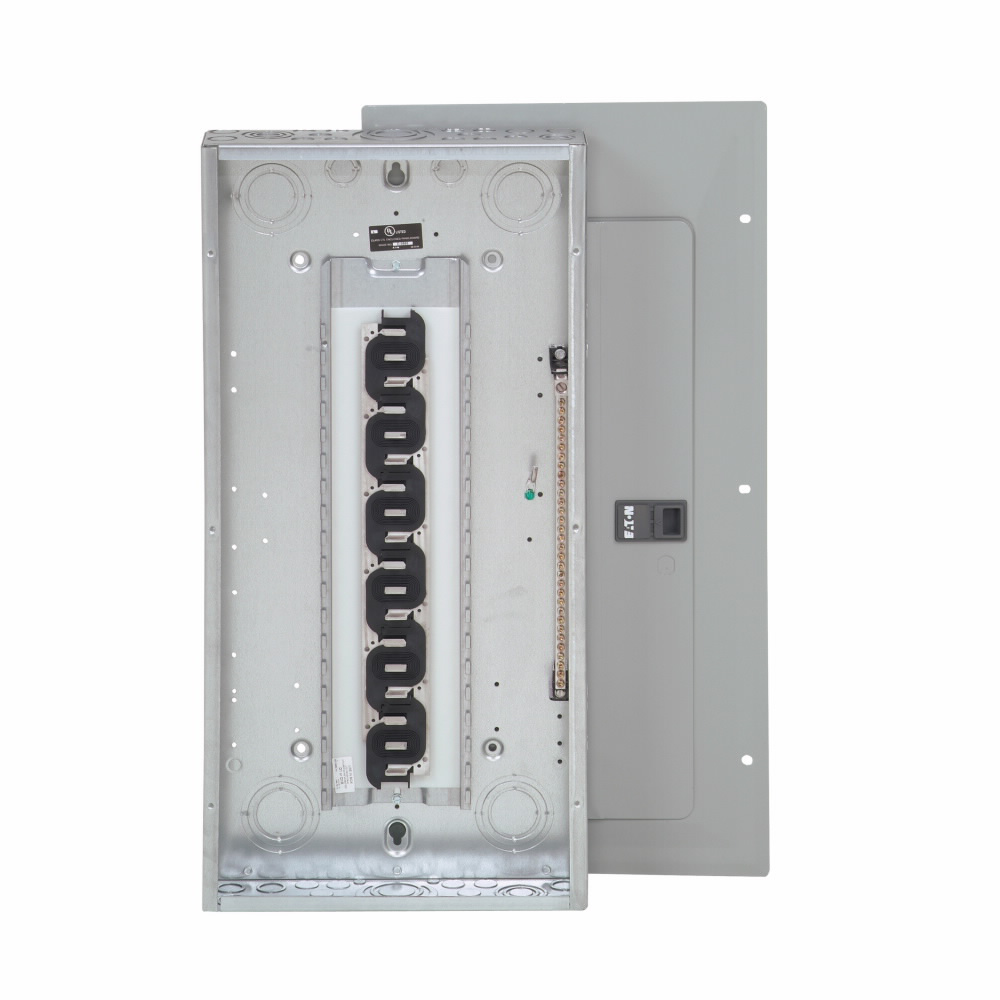

EATON 3BR3030NC100 Type BR Three-Phase Convertible Main Load Center with Copper Bus, 30 Space/30 Circuit, 208Y/120, 240V, 100 Amp, NEMA 1

Product Description

The EATON 3BR3030NC100 is a three-phase convertible main load center designed for various voltage applications including 208Y/120VAC and 240VAC. This load center is rated for 100 Amps and equipped with copper bus for durability and efficiency. It accommodates up to thirty circuits in a NEMA 1 enclosure, making it suitable for both residential and commercial installations.

• Three-phase design with 100 Amp capacity
• Accommodates up to thirty circuits
• Compatible with type BR 1-inch breakers

Product Highlights

This load center is specially designed for easy installation and efficient power distribution. With a maximum rating based on the main breaker, it can function as a main breaker for service entrances or as a main lug when additional circuits are needed. The branch circuit breakers protect the wiring leading to individual loads such as outlets and fixtures.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: 3BR3030NC100

Technical Specifications

• Type: 3-Phase
• Voltage Rating: 208Y/120 VAC, 240 VAC
• Amperage Rating: 100 A
• Number of Spaces: 30
• Number of Circuits: 30
• Wiring Configuration: 4-Wire
• Dimensions: 3.88 in L x 14.31 in W x 29.13 in H
• Enclosure Type: NEMA 1
• Interrupt Rating: 10 kA
• Housing Material: Metal
• Bus Material: Copper
• Mounting Type: Combination
