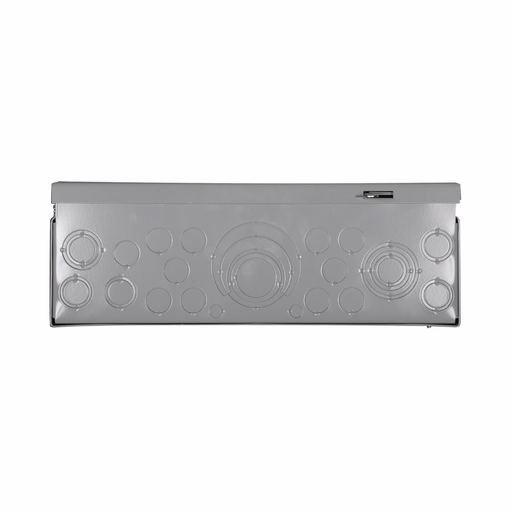

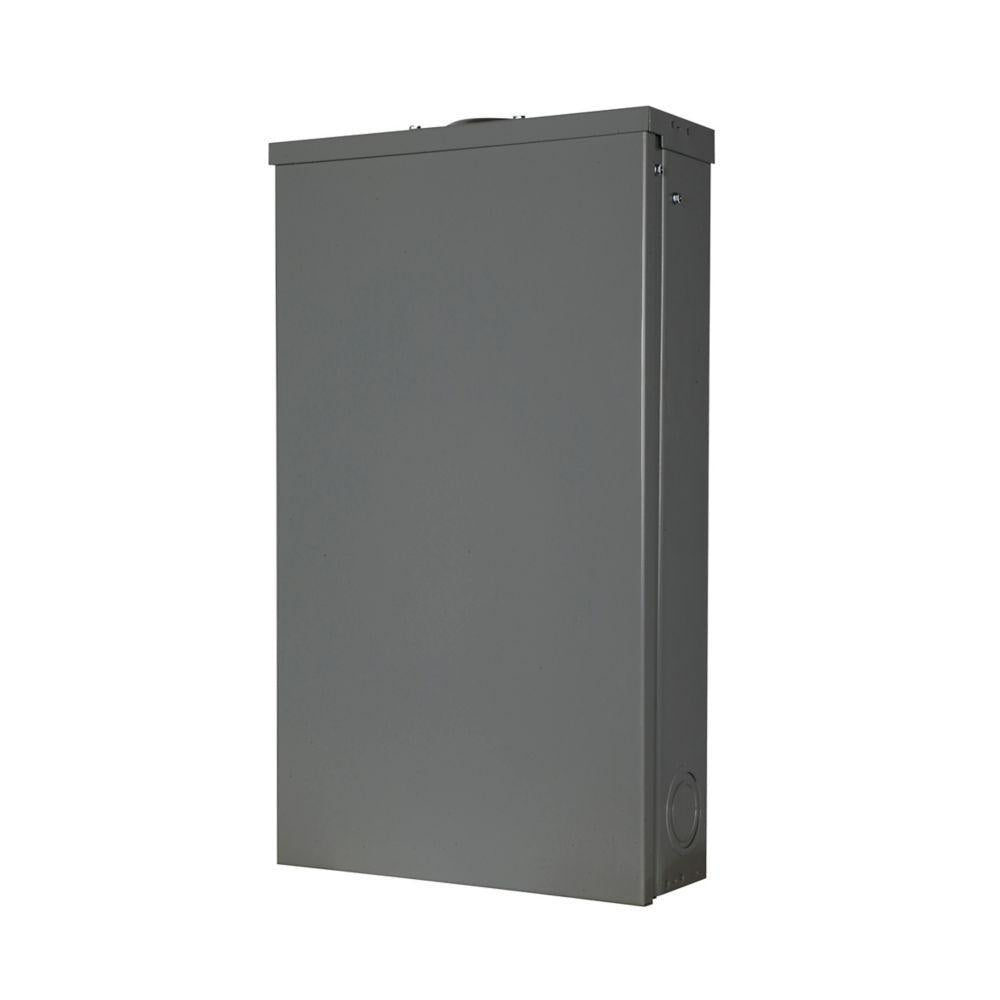

Eaton 3BR1836L150R BR Main Lug Loadcenter 150 Amp C3R

Product Description

The Eaton 3BR1836L150R BR main lug loadcenter is designed without feed-thru lugs and includes a cover. This metallic loadcenter has an aluminum bus and is rated NEMA 3R. It supports type BR 1-inch breakers and has an interrupt rating of 25 kAIC. It is designed for 208 Star/120, 240 VAC applications.

• No feed-thru lugs
• Aluminum bus material
• NEMA 3R enclosure

Product Highlights

The Eaton BR main lug loadcenter is a 150A, 3-phase load center with 36 circuits and 18 spaces, suitable for residential and commercial electrical distribution.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 3BR1836L150R
• Country of Origin: USA

Technical Specifications

• Catalog Number: 3BR1836L150R
• Type: Main Lug
• Brand: Eaton
• Width: 14.31 in
• Height: 25 Inch
• Length: 5.19 Inch
• Voltage: 240 Volt
• Amperage: 150 Amp
• Standard: UL 50,UL 67
• Enclosure: 3R
• Wire Size: 300 kcmil
• Cover Type: Cover included
• Bus Material: Aluminum
• Interrupt Rating: 25 kAIC
• Number of Phases: 3 Phase
• Number of Spaces: 18
• Enclosure Material: Metal
• Number of Circuits: 36
• Breaker Type: BR/BWH
• Dimensions: 5.19 in L x 14.31 in W x 25 in H
• Enclosure Type: NEMA 3R
• Mounting Type: Flush
• Wiring Configuration: 4-Wire
• Voltage Rating: 120/208Y/240 VAC
• Amperage Rating: 150 A
• Phase: 3
• Volts AC: 208Y, 120/240
• Family / Style: BR
• IP/NEMA Rating: NEMA 3R
• Product Name: Eaton BR main lug loadcenter
• Product Length/Depth: 5.19 in
• Product Height: 25 in
• Product Width: 14.31 in
• Warranty: 10 year
• Certifications: UL 67 UL 50
• Catalog Notes: Suitable for use as service equipment when no more than 6 main disconnecting means are provided or when not used as lighting & appliance panelboard
• Product Type: Main lug loadcenter
• Special features: No feed-thru lugs
• Cover: Cover included
• Used with: Type BR 1-inch breakers
• Wire size: #1 AWG-300 kcmil Cu/Al
• Current Rating: 150 A
• Approvals: UL
• Net Weight: 28.2 lbs
• Gross Weight: 28.2 lbs
