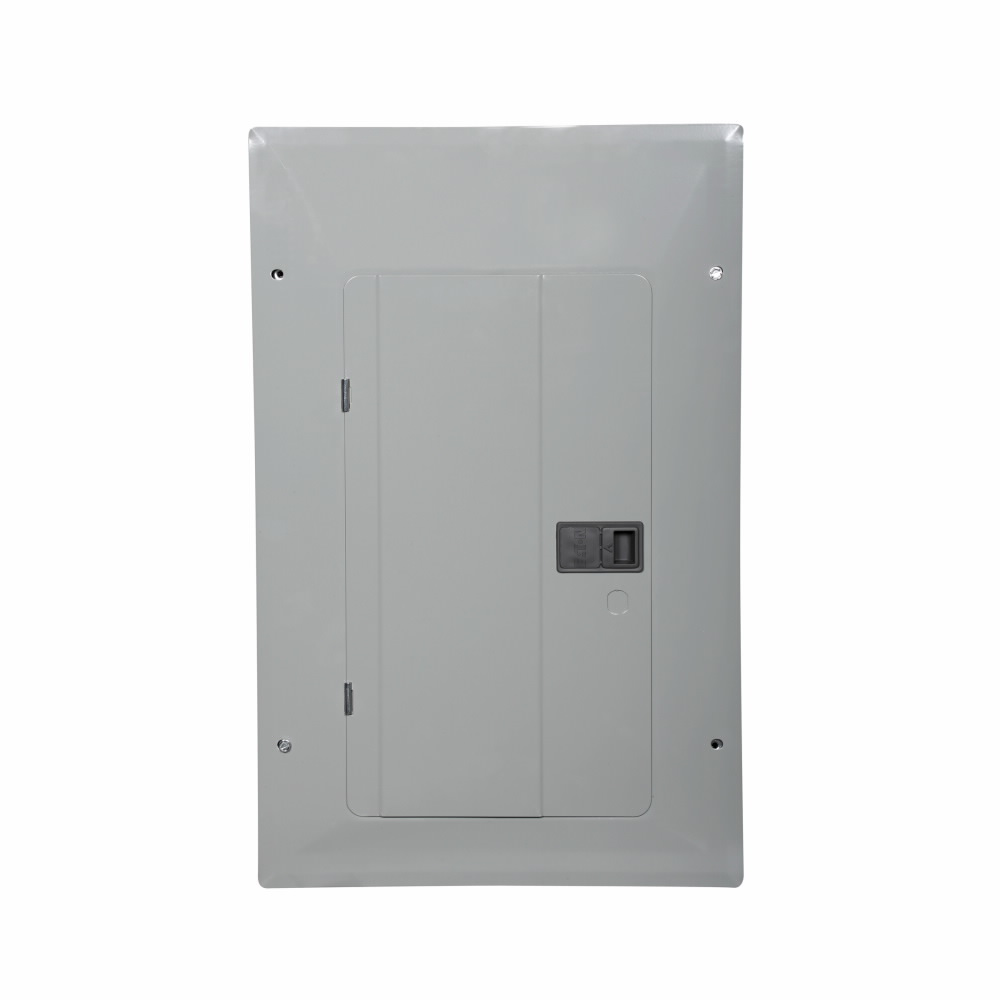

Eaton 3BR1836L150 208 Star/120/240 VAC 150 Amp 18-36 Circuit 3-Phase 4-Wire Main Lug Load Center

Product Description

The Eaton 3BR1836L150 is a load center designed for efficient power distribution. This unit operates at 208Y/120 or 240 volts and supports up to 150 amps of electrical service. It features a main lug configuration, allowing it to be used as a sub-panel in existing electrical service or as a main panel for service entrances.

• Supports three-phase electrical systems.
• Houses up to 36 circuits in 18 spaces.
• Compatible with #1-300 kcmil copper or aluminum wire.

Product Highlights

This load center is suitable for residential and commercial applications. It is built with NEMA rated enclosures to ensure reliable performance under various conditions.

Product Information

Standard Information

• Catalog Number: 3BR1836L150
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 208Y/120, 240 VAC
• Amperage Rating: 150 A
• Dimensions: 3.88 in (L) x 14.31 in (W) x 4.5 in (H)
• Number of Circuits: 36
• Number of Spaces: 18
• Enclosure Type: NEMA 1
• Interrupt Rating: 25 kAIC
• Phase: 3
• Wire Configuration: 4-Wire
