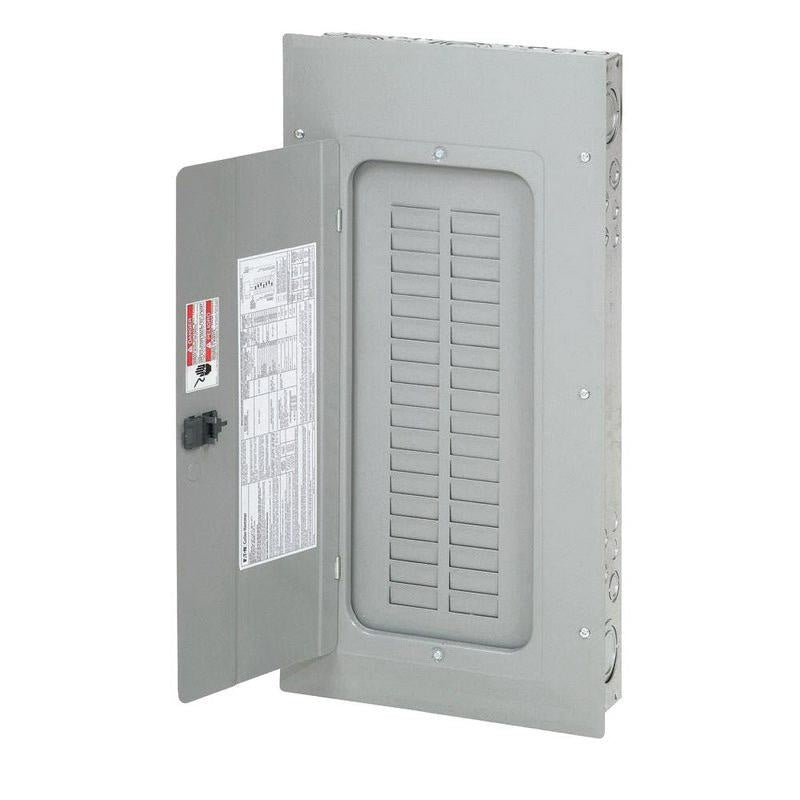

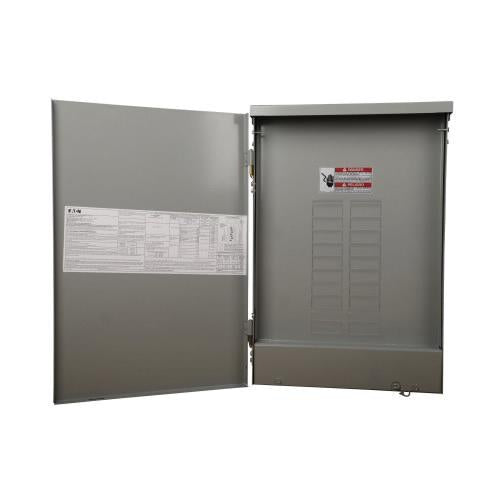

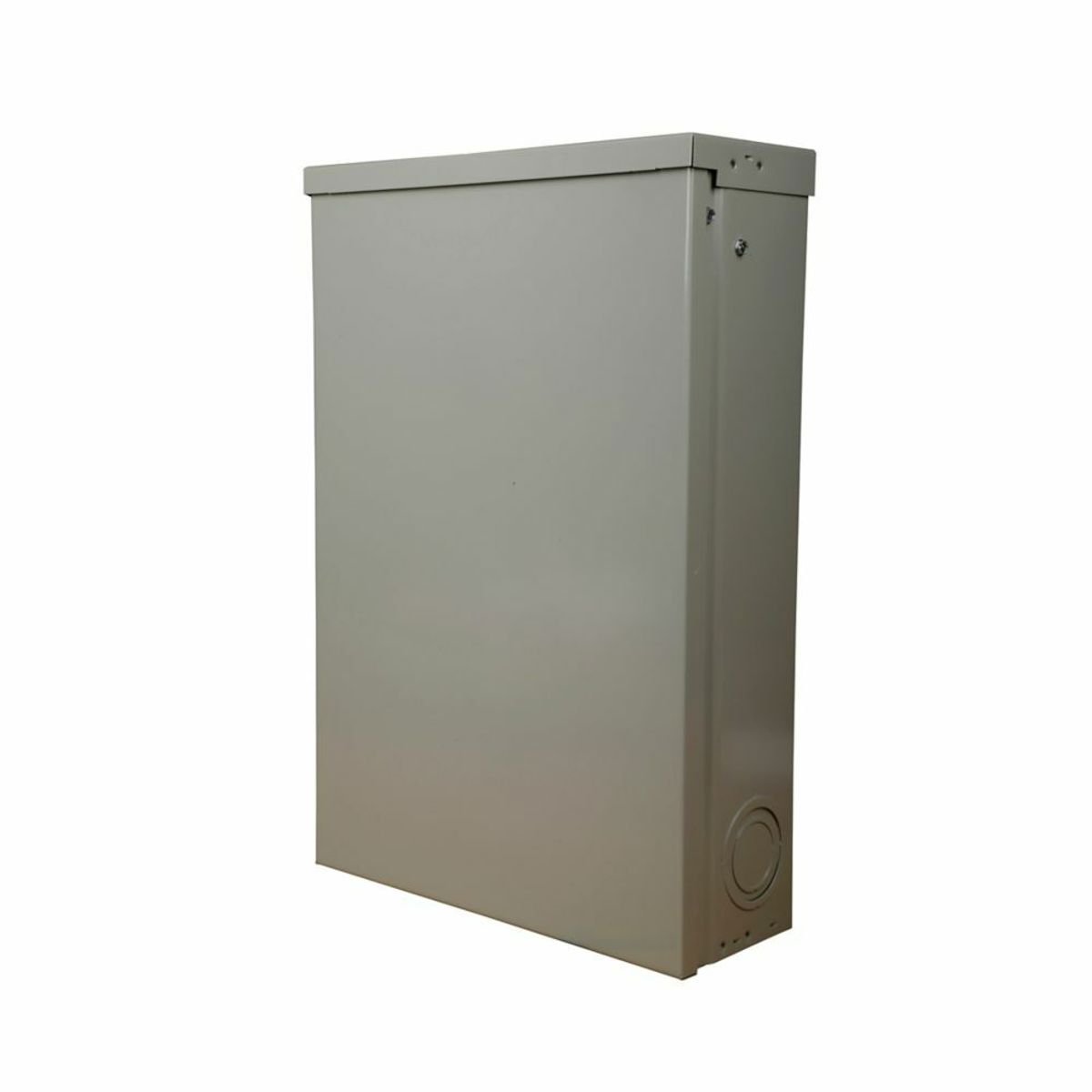

Eaton 3BR1224N125R Type BR Three-Phase Convertible Main Load Center 125 Amp 12 Space/24 Circuit NEMA 3R

Product Description

Eaton 3BR1224N125R is a three-phase convertible main load center designed for robust power distribution. Rated at 125 amps, this load center accommodates twelve spaces and twenty-four circuits. The unit operates on a 208Y/120, 240-volt configuration and meets NEMA 3R standards.

• Includes BREQS125 hold-down screw for securing circuit breakers.
• Supports both flush and surface mounting options.
• Durable metal housing ensures long-lasting use.

Product Highlights

This load center is suitable for indoor and outdoor applications, making it versatile for various installations.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part No: 3BR1224N125R

Technical Specifications

• Type: Three-Phase
• Amperage Rating: 125 A
• Voltage Rating: 208Y/120 VAC, 240 VAC
• Number of Spaces: 12
• Number of Circuits: 24
• Dimensions: 5.19 in Length x 14.31 in Width x 21 in Height
• Interrupt Rating: 10 kA
• Enclosure Type: NEMA 3R
• Wiring Configuration: 4-Wire
• Housing Material: Metal
