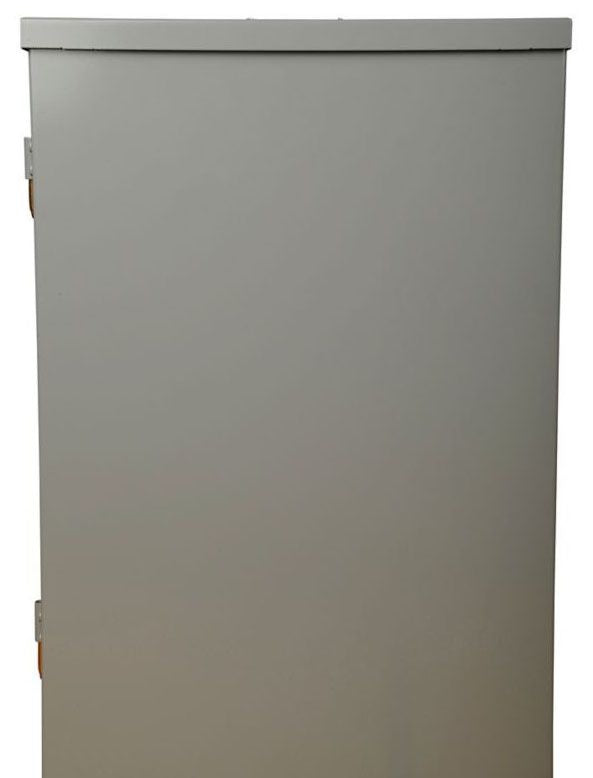

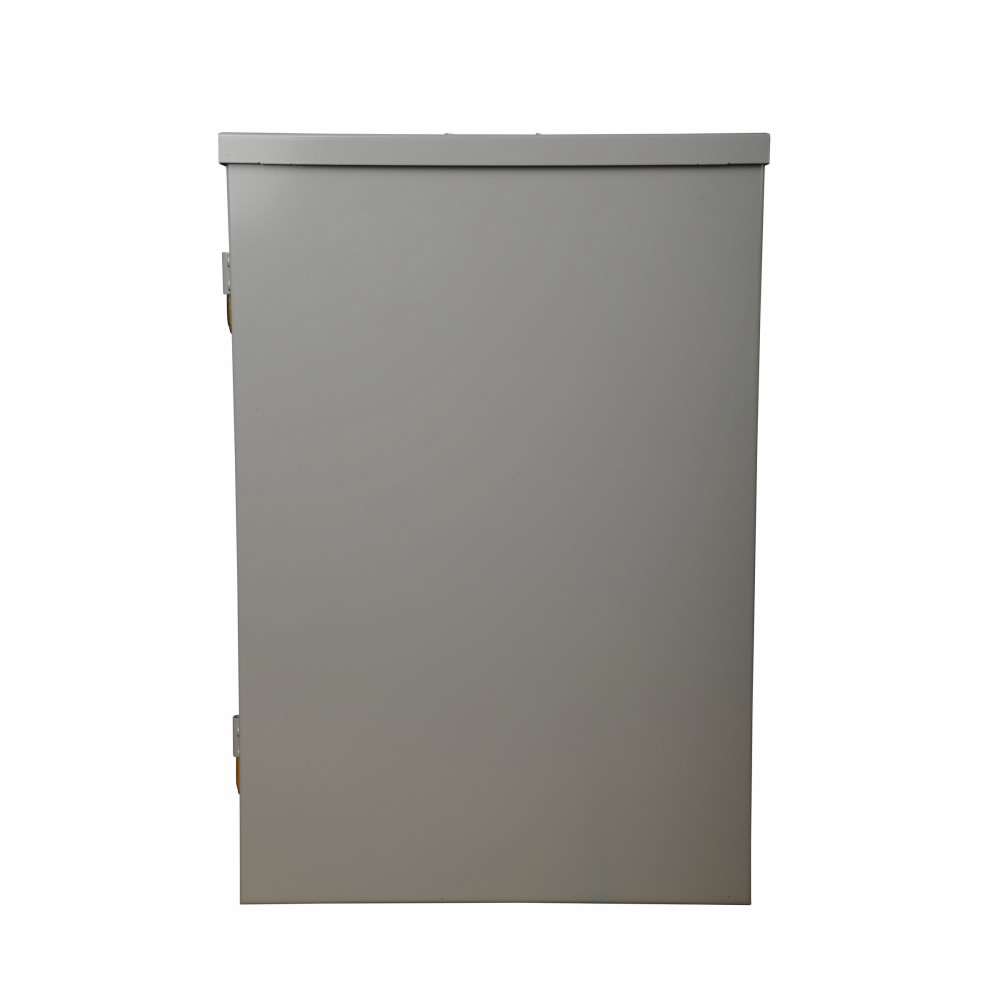

Eaton 3BR1224L125R 3-Phase Metallic Main Lug Loadcenter 120/208Y/240 VAC 125 A 24 Poles 10 kA Interrupt

Product Description

The Eaton 3BR1224L125R is a three-phase main lug load center designed for reliable power distribution. This load center operates at a voltage of 120/208Y/240 VAC and has a capacity of 125 Amps. It features 24 circuits and 12 spaces, making it suitable for various electrical applications.

• Includes integrated BREQS125 hold-down screw
• Complies with UL 67 and UL 50 standards
• Supports wire sizes from 6 to 2/0 AWG for both copper and aluminum

Product Highlights

This load center serves as the main breaker for service entrances or as a main lug when adding circuits to existing service. It protects the entire panel with its main breaker, which can also act as a service disconnect. The design allows for easy installation and maintains the reliability of the electrical system.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Main Lug Load Center

Technical Specifications

• MPN: 3BR1224L125R
• Amperage Rating: 125 A
• Voltage Rating: 120/208Y/240 VAC
• Dimensions: 5.19 in L x 14.31 in W x 21 in H
• Enclosure Type: NEMA 3R
• Number of Circuits: 24
• Number of Poles: 24
• Interrupt Rating: 10 kAIC
• Wire Size: 6 to 2/0 AWG
• Country of Origin: United States
