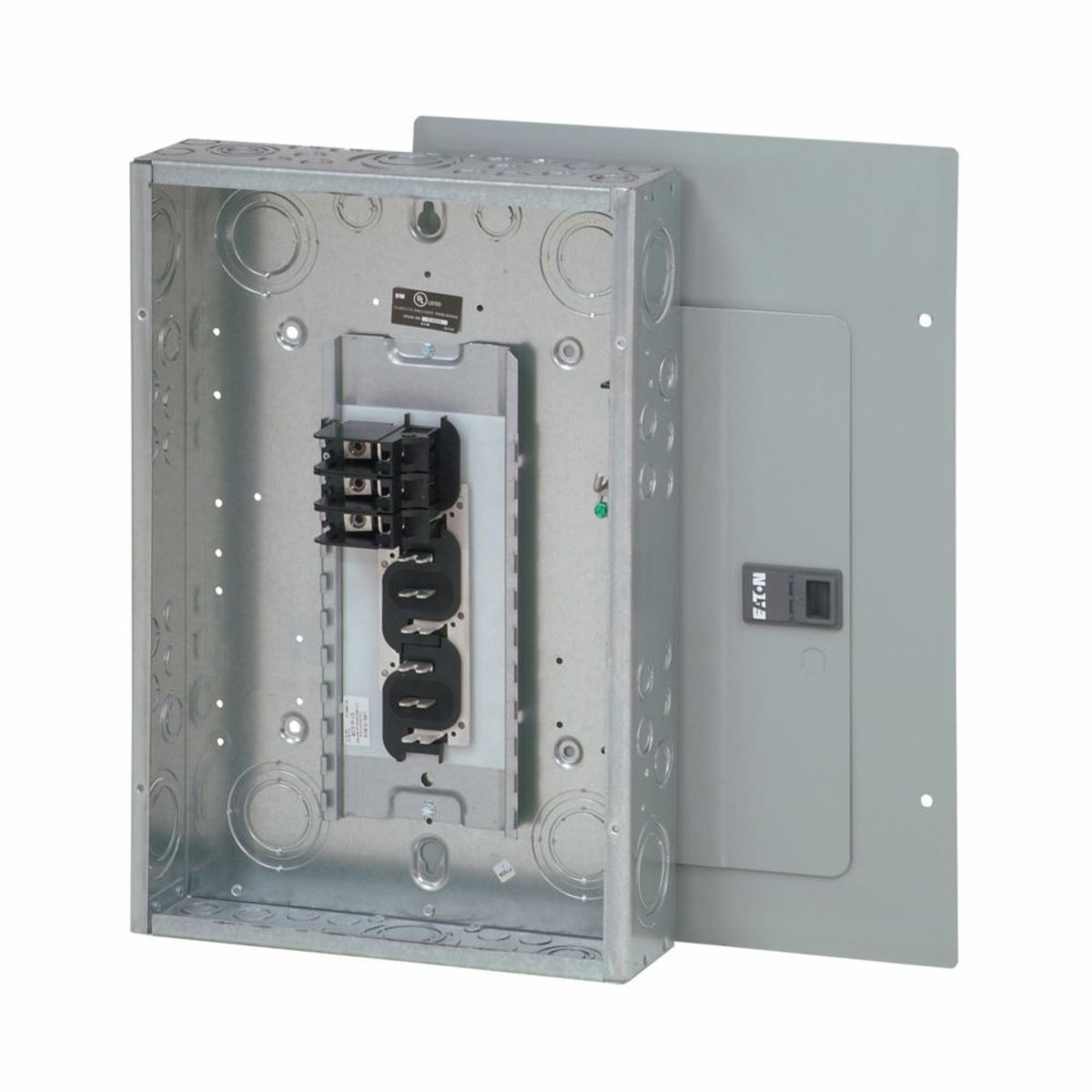

Eaton 3BR1224L125 3-Phase Metallic Main Lug Loadcenter 120/208Y/240 VAC 125 A 24 Poles 10 kA Interrupt

Product Description

The Eaton 3BR1224L125 is a main lug load center designed for easy installation of electrical systems. It handles 120/208Y/240 VAC with an amperage rating of one hundred twenty-five amps. This product has a total of twenty-four circuits and can accommodate various wiring configurations. It includes a cover and features no feed-thru lugs, making it a practical choice for both new installations and upgrades of existing systems.

• Houses branch circuit breakers and wiring for power distribution.
• Rated for three-phase operation with a ten kA interrupting capacity.
• Includes required hold-down screw for installation.

Product Highlights

The Eaton main lug load center is essential for managing electrical distribution safely and efficiently. Its straightforward design simplifies setup and regulation of power to individual circuits.

Product Information

Standard Information

• Brand: Eaton
• MPN: 3BR1224L125

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 120/208Y/240 VAC
• Number of Circuits: 24
• Enclosure Type: NEMA 1
• Number of Spaces: 12
• Interrupt Rating: 10 kAIC
• Wire Size: 6 to 2/0 AWG Cu/Al
• Application: Electrical Assemblies, Panels and OEMs Applications
