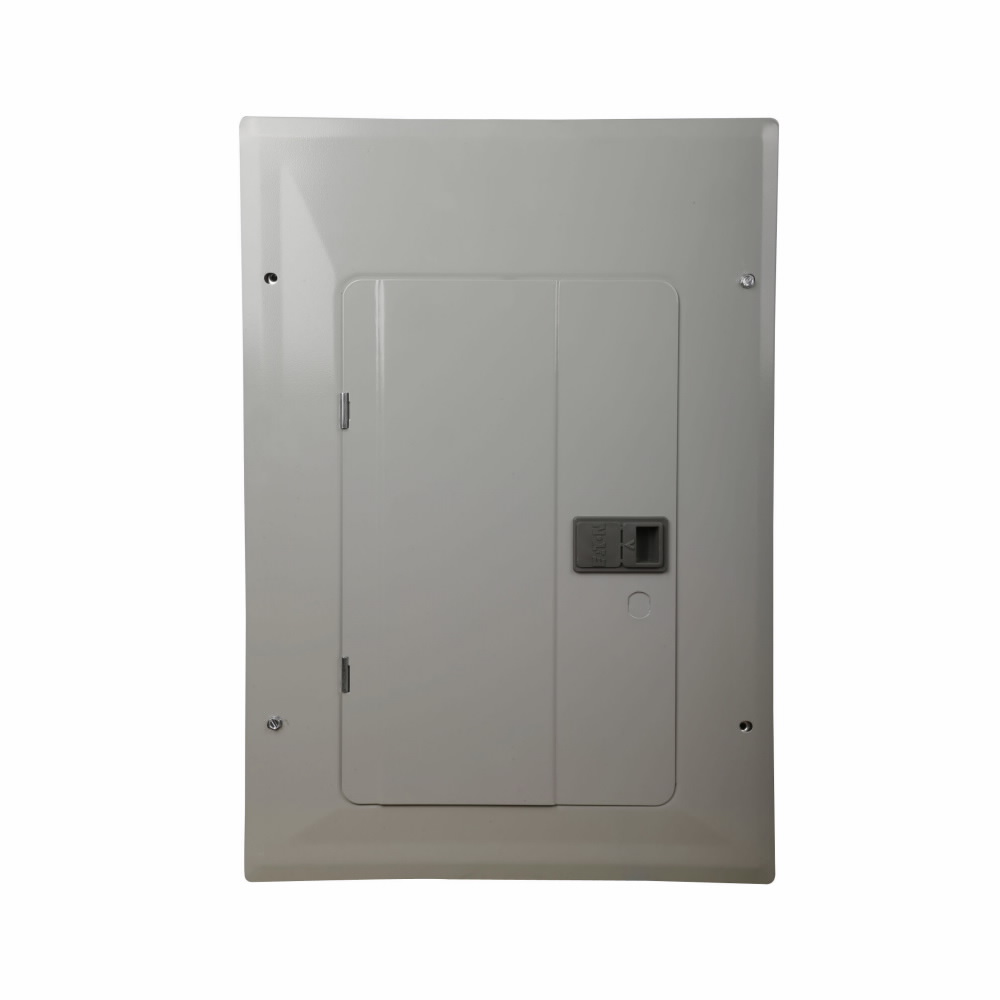

Eaton 3BR1224B100 3-Phase Main Circuit Breaker Load Center 100A 24 Circuits

Product Description

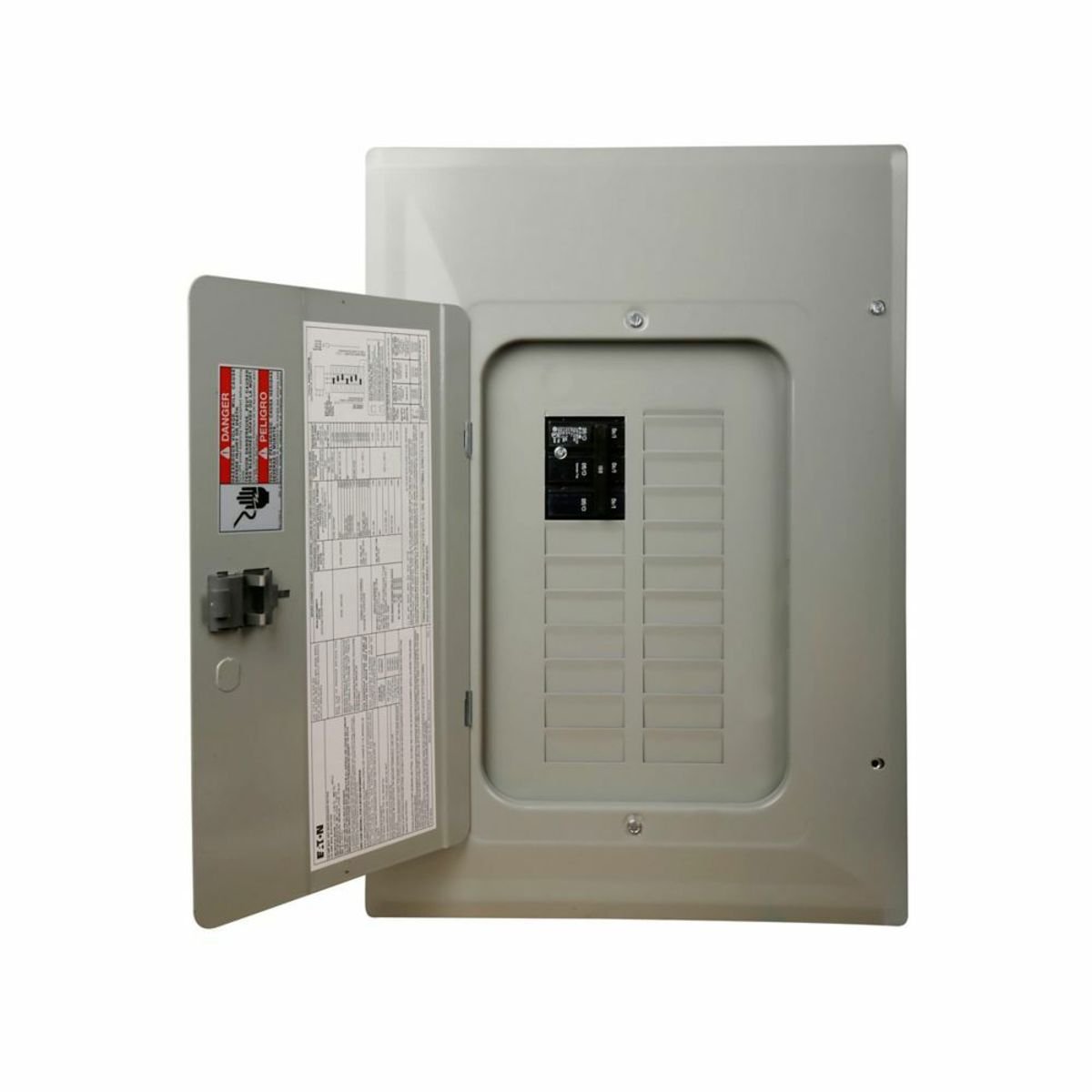

The Eaton 3BR1224B100 is a three-phase main circuit breaker load center. It provides reliable power distribution for various electrical applications. The load center features a main breaker rated at one hundred amps, designed to protect the entire electrical circuit. It includes space for twenty-four circuits and accommodates wire sizes ranging from four to one over zero AWG.

• Rating: 100 amps
• Features twelve spaces and twenty-four circuits
• Configured for four-wire setups

Product Highlights

This load center is designed for easy installation and efficient electrical management. It is ideal for service entrances and sub-panels.

Product Information

Standard Information

• Brand: Eaton
• MPN: 3BR1224B100

Technical Specifications

• Voltage Rating: 208Y/120, 240V
• Enclosure Type: NEMA 1 (galvanized steel)
• Dimensions: 3.88 inches (L) x 14.31 inches (W) x 21 inches (H)
• Weight: 23 lb
• Amperage Rating: 100A
• Number of Spaces: 12
• Number of Circuits: 24
• Interrupt Rating: 10 kAIC
• Wire Size: 4-0 AWG
• Special Features: No feed-thru lugs
