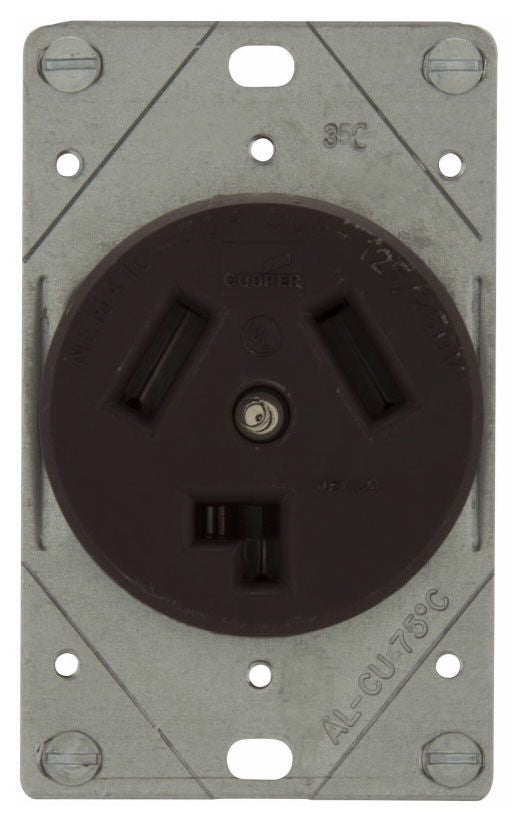

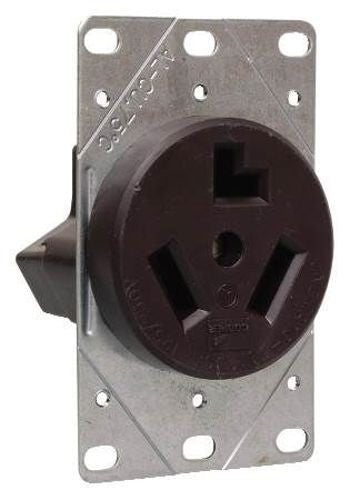

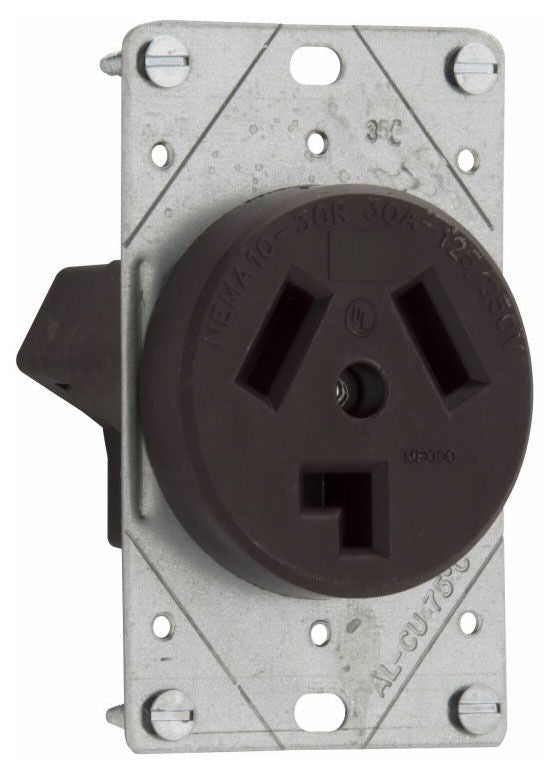

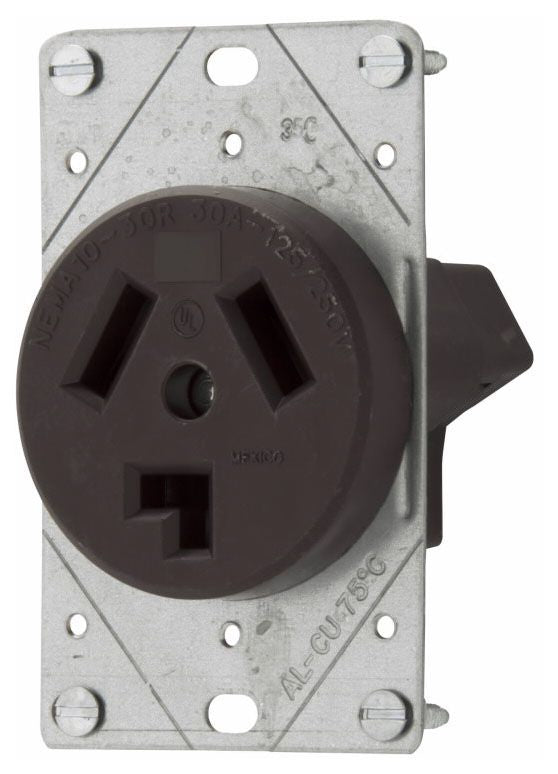

Eaton 38B-BOX Wiring 30-Amp Commercial and Industrial Dryer Power Receptacle with Box

Product Description

The EATON Wiring 38B-BOX is a 30-Amp commercial and industrial dryer power receptacle with box. Designed for high-amperage applications, this receptacle features a heavy-duty construction. It is a commercial grade flush receptacle with 3-pole, 3-wire non-grounding configuration. Matches best with plug S80.

• Heavy-duty design for high amperage industrial or commercial power
• Commercial grade flush receptacle with 3-pole, 3-wire non-grounding and box
• Suitable for dryer applications

Product Highlights

This Eaton power receptacle is ideal for commercial and industrial dryer power applications. It features a NEMA 10-30R configuration and is UL and cULus certified.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 38B-BOX
• Country of Origin: MEX

Technical Specifications

• Color: Brown
• Voltage: 250 Volts
• Certification: cULus, UL
• Item Model Number: 38B-BOX
• Part Number: 38B-BOX
• Total Power Outlets: 1
• Application: Power
• Amperage: 30 A
• Wiring: Three-pole; Three-wire; non grounding
• NEMA Configuration: NEMA 10-30R
• Material: Glass-filled nylon
• Mounting: Flush
• Connection: Screw
• Wire Size: NO.12 - 4 AWG
• Manufacturer: EATON
• Brand: Eaton
• Model / MPN: 38B-BOX
• Number of Items: 1.0
• Grade: Commercial
• Number Of Poles: 3
• Number of Wires: 3
• Standard & Approvals: NOM 426, RoHS Complaint, UL 498, UL 943
• Product Length/Depth: 2.226 in
• Product Height: 3.674 in
• Product Width: 2.256 in
• Compliances: RoHS Compliant, NAFTA
• Product Type: Power device receptacle
• Used with: S80
• Special features: Dryer
• Amperage Rating: 30A
• Voltage rating: 125/250 V
• Wiring method: Back
• Mounting method: Flush
• Connection type: Screw
• Style: Power
• Allowable wire size: #12-4 AWG
• Torque rating: 25 lbf-inch
• Design type: Receptacle
• Receptacle type: Three-pole, three-wire, non grounding
• Temperature Rating: -4 to 158 deg F
• Operating Temperature: -20 to 75 deg C
• Suitable for: 80 Power Plug
• Wiring Type: Back
• Current Rating: 30 A
• Power Plug Type: Type B - 3 pin (North American)
• Connector Type: Plug In
• Connectivity Technology: Power Cable
• Specification Met: UL, cULus
• Item Type Name: wall plates
• Unit Count: 1.0 Count
