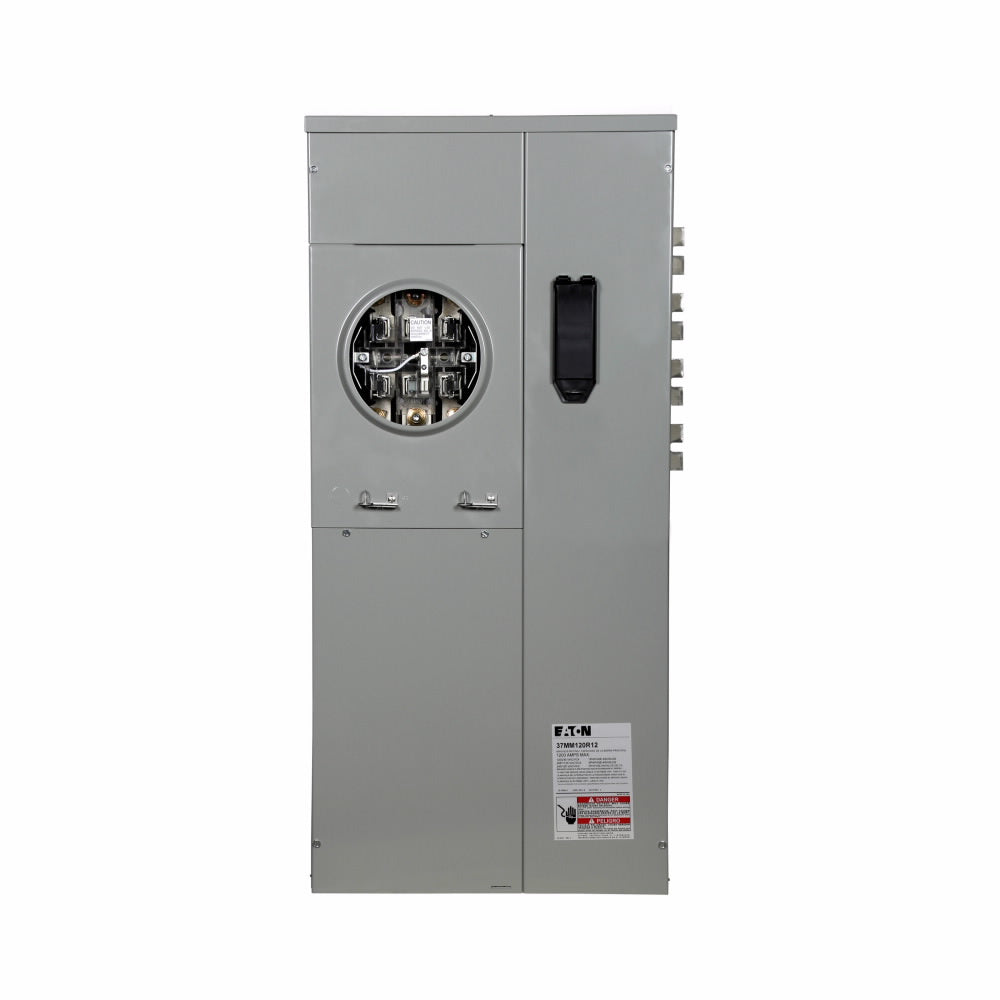

Eaton 37MM120R12 Meter Stack Module 200 A (8.75 in x 18.25 in x 25.38 in)

Product Description

Eaton 37MM120R12 is a meter stack module rated 208Y/120 VAC and 200 A for three-phase service, housed in a NEMA 3R enclosure and built for bolted-on mounting. It features four horizontal cross buses and is constructed to bolt to mains and residential stacks with a 100 kA short-circuit rating. The module supports meter sockets with test bypass and provides separate covers for tenant breaker and wireway access in light commercial installations.

• 208Y/120 VAC, 200 A rating; 3-phase configuration with 100 kA short-circuit rating
• Bolted-on mounting in a NEMA 3R enclosure; dimensions 8.75 in L x 18.25 in W x 25.38 in D
• Four horizontal cross buses, meter socket test bypass options, UL listed; compatible with bolt-on tenant breakers EHD3_, CCV3_X, CCVH3_X, CVS3_X, CV3_X and CVH3_X

Product Highlights

Meter stack module for light commercial use; bolted-on NEMA 3R enclosure; 100 kA interrupt rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 37MM120R12
