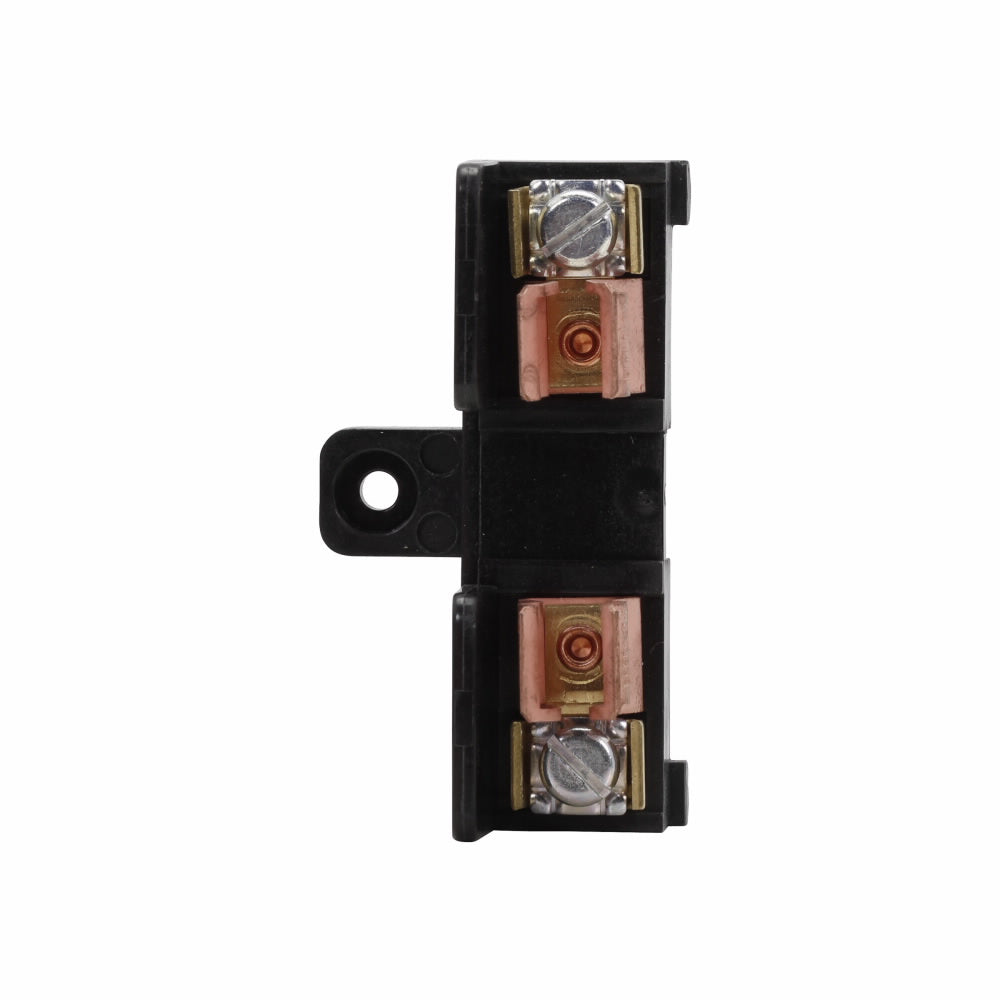

Eaton 3743 BUS FUSE BLOCK 600 VAC 30 A Add-On Fuse Block

Product Description

The Eaton BUS FUSE BLOCK, model MPN 3743, is designed for effective electrical protection. This add-on fuse block operates at a voltage rating of six hundred volts AC and has an amperage rating of thirty amps. It consists of one pole and is classified as CC. The product is suitable for chassis mounting and is compatible with screw connections.

• Add-on design for easy expansion
• Rated for 600 VAC and 30 A
• Constructed from durable phenolic material

Product Highlights

This fuse block allows for secure and reliable circuit protection, accommodating fuses of one and a half inches in length and thirteen thirty-seconds of an inch in diameter.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171273712

Technical Specifications

• MPN: 3743
• Type: Add-On
• Class: CC
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Connection Type: Screw
• Mounting Type: Chassis
• Number of Poles: 1
• Fuse Length: 1-1/2 in
• Fuse Diameter: 13/32 in
• Material: Phenolic
• Dimensions: 2.56 in L x 1.34 in W x 1.125 in H
• Standards/Approvals: UL File No. E14853|CE Certified
