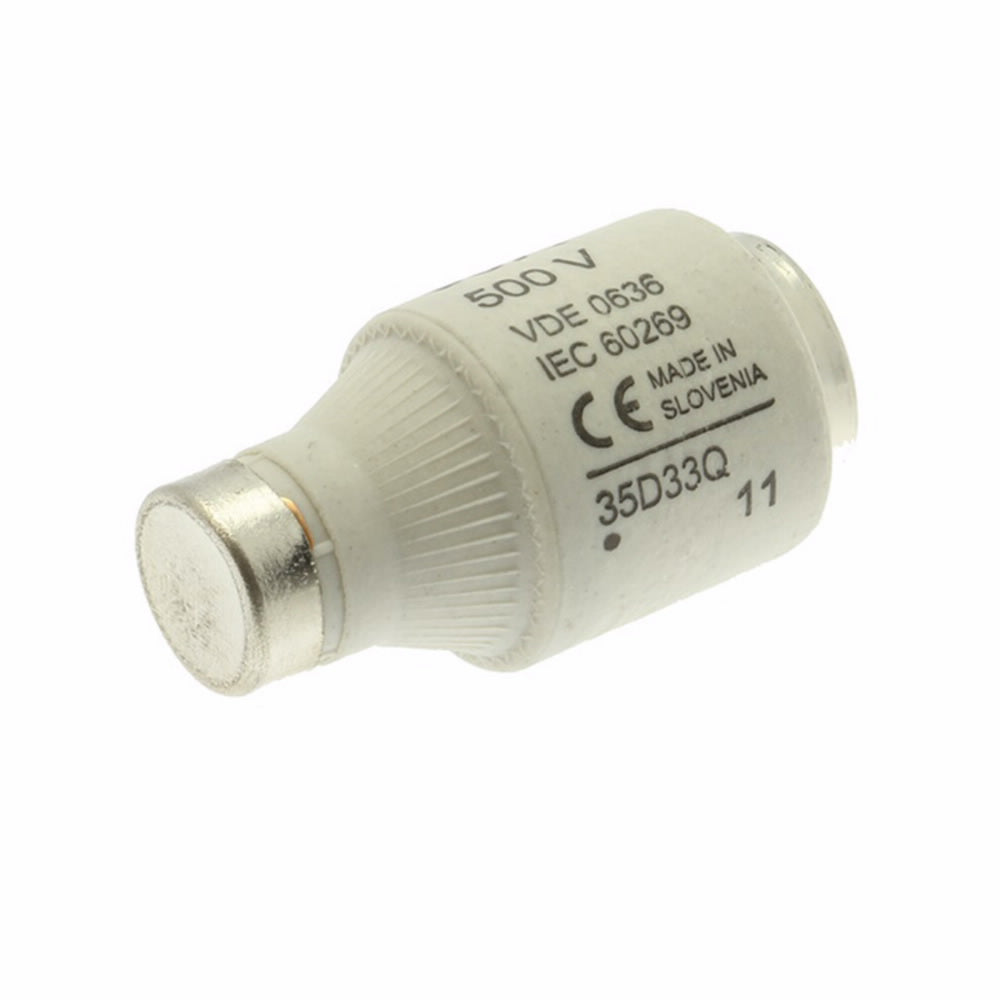

Eaton 35D33 BUS 500V TYPE D FUSE LINKS TIME DELAY 35A gG-gL DIII

Product Description

The Eaton 35D33 Bussmann Fuse Link is designed for low voltage applications. It is a non-indicating time delay fuse link rated for five hundred volts AC and thirty-five amps. This fuse link is compatible with E33/DIII size screw caps and features a rated breaking capacity of one hundred kiloamperes.

• Low voltage non-indicating design
• Time delay feature for inductive and resistive loads
• Rated breaking capacity of up to one hundred kiloamperes

Product Highlights

This fuse link is ideal for protecting electrical assemblies and power distribution systems.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171283414

Technical Specifications

• Type: Low Voltage Non-Indicating Time Delay
• Application: Electrical Assemblies, Panels, Control Panels for Machines
• Voltage Rating: 500 VAC
• Amperage Rating: 35 A
• Dimensions: 27.5 mm Diameter x 50 mm Length
• Material: Ceramic
• Mounting Type: Holder
• Standards/Approvals: CCC Certified, CE Marking, UL Listed
