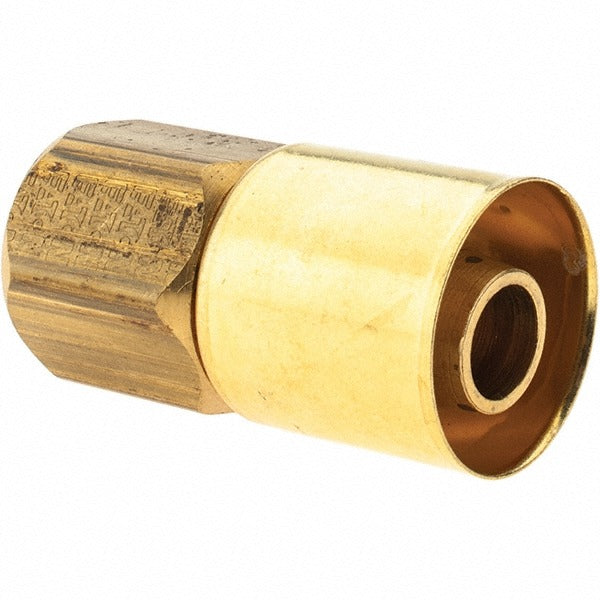

Eaton 33808P-408 Hydraulic Hose Swivel Fitting Brass

Product Description

The EATON 33808P-408 is a straight hydraulic hose swivel fitting designed for use in high-pressure hydraulic fluid lines. Manufactured from brass, this female SAE threaded fitting accommodates a 1/2-inch (0.5 inches) hose inner diameter and features a 3/4-16 thread size. The swivel design allows the hose to rotate during installation and operation, reducing torsional stress on the hose assembly. It carries a maximum working pressure rating of 4000 psi, making it suitable for demanding hydraulic system applications. Licensed hydraulic system technicians and industrial maintenance professionals are the primary installers.

This fitting is intended for use with EC038 hose and is well suited to mobile hydraulic equipment, industrial machinery, and fluid power systems requiring a reliable threaded swivel connection. The straight body geometry makes it appropriate for in-line routing where a direct hose-to-port connection is needed. It conforms to DOT FMVSS 106, SAE J1131, SAE J2494-3, and SAE J844 Type B standards, making it applicable across a broad range of compliant hydraulic assemblies in both industrial and mobile equipment environments.

Key Features

• Straight swivel fitting reduces torsional hose stress during installation and service
• Brass construction offers corrosion resistance in hydraulic fluid environments
• Rated to 4000 psi maximum working pressure
• Female SAE threaded connection with 3/4-16 thread size
• Meets DOT FMVSS 106, SAE J1131, SAE J2494-3, and SAE J844 Type B standards
• Compact overall length of 1.36 inches suitable for tight routing applications

Compatibility

Designed for use with EC038 hose with a 1/2-inch hose inside diameter. Conforms to SAE P-Series fitting standards.

Installation Notes

This fitting should be installed by a qualified hydraulic technician familiar with fluid power system assembly practices. Depressurize and fully relieve hydraulic system pressure before removing or installing any fittings. Use appropriate thread sealant or follow the system manufacturer's sealing specifications for SAE straight thread connections. Inspect the swivel joint and thread engagement before returning the system to service.
