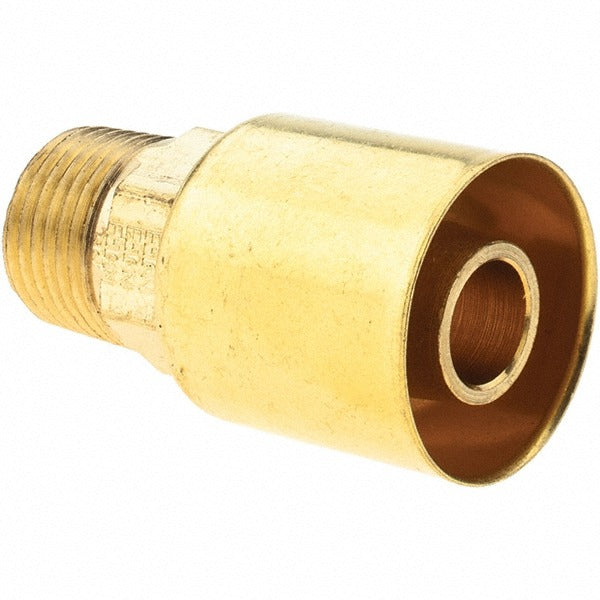

Eaton 33808P-106 Hydraulic Hose Mpt Fitting Brass 8000 Psi

Product Description

The EATON 33808P-106 is a straight male pipe thread (MPT) hydraulic hose fitting machined from brass and designed for use with EC038 hose assemblies. It accepts a 1/2-inch hose inside diameter and is threaded 3/8-18 PTF SAE for a secure, leak-resistant connection. The fitting carries a maximum working pressure rating of 8000 psi, making it suitable for demanding hydraulic circuits in mobile and industrial equipment. At 1.73 inches in overall length, it is a compact inline end fitting installed by hydraulic technicians and fluid power mechanics when assembling or repairing hose lines.

This fitting is intended for hydraulic hose assemblies operating under high-pressure conditions in mobile equipment, industrial machinery, and commercial vehicle systems. It is specifically rated for use with EC038 hose and complies with DOT FMVSS 106, SAE J1131, SAE J2494-3, and SAE J844 Type B standards, making it appropriate for applications where regulatory compliance is required. The straight configuration suits direct end-connection layouts where no angle offset is needed.

Key Features

• Straight MPT configuration for direct inline hose termination
• Brass construction provides corrosion resistance in hydraulic fluid environments
• 8000 psi maximum working pressure rating for high-pressure hydraulic circuits
• 3/8-18 PTF SAE thread form ensures a pressure-tight seal
• Compliant with DOT FMVSS 106, SAE J1131, SAE J2494-3, and SAE J844 Type B
• Series P fitting designed for use with EC038 hose

Compatibility

Rated for use with EC038 hose with a 1/2-inch inside diameter. Verify hose series and thread specification against your assembly requirements before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and drain the hydraulic system completely before removing or installing any fittings. Inspect threads and sealing surfaces for damage before assembly, and follow the fitting manufacturer's assembly procedure for PTF SAE threaded connections. Do not exceed the rated working pressure of 8000 psi in service.
