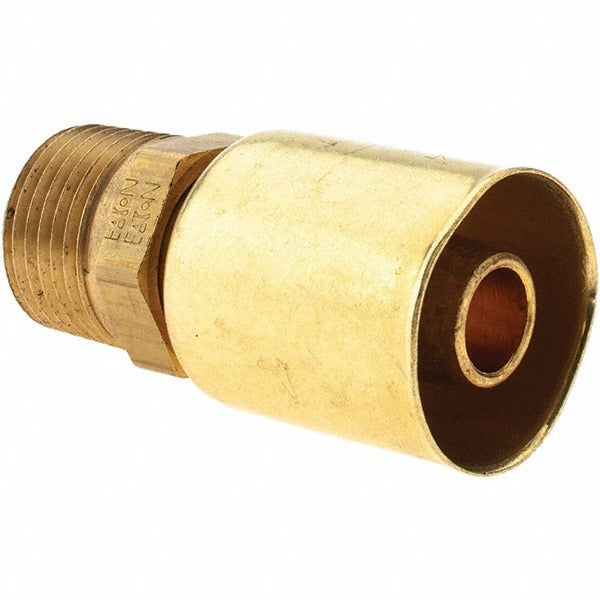

Eaton 33806P-J06 Hydraulic Hose Swivel Fitting Brass

Product Description

The EATON 33806P-J06 is a straight swivel fitting designed for hydraulic hose assemblies in fluid-power systems. Manufactured from brass with a PTF SAE shaft type and threaded connection, this fitting accommodates a 3/8-inch hose inside diameter and is rated to a maximum working pressure of 8,000 psi. At 1.66 inches in overall length and weighing 0.01 pounds, it is a compact, lightweight component intended for use with EC038 hose. Licensed plumbers, hydraulic technicians, and fluid-power system assemblers install this fitting in line connections where a rotating swivel interface is required to prevent hose twist during assembly or operation.

This fitting is suited for hydraulic and pneumatic hose assemblies where a straight swivel connection is needed. Its brass construction makes it appropriate for moderate-corrosion environments encountered in mobile equipment, industrial machinery, and vehicle brake or air-line systems. The 3/8-18 thread size and PTF SAE shaft are common specifications in North American fluid-power and automotive air-brake plumbing. It is sold individually and is compatible with EC038 hose per the manufacturer specification.

Key Features

• Straight swivel fitting design prevents hose twist during installation and under service conditions
• Brass construction provides corrosion resistance in fluid-power and pneumatic applications
• Maximum working pressure of 8,000 psi suits demanding hydraulic service
• 3/8-18 PTF SAE threaded connection for standard North American fluid-power compatibility
• Compact overall length of 1.66 inches minimizes space requirements in tight plumbing runs
• Meets DOT FMVSS 106, SAE J1131, SAE J2494-3, and SAE J844 Type B standards

Compatibility

Specified for use with EC038 hose per manufacturer data. Designed as an OEM-style swivel fitting for hydraulic and pneumatic hose assemblies using a 3/8-inch hose inside diameter and 3/8-18 PTF SAE threaded connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with fluid-power system assembly. Depressurize and bleed the hydraulic or pneumatic circuit completely before disconnecting or installing any fittings. Use appropriate thread sealant compatible with the system fluid and follow SAE and DOT standards referenced on the fitting for torque and assembly procedures. Inspect hose and fitting interfaces for damage before pressurizing the completed assembly.
