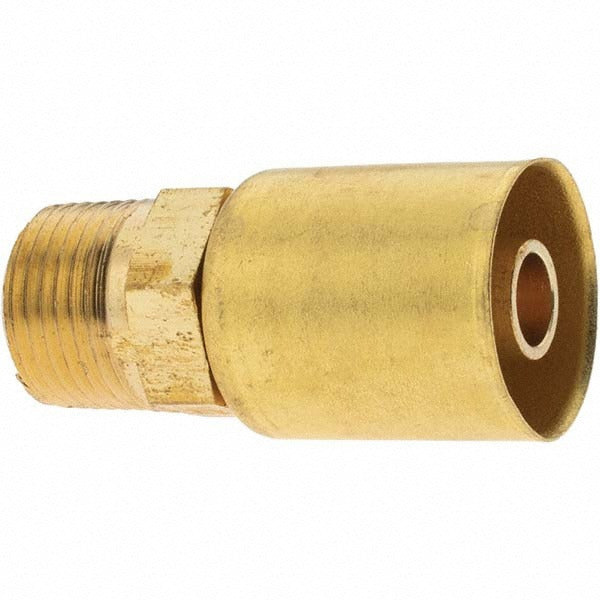

Eaton 33806P-106 Hydraulic Hose Mpt Fitting Brass

Product Description

The EATON 33806P-106 is a straight MPT (Male Pipe Thread) hydraulic hose fitting machined from brass and designed for use with EC038 hose assemblies. It features a PTF SAE thread form on a 3/8-18 thread size, with a 0.375-inch hose inside diameter and 0.375-inch hose outside diameter. The fitting has an overall length of 1.72 inches and carries a maximum working pressure rating of 8,000 psi. It is installed by hydraulic system technicians and mechanics working on fluid power lines in mobile and industrial applications where a threaded male pipe connection is required.

This fitting is suited for hydraulic hose assemblies operating at elevated pressures in both mobile equipment and stationary industrial systems. It is specifically designed for use with EC038 hose and is manufactured to Series P specifications. Its straight geometry makes it a direct in-line connection fitting for runs where no directional change is needed at the hose end. Trade professionals installing or repairing hydraulic lines will find this fitting compliant with DOT FMVSS 106, SAE J1131, SAE J2494-3, and SAE J844 Type B standards.

Key Features

• Straight MPT fitting with PTF SAE thread form, 3/8-18 thread size
• Brass construction for corrosion resistance in hydraulic fluid environments
• Maximum working pressure of 8,000 psi
• Designed for use with EC038 hose assemblies
• Meets DOT FMVSS 106, SAE J1131, SAE J2494-3, and SAE J844 Type B standards
• Overall length of 1.72 inches with threaded connection type

Compatibility

Designed for use with EC038 hose. Verify hose inside diameter of 0.375 inches and thread size of 3/8-18 before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with fluid power systems and applicable safety procedures. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Use appropriate thread sealant compatible with the system fluid and verify torque requirements per the system manufacturer's specifications. Inspect threads and sealing surfaces for damage before assembly.
