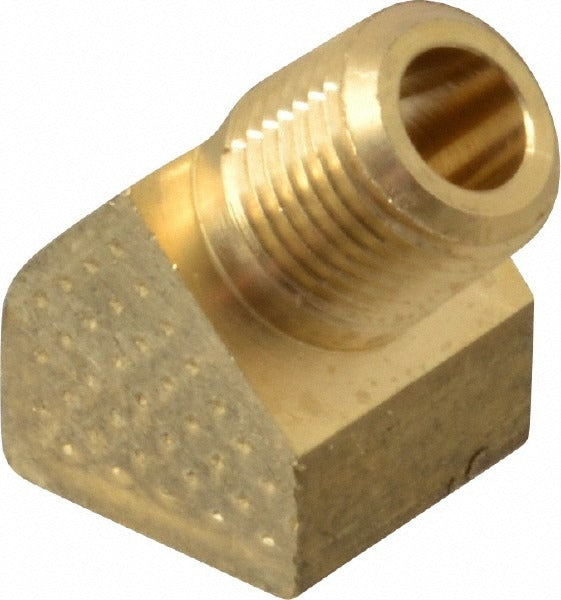

Eaton 3350X2 45 Degree Street Elbow 1/8 Inch Brass

Product Description

The EATON 3350X2 is a 45-degree street elbow designed for industrial pipe systems requiring a direction change at a 45-degree angle within a single fitting. It features a 1/8 inch male NPT tapered thread (MNPTF) on one end and a 1/8 inch female NPT tapered thread (FNPTF) on the other, allowing it to thread directly into a female-threaded port without a separate nipple. Constructed from brass, this fitting handles a maximum working pressure of 1,200 psi and a temperature range of -65 degrees F to 250 degrees F. Plumbers, pipefitters, and HVAC technicians use it in low-volume compressed air, fuel, hydraulic, and instrumentation lines.

This fitting is suited for residential and light commercial applications wherever a compact 45-degree directional change is needed in a 1/8 inch NPT pipe line. Common install scenarios include instrument taps, pressure gauge ports, pneumatic controls, and small-diameter fuel or refrigerant pilot lines. Its street configuration eliminates one threaded joint compared to a standard elbow-plus-nipple assembly, saving space in tight panel and manifold installations.

Key Features

• 45-degree street elbow combines male and female NPT threads in a single body for compact routing
• Brass construction provides corrosion resistance and compatibility with a wide range of fluids and gases
• Rated to 1,200 psi maximum working pressure for use in demanding pneumatic and hydraulic circuits
• Wide temperature range of -65 degrees F to 250 degrees F suits both cryogenic-adjacent and high-heat service environments
• Meets SAE 130339 standard for industrial pipe fittings
• 1/8 inch MNPTF x FNPTF thread configuration threads directly into female-ported components without additional hardware

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/8 inch NPT threaded pipe systems in industrial, HVAC, plumbing, and instrumentation applications.

Installation Notes
