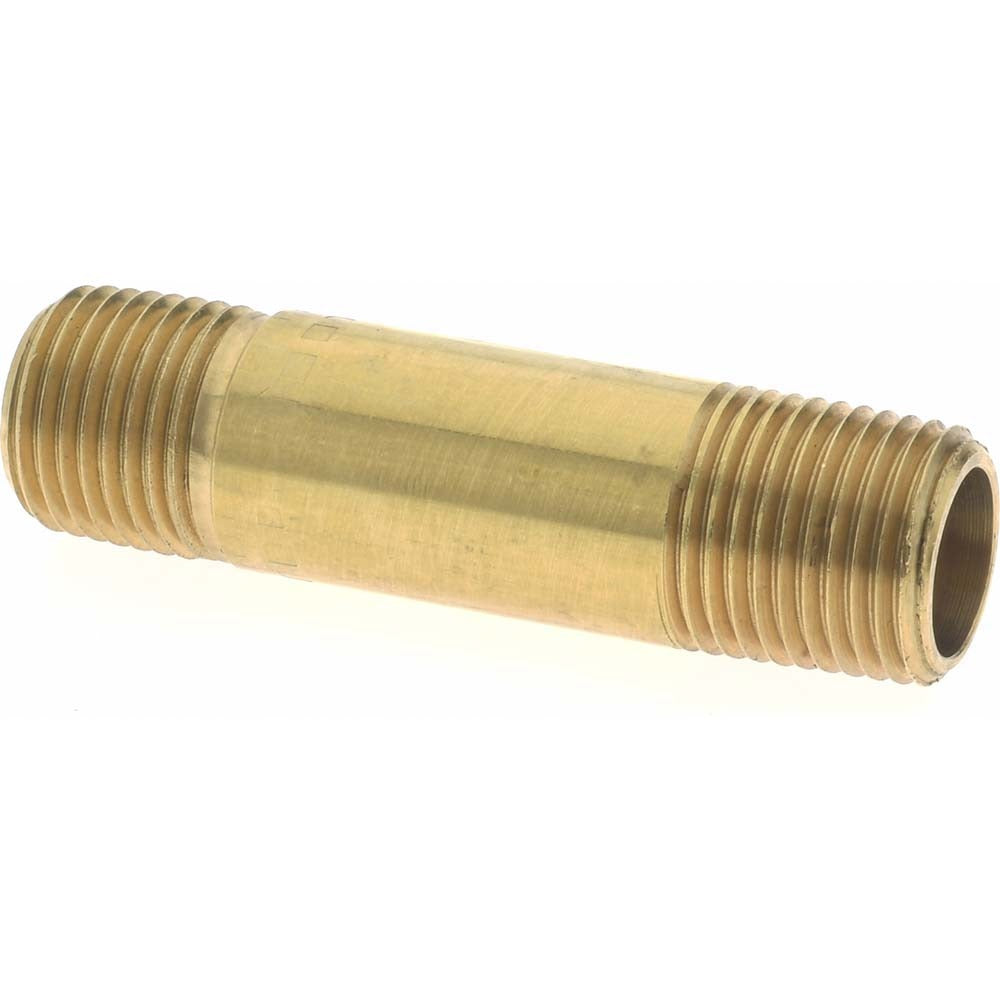

Eaton 3327X2 Long Nipple 1/8 Inch Mnptf 1200 Psi

Product Description

The EATON 3327X2 is a long nipple pipe fitting designed for industrial fluid and pneumatic systems requiring a reliable threaded connection. It features a 1/8 inch male MNPTF thread and is rated for a maximum working pressure of 1200 psi. The fitting measures 1.5 inches in overall length and is built to handle temperatures ranging from -65 degrees F to 250 degrees F. Licensed plumbers, pipefitters, and industrial maintenance technicians install this type of fitting when extending or connecting threaded pipe runs in tight-clearance applications.

This long nipple is suited for use in industrial piping systems, pneumatic lines, hydraulic circuits, and fluid transfer assemblies. Its compact 1/8 inch MNPTF thread size makes it a common choice for instrument connections, gauge ports, and low-flow branch lines. It is appropriate for both commercial and light industrial installations where a short threaded extension between two female-threaded components is required.

Key Features

• 1/8 inch male MNPTF thread for leak-resistant tapered connections
• 1200 psi maximum working pressure rating
• Operating temperature range of -65 degrees F to 250 degrees F
• 1.5 inch overall length suits tight-clearance installations
• Compact, single-piece construction with no internal moving parts

Compatibility

Designed as an OEM-style replacement long nipple for industrial pipe systems using 1/8 inch MNPTF female-threaded ports and fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable ASME and local piping codes. Depressurize and isolate the line completely before removing or installing any threaded fitting. Apply thread sealant or PTFE tape appropriate for the service fluid and pressure rating. Do not overtighten, as this can crack female-threaded ports or distort the fitting threads.
