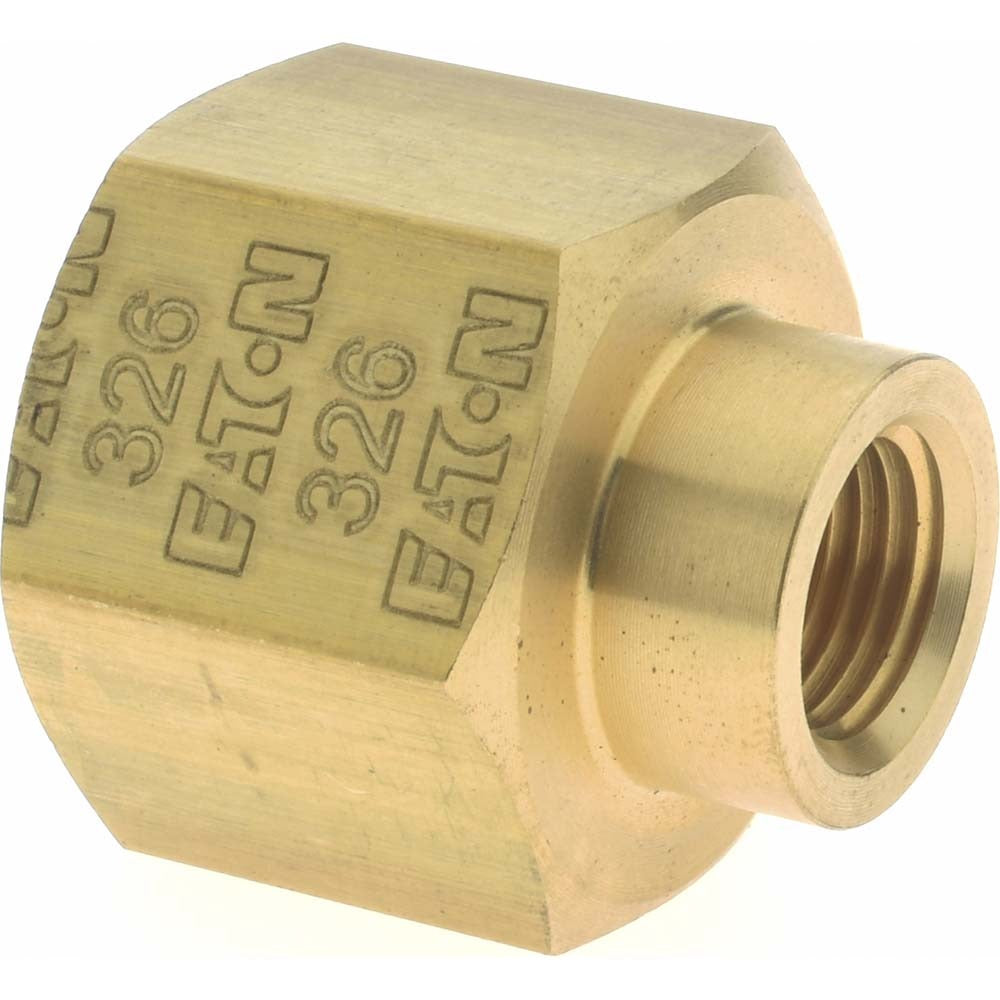

Eaton 3300X6X2 Brass Pipe Coupling 3/8 X 1/8 Fnptf 1200 Psi

Product Description

The EATON 3300X6X2 is a straight brass pipe coupling with female FNPTF threads on both ends, sized 3/8 inch by 1/8 inch. It connects two threaded pipe sections in a straight run and is rated for up to 1,200 psi working pressure and a temperature range of -65 degrees F to 250 degrees F. The all-brass construction resists corrosion and handles moderate-pressure fluid and gas lines. This fitting is installed by licensed plumbers, pipefitters, and HVAC technicians working on compressed air, hydraulic, fuel, and general-purpose fluid systems.

This coupling is suited for industrial and commercial piping applications where a reducing straight connection between 3/8 inch and 1/8 inch FNPTF threaded lines is required. The FNPTF thread standard ensures a pressure-tight connection without relying on sealant alone, making it appropriate for pneumatic and hydraulic circuits as well as low-pressure fuel and water lines. Its compact 15/16 inch overall length makes it practical in tight installations where space is limited.

Key Features

• Rated to 1,200 psi maximum working pressure for reliable service in demanding piping systems
• Wide temperature range of -65 degrees F to 250 degrees F suits both refrigeration and steam-adjacent applications
• FNPTF thread standard on both ports delivers a pressure-tight mechanical seal
• Straight coupling shape simplifies inline pipe connections and repairs
• Brass construction provides corrosion resistance in wet and fuel-contact environments
• Compact 15/16 inch overall length fits confined spaces in equipment enclosures and panels

Compatibility

Designed as a standard FNPTF reducing straight coupling for 3/8 inch by 1/8 inch female-threaded piping systems in industrial, commercial, and HVAC applications conforming to SAE 130138.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or HVAC technician familiar with threaded pipe assemblies. Depressurize and isolate the system before removing or installing any fitting. FNPTF threads are designed for a dry-seal connection, but verify local code requirements regarding the use of thread sealant tape or compound. Use an appropriately sized wrench on the 7/8 inch hex to avoid distorting the fitting body.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
