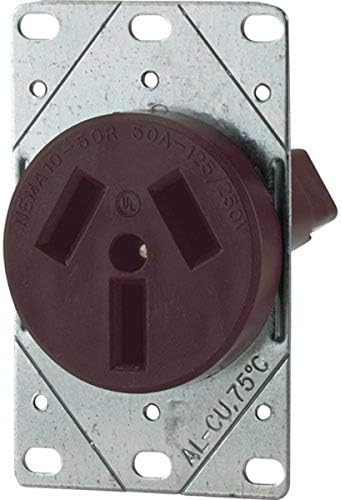

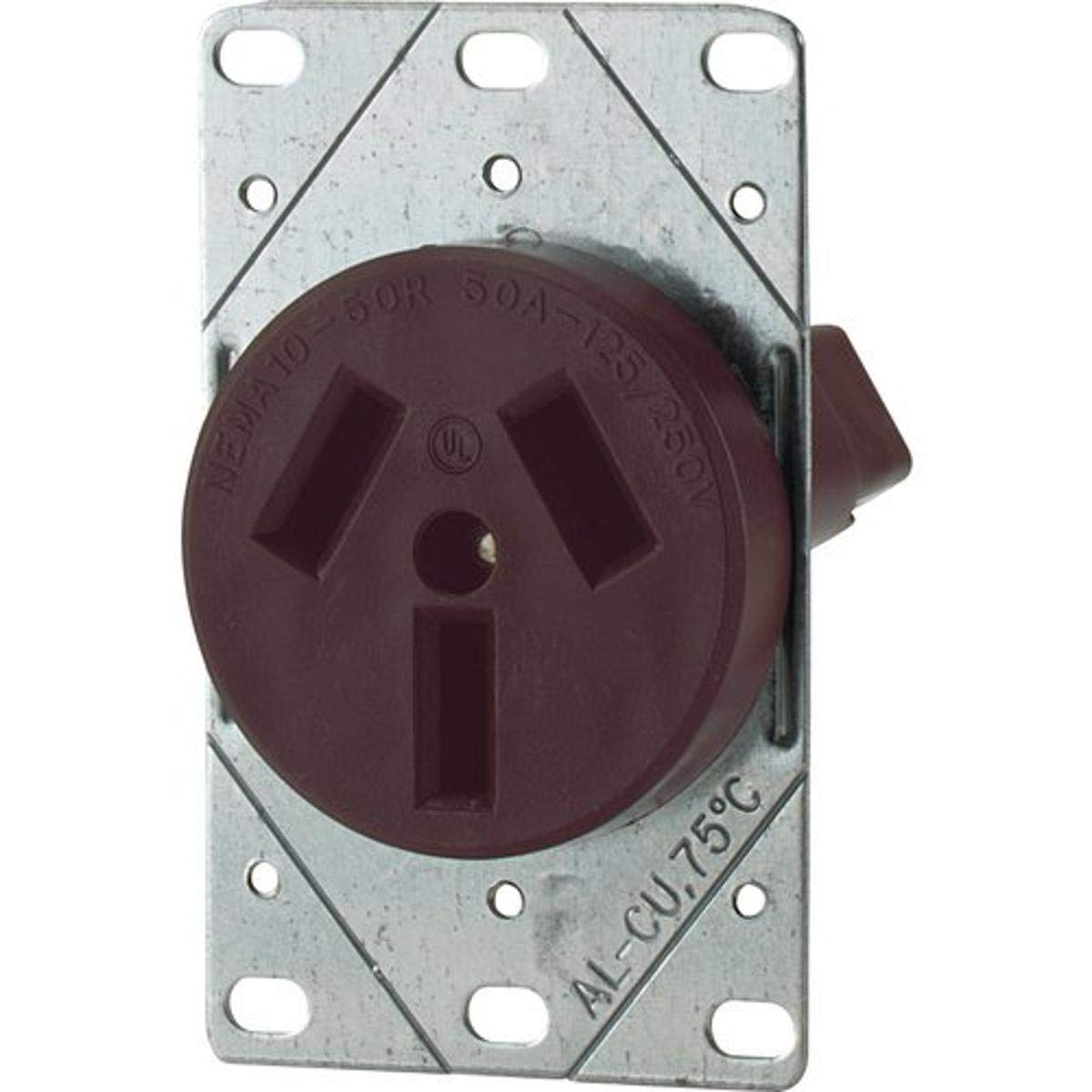

Eaton 32B-BOX Wall Plates 50 A

Product Description

The Eaton 32B-BOX commercial and industrial power receptacle features a heavy-duty design suitable for high amperage industrial or commercial power applications. This commercial grade flush receptacle includes a 3-pole, 3-wire non-grounding configuration and box, and is best matched with plug S80. It is NOM certified and cULus Listed to UL498 and UL943.

• Heavy-duty design and construction are ideal for any high amperage industrial or commercial power
• Commercial grade flush comes with 3-pole, 3-wire non-grounding and box
• Matches best with plus S80

Product Highlights

This Eaton power receptacle is designed for robust performance in demanding industrial and commercial settings, ensuring reliable power connectivity.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 32B-BOX

Technical Specifications

• Product Type: ELECTRICAL_OUTLET
• Manufacturer: EATON
• Brand: Eaton
• Model / MPN: 32B-BOX
• Number of Items: 1.0
• Number Of Poles: 3
• Number of Wires: 3
• NEMA Rating: NEMA 10-50R
• Voltage Rating: 125/250 VAC
• Temperature Rating: -4 to 158 deg F
• Amperage Rating: 50 A
• Grade: Commercial
• Material: Nylon
• Vendor SKU: 32B-BOX
• UPC: 032664198403
• Standard & Approvals: CSA Certified, NOM Certified, RoHS Complaint, UL Listed
• Product Name: Eaton power device receptacle
• Used with: S80
• Special features: Range
• Wiring method: Back
• Mounting method: Flush
• Connection type: Plug In
• Style: Power
• Allowable wire size: #12-4 AWG
• NEMA configuration: 10-50R
• Torque rating: 25 lbf-inch
• Design type: Receptacle
• Receptacle type: Three-pole, three-wire, non grounding
• Voltage: 250 Volts
• Total Power Outlets: 3
• Wiring Type: Back
• Operating Temperature: -20 to 75 deg C
• Mounting Type: Flush
• Suitable For: 80 Power Plug
• Port Type: Power
• Mounting Style: Flush
• NEMA: NEMA 10-50R
