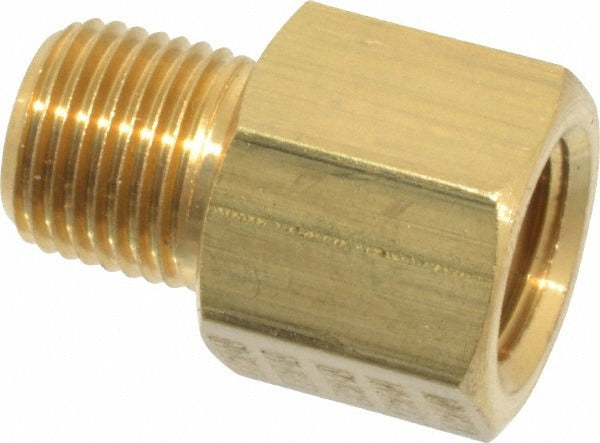

Eaton 3200X2 Straight Pipe Adapter 1/8 in Mnptf X Fnptf

Product Description

The EATON 3200X2 is a straight industrial pipe adapter designed to connect male and female NPT-style fittings in a single inline assembly. It features a 1/8 inch MNPTF male thread on one end and a 1/8 inch FNPTF female thread on the other, allowing techs to extend or transition threaded pipe runs without changing direction. This adapter carries a maximum working pressure of 1,200 psi and handles a temperature range from -65 degrees F to 250 degrees F, making it suitable for hydraulic, pneumatic, and fluid-system applications where a compact, reliable threaded connection is required. Licensed plumbers, pipefitters, and hydraulic system technicians are the primary installers.

This fitting is well-suited for residential and light commercial plumbing, as well as industrial fluid-transfer and pneumatic systems. Its straight configuration and MNPTF x FNPTF connection type make it a common choice when adding an inline threaded junction or adapting a component port to a pipe run. The 7/8 inch overall length and 9/16 inch hex size allow installation with standard open-end or combination wrenches in tight spaces.

Key Features

• Straight fitting profile for inline MNPTF-to-FNPTF thread adaptation
• 1/8 inch male NPT and 1/8 inch female NPT threads for secure, leak-resistant connections
• 1,200 psi maximum working pressure rating
• Operating temperature range: -65 degrees F to 250 degrees F
• 9/16 inch hex size for standard wrench installation
• Meets ASA, ASME, and SAE 130139 standards

Compatibility

Designed as an OEM-style replacement or standard service fitting for industrial, hydraulic, pneumatic, and plumbing systems using 1/8 inch NPT-threaded components and pipe runs.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified hydraulic technician. Depressurize and isolate the system fully before removing any existing fittings or installing this adapter. Apply thread sealant or PTFE tape in accordance with the system fluid type and applicable codes such as IPC or ASME B31 standards. Do not over-torque; hand-tighten and use the hex flats to snug the fitting without deforming the threads.
