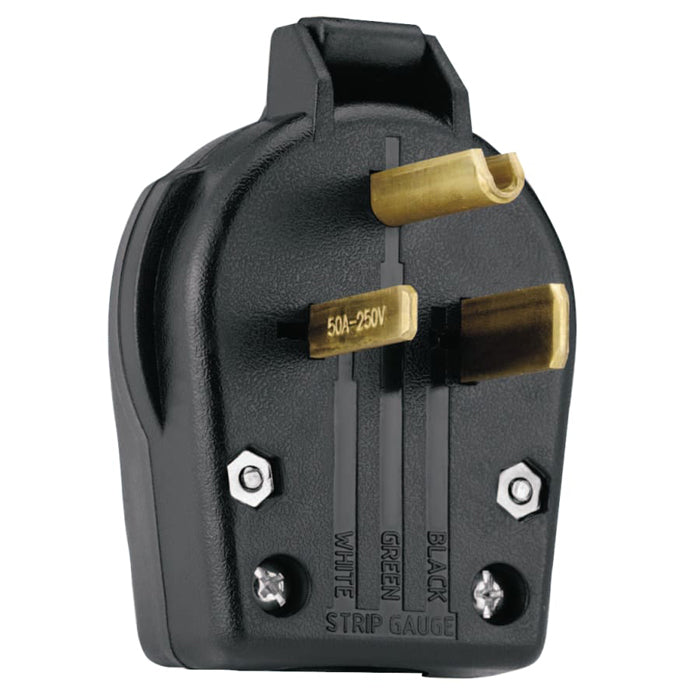

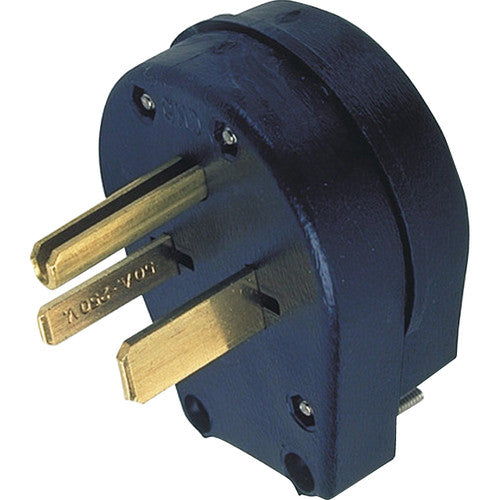

Eaton 309-S42-SP Arrow Hart Heavy-Duty Universal NEMA Power Plug 6-30P, 6-50P

Product Description

The EATON 309-S42-SP Arrow Hart heavy-duty universal NEMA power plug is designed for commercial, range, and dryer applications. Rated for 30A/50A and 250V, this plug features back wire connection and a universal angled body. It is constructed from black PVC and brass, and comes in a retail box.

• Non-grounding
• Heavy-duty industrial specification grade
• Universal angled body

Product Highlights

Heavy-duty universal NEMA power plug with non-grounding feature and universal angled body for various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 309-S42-SP
• Country of Origin: U.S.A.

Technical Specifications

• Product Name: Eaton Arrow Hart heavy-duty universal NEMA power plug
• Catalog Number: S42-SP
• UPC: 032664517846
• Product Length/Depth: 1.38 in
• Product Height: 3.37 in
• Product Width: 2.87 in
• Certifications: UL Listed
• Product Type: Heavy-duty universal NEMA power plug
• Device type: Plug
• Special features: Non-grounding
• Type: Angled Male Power Plug
• Amperage Rating: 30 A/50 A
• Voltage rating: 250V
• Contact material: Brass
• Features: Non-grounding
• Application: Commercial, range and dryer
• Device grade: Heavy-duty industrial specification grade
• Wiring method: Back wire
• Number of wires: 3
• Number of poles: Three-pole
• Style type: Power, Universal angled body
• Cord range: 1.10"
• Material: PVC
• Packaging type: Retail Box
• Color: Black
• Connection type: Screw
• Allowable wire size: #10-6 AWG
• NEMA configuration: 6-30P, 6-50P
• Torque rating: 20 lbf-inch
• Design type: Angled straight blade
• Face/body material: PVC
• Amps: 50 A
• NEMA Rating: 6-30P
• Voltage Rating: 250V AC
• Body Cover Material: PVC
• Cable/Wire Size [Max]: #10-6 AWG
• Country of Origin: MX
• Hazmat: NO
• No. of Contacts: 3
• Housing Color: Black
• Flange Type: Non-Flanged
