Eaton 2867-BOX Straight Blade Plug 125 VAC 15 A

Product Description

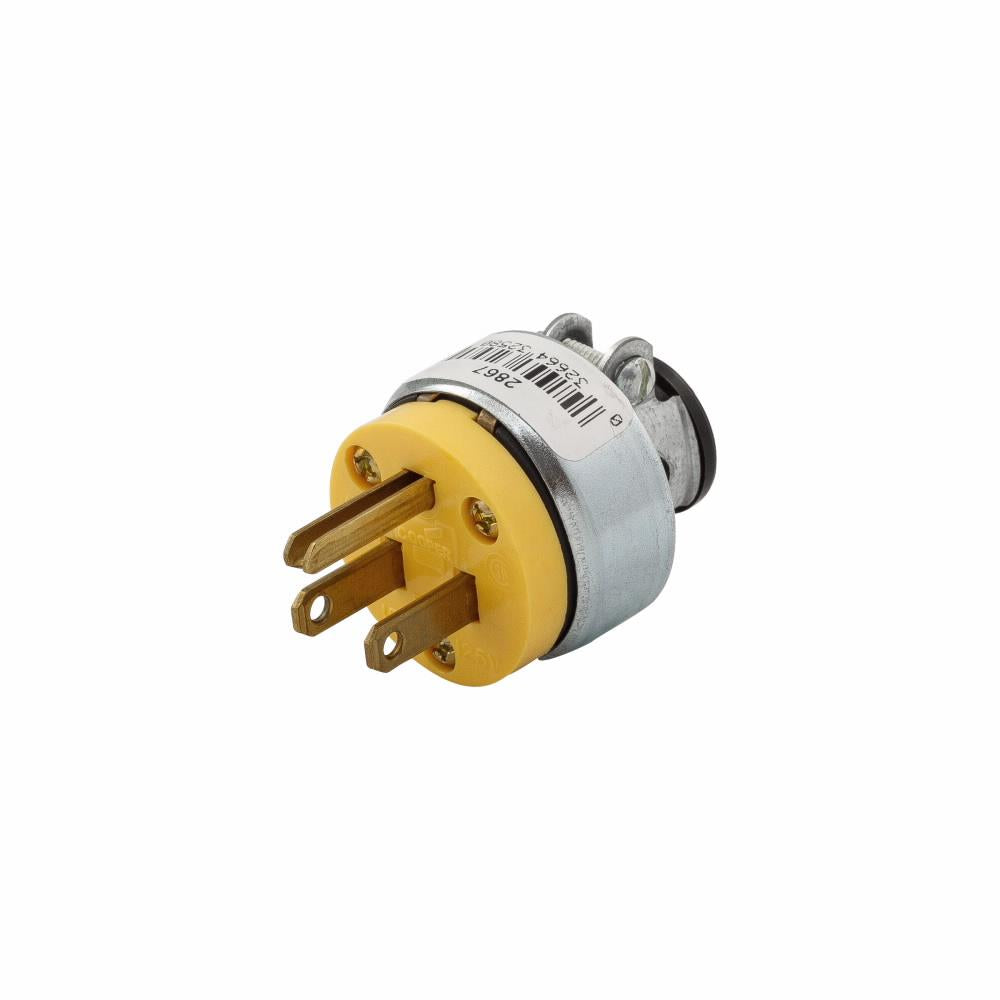

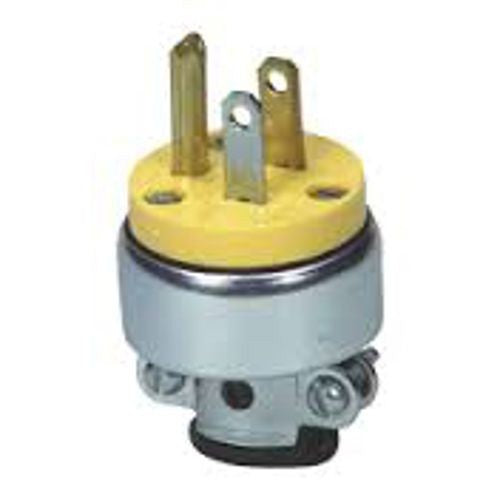

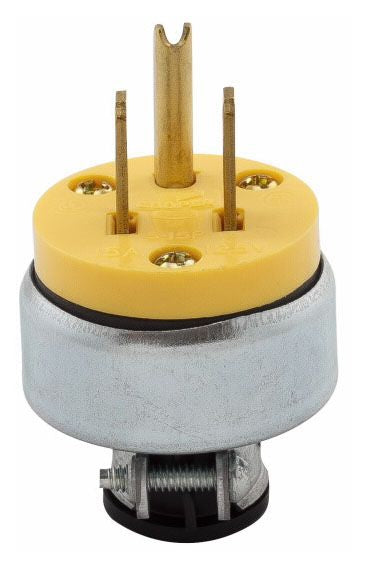

The EATON 2867-BOX straight blade plug is a grounding plug designed for 125 VAC, 15 A applications. This commercial/specification grade plug features a vinyl armored housing that resists abuse and is automatically grounded. It is suitable for cords with a diameter of 0.25 to 0.63 inches and utilizes back wire/screw terminals.

• Armored housing resists abuse and is automatically grounded
• Solid brass plug blades are firmly embedded in body
• Terminals in individual chambers to positively insulate conductors

Product Highlights

Durable and reliable, this straight blade plug is ideal for commercial and specification grade applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 2867-BOX
• Country of Origin: MEX

Technical Specifications

• Cord Diameter: 0.25 to 0.63 in
• Grade: Commercial/Specification
• Material: Vinyl
• NEMA Rating: NEMA 5-15
• Terminal Type: Back Wire/Screw
• Type: Grounding
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Connection Type: Screw
• Wiring Method: Back
• Wire Size: #18 to 12 AWG
• Contact Material: Brass
• RoHS Compliant: True
• NAFTA Compliant: True
• Packaging Type: Box
• Product Length/Depth: 1.519 in
• Product Height: 2.524 in
• Product Width: 1.519 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed NOM
• Product Type: Straight blade plug
• Device type: Plug
• Special features: Armored
• Application: Commercial
• Device grade: Commercial specification grade
• Style type: Straight body
• Cord range: 0.25-0.63"
• Allowable wire size: #18-12 AWG
• NEMA Configuration: 5-15P
• Torque rating: 15 lbf-inch
• Design type: Straight blade
• Face/body material: Armored vinyl
• Receptacle type: Two-pole, three-wire, grounding
• Manufacturer: Eaton
• Product Series: Vinyl Armored and Rubber Plugs
• Family Series: Eaton Plugs & Receptacles, Vinyl Armored and Rubber Plugs Series
• Body Type: Straight
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Number of Outlets: 1
• Input Voltage: 120 V
• Output Voltage: 125 V
• Maximum Input Current: 11-15 A
• Smart Home Compatibility: Not Applicable/Not Available
• Smart Home Protocol: Not Applicable/Not Available
