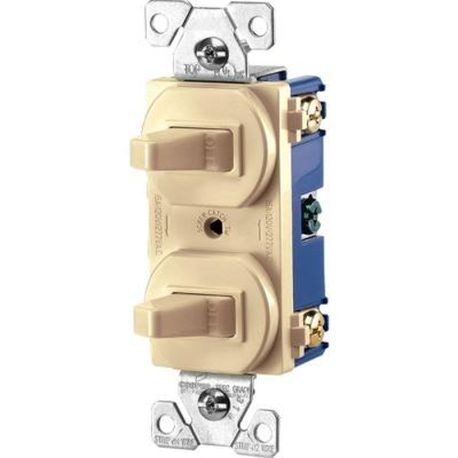

EATON 271V-BOX EATON Arrow Hart 271V-SP-L Duplex Toggle Combination Switch 15 A at 120 VAC 1 Poles

Product Description

The EATON 271V-BOX is a duplex toggle combination switch with a rating of 15 amps at 120 VAC. This switch is suitable for commercial applications and offers reliable performance.

• Back and side wiring capability
• Grounding terminal screw standard
• Thick steel mounting strap, zinc-plated for corrosion resistance

Product Highlights

This combination switch features a durable thermoplastic body that is virtually unbreakable, and offers ease of installation with combination slot and Phillips head mounting screws.

Product Information

Standard Information

• Manufacturer: EATON
• Brand: EATON

Technical Specifications

• Electrical Rating: 15 A 120 VAC
• Number of Poles: 1
• Operating Cycles: 30000
• Environmental Conditions: -20 to 60 deg C
• Material: Thermoplastic
• Color: Ivory
• Size: 4.19 inches H x 1.3 inches W x 1.08 inches D
• Applications: Commercial
• UPC: 032664160400
• GTIN: 00032664160400
• UNSPSC: 39122232
• Standard & Approvals: CSA C22.2 File No. 10016, cULus Listed, RoHS Complaint
