Product Description

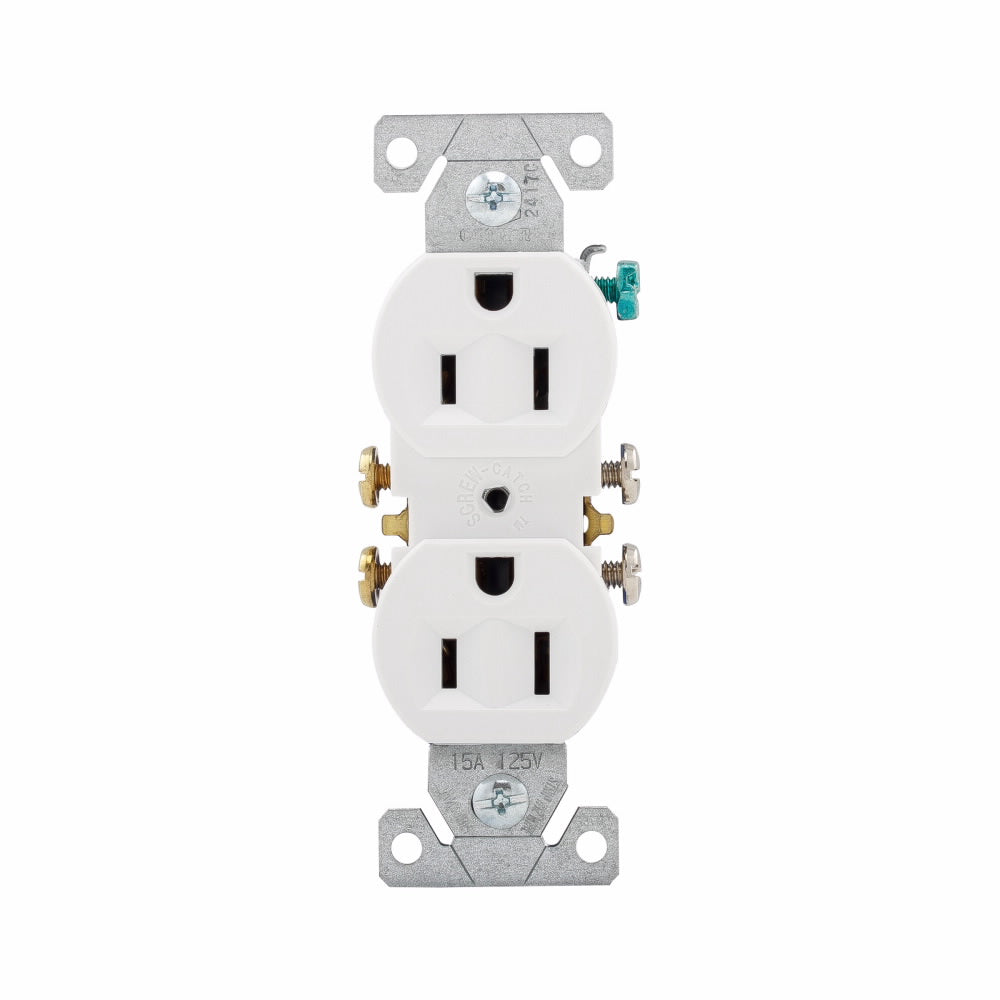

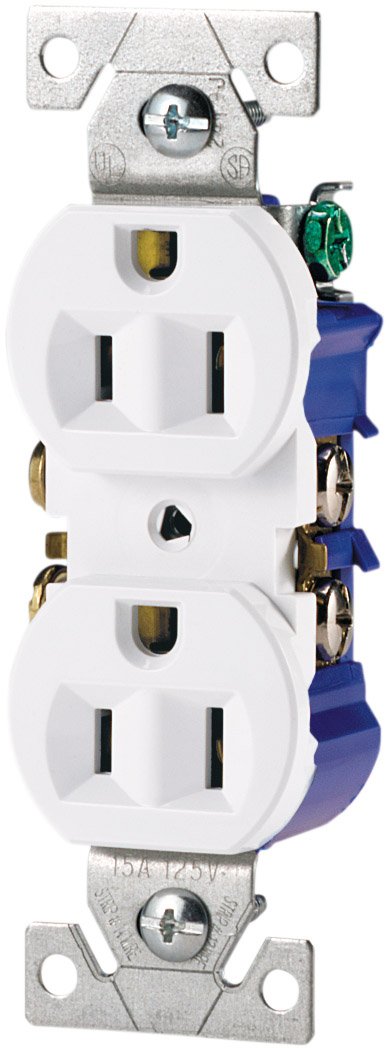

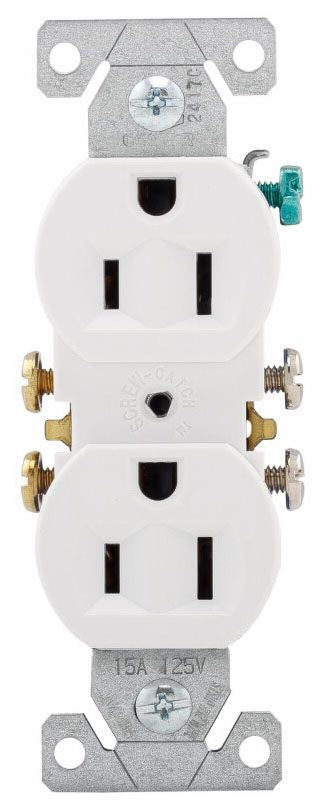

The Eaton 270W is a standard duplex receptacle featuring longer, wider straps providing more contact area to wall board, virtually eliminating floating installations. It has a patented built-in wire stripper for #14 and #12 wire to speed installation and a patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson head tools.
- Features a patented built-in wire stripper for 14 and 12 AWG wire to speed installation
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Side wire terminals accept up to 10 AWG solid wire
Product Highlights
The Eaton 270W receptacle is ideal for residential applications. It is a 15A, 125V duplex receptacle with push-in and screw terminals.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 270W
-
Country of Origin: USA
Technical Specifications
-
Type: Duplex
-
Grade: Residential/Standard
-
Material: Thermoplastic
-
NEMA Rating: NEMA 5-15R
-
Temperature Rating: -20 to 60 deg C
-
Terminal Type: Push-In/Screw
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
Number of Poles: 2
-
Number of Wires: 3
-
Receptacle Type: Straight Blade Duplex
-
Wiring: Side and push
-
Mounting Type: Flush
-
Contact Material: Brass
-
Torque Rating: 14 Inch-Pound
-
Flammability Rating: UL 94V-2
-
Applicable Standard: Federal Specification 6233-01, ANSI, NEC 406.12, NAFTA
-
RoHS Compliant: True
-
Outlet Type: Duplex
-
Connection: Screw
-
Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
-
NEMA Configuration: 5-15R
-
Design type: Straight blade
-
Face/body material: Impact-resistant thermoplastic
-
Receptacle type: Duplex
-
Compliances: RoHS Compliant NAFTA
-
Certifications: UL NOM Federal Specification Classification 6233 01
-
Number of Phases: 1
-
Model: 270W-10-LW
-
Resistance Properties: Impact Resistant, Tamper Resistant
-
Current Type: AC
-
Number of Outlets: 2
