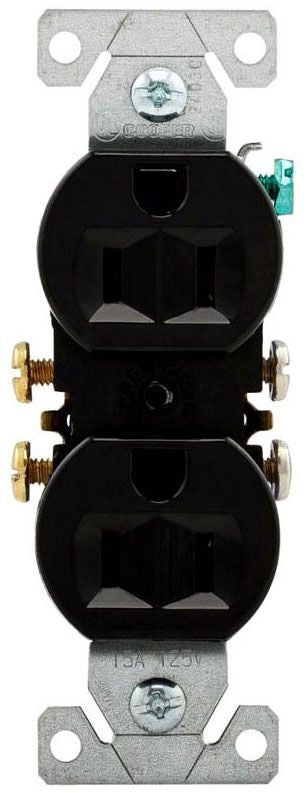

Eaton 270BLK Straight Blade Duplex Receptacle 125 VAC 15 A 2 Poles

Product Description

The EATON 270BLK is a straight blade duplex receptacle. This standard grade receptacle features longer, wider straps providing more contact area to wall board, virtually eliminating floating installations. It has a thermoplastic face and back body and tri-combo screws that accept slotted, Phillips, and Robertson-head tools.

• Longer, wider straps provide 40% more contact area to wall board
• Virtually eliminates floating installations
• Side wire terminals accept up to #10 solid or stranded wire

Product Highlights

The EATON 270BLK duplex receptacle is suitable for commercial and residential applications. It features a built-in wire stripper and looper for easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 270BLK
• Country of Origin: USA

Technical Specifications

• Amperage: 15 A
• Voltage: 125 VAC
• Poles: 2
• Wires: 3
• Device type: Receptacle
• Type: Duplex receptacle
• Amperage Rating: 15A
• Voltage rating: 125V
• Contact material: Brass
• Application: Commercial/residential
• Device grade: Standard grade
• Wiring method: Side and push
• Number of wires: 3
• Mounting method: Flush
• Number of poles: Two-pole
• Style type: Standard
• Material: Thermoplastic
• Packaging type: Core pack
• Connection type: Screw
• Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA configuration: 5-15R
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Impact-resistant thermoplastic
• Receptacle type: Duplex
• NEMA Rating: NEMA 5-15R
• Temperature Rating: -20 to 60 deg C
• Standard & Approvals: CSA Certified, NOM Certified, RoHS Complaint, UL Listed
• Terminal Type: Side and Push-In Wired
• Grade: Standard
• Current Rating: 15 A
• Operating Temperature: -4 to 140 deg F
• Wire Size: 14 to 10 AWG
• Wiring Type: Grounding Push Side
